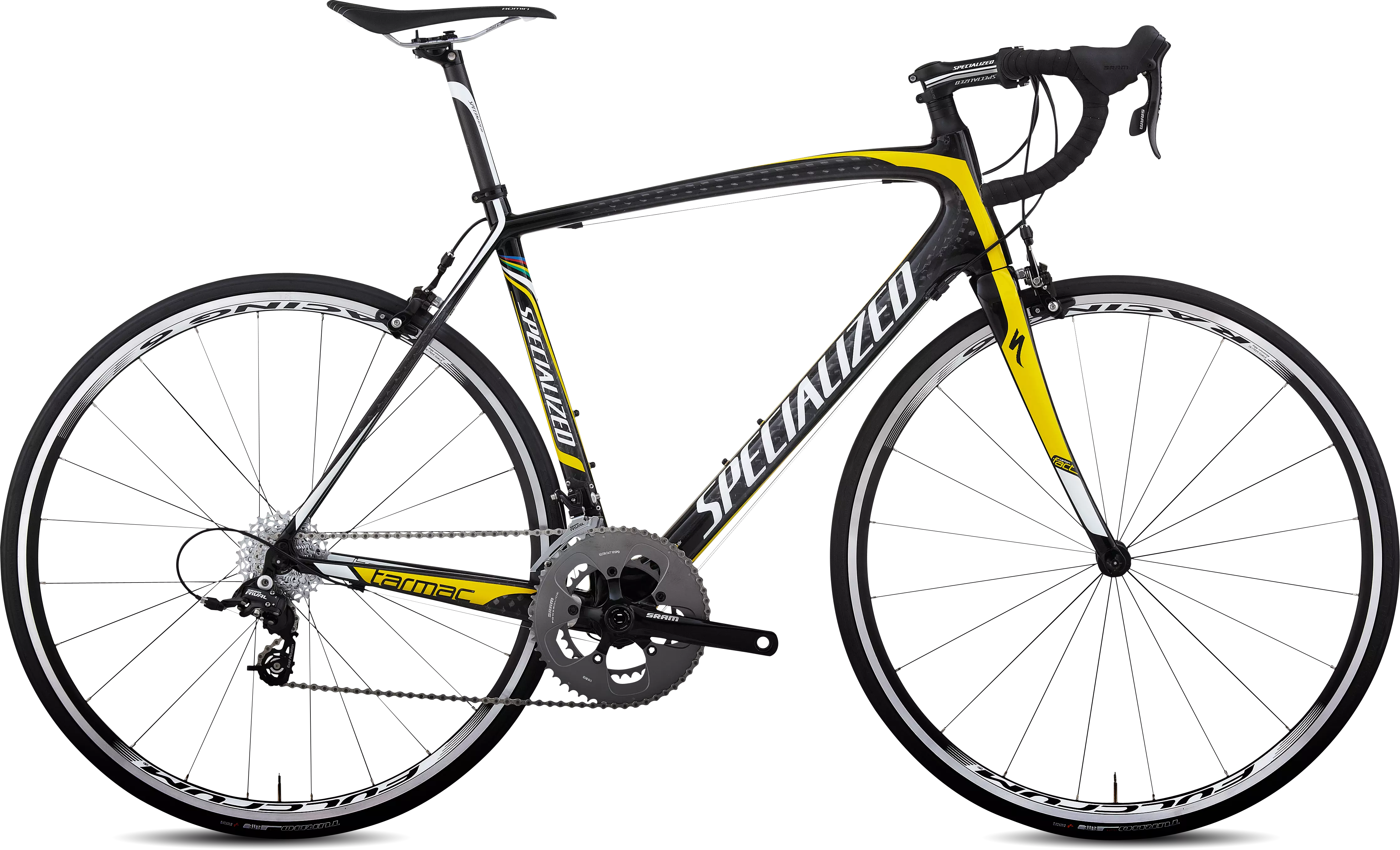

Tarmac Elite Rival Mid-Compact
$2,750.00
Part No.

Tarmac Elite Rival Mid-Compact

$2,750.00
Part No.  35180
load-spinner
Tarmac Elite Rival Mid-Compact
Overview
Technical Specifications
Geometry
Reviews
Whether it's winning the Tour de France or a city-limit sprint, Tarmac is made for racing, with its powerful acceleration and razor-sharp handling. The Elite features SRAM Rival components plus Fulcrum wheels, keeping the performance and durability up and the cost down.
  • FACT IS 8r carbon frame with tapered head tube and elliptical seatstays is race-ready stiff and fast without sacrificing compliance
  • The FACT carbon fork is light, stiff, and compliant with a tapered steerer
  • Adjustable four-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • New Specialized Tarmac Comp alloy handlebar is stiff, tough, and light for serious performance
  • SRAM Rival DoubleTap shifters for simple intuitive shifting and reach adjustment for perfect fit
  • FACT carbon Comp seatpost helps absorb road vibrations but remains stiff and efficient
  • Specialized BG Romin Comp features a shaped profile for max power and hollow Cr-Mo rails for durability

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET 1-1/8"" upper and 1-1/2"" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer, w/ 20mm of spacers
FORK Specialized FACT carbon, full monocoque, OS race for 1-1/2"" bearing
FRAME Specialized FACT 8r carbon, FACT IS construction, compact race design, 1-1/2"" lower bearing, OSBB
WHEELS
REAR WHEEL Fulcrum Racing 6
INNER TUBES Lightweight, presta
FRONT TIRE Specialized Turbo Elite w/BlackBelt protection, 100 TPI, aramid bead, 700x23c
REAR TIRE Specialized Turbo Elite w/BlackBelt protection, 100 TPI, aramid bead, 700x23c
FRONT WHEEL Fulcrum Racing 6
DRIVETRAIN
BOTTOM BRACKET OS integrated, sealed bearings
CHAIN KMC X10 CP
CRANKSET SRAM S350, BB30
CASSETTE SRAM Apex, 10-speed, 11-28t
SHIFT LEVERS SRAM Rival DoubleTap, 10-speed
FRONT DERAILLEUR SRAM Rival
CHAINRINGS 52/36
REAR DERAILLEUR SRAM Rival
COCKPIT
SADDLE Body Geometry Romin Comp, hollow Cr-Mo rails
TAPE Specialized S-Wrap, w/ gel
SEATPOST Specialized Comp carbon, 27.2mm
HANDLEBARS New Specialized Tarmac Comp, alloy
STEM New CompSet 6061 alloy, cone head bolt, 12-degree, 4-degree shim 31.8mm
BRAKES
BRAKE LEVERS SRAM Rival
FRONT BRAKE SRAM Apex
REAR BRAKE SRAM Apex
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors

Geometry

Geometry Chart

Tarmac - Geometry

  490 520 540 560 580 610
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm
Wheelbase 970mm 970mm 981mm 989mm 1007mm 1019mm
Stack 504mm 526mm 543mm 564mm 591mm 612mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 586mm 594mm 610mm 618mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm
