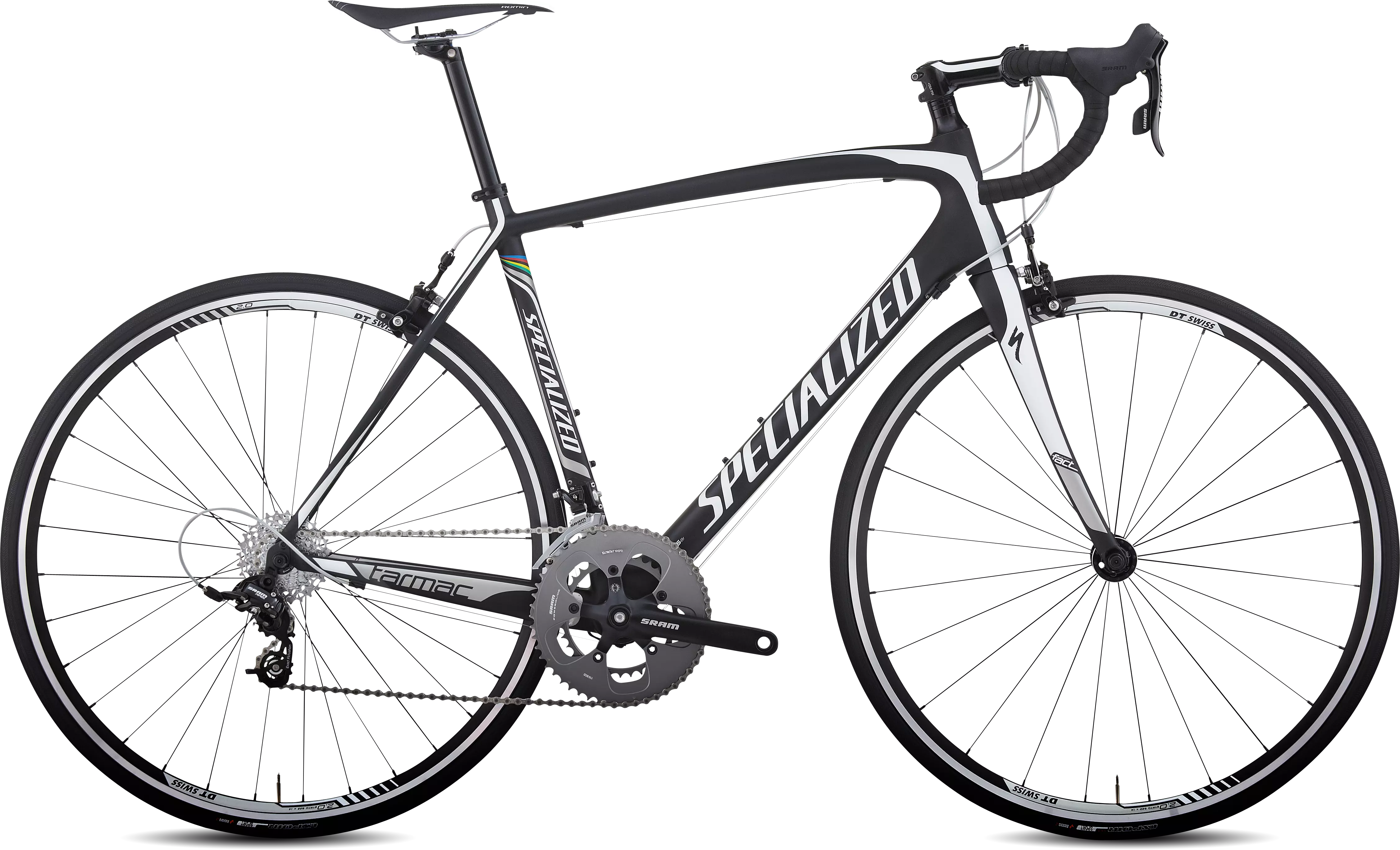

Tarmac Apex Mid-Compact
Part No.

Tarmac Apex Mid-Compact

Part No.
load-spinner
Tarmac Apex Mid-Compact
Overview
Technical Specifications
Geometry
Reviews
Whether it's winning the Tour de France or a city-limit sprint, Tarmac is made for racing, with its powerful acceleration and razor-sharp handling. SRAM Apex components and our new DT-Axis 2.0 offer high performance and low cost.
  • FACT IS 8r carbon frame with tapered head tube and elliptical seatstays is race-ready stiff and fast without sacrificing compliance
  • The FACT carbon fork is light, stiff, and compliant with a tapered steerer
  • New Specialized Tarmac Comp alloy handlebar is stiff, tough, and light for serious performance
  • SRAM Apex 10-speed DoubleTap shifters offer simple intuitive shifting and reach adjustment for perfect fit
  • Specialized BG Romin Comp features a shaped profile for max power and hollow Cr-Mo rails for durability
  • Specialized Sport alloy seatpost keeps the weight down and durability up

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET SRAM Power Spline BB
CHAIN KMC X10 CP
CRANKSET SRAM S150
SHIFT LEVERS SRAM Apex DoubleTap, 10-speed
FRONT DERAILLEUR SRAM Apex
CASSETTE SRAM Apex, 10-speed, 11-28t
CHAINRINGS 52/36
REAR DERAILLEUR SRAM Apex
WHEELS
REAR WHEEL DT Axis 2.0
INNER TUBES Lightweight, presta
FRONT TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
REAR TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
FRONT WHEEL DT Axis 2.0
COCKPIT
SADDLE Body Geometry Romin Comp, hollow Cr-Mo rails
TAPE Specialized S-Wrap, w/ gel
SEATPOST New Specialized Sport, alloy, 27.2mm
HANDLEBARS New Specialized Tarmac Comp, alloy
STEM Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
BRAKES
FRONT BRAKE SRAM Apex
BRAKE LEVERS SRAM Apex
REAR BRAKE SRAM Apex
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors
FRAMESET
HEADSET 1-1/8"" upper and 1-1/2"" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer, w/ 20mm of spacers
SEAT BINDER Forged alloy, 32.6mm
FORK Specialized FACT carbon, full monocoque, OS race for 1-1/2"" bearing
FRAME Specialized FACT 8r carbon, FACT IS construction, compact race design, 1-1/2"" lower bearing, threaded BB

Geometry

Geometry Chart

- Geometry

  490.0 520.0 540.0 560.0 580.0 610.0
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm
Stack 504mm 526mm 543mm 564mm 591mm 612mm
Wheelbase 970mm 970mm 981mm 989mm 1007mm 1019mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 586mm 594mm 610mm 618mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm
