SX Trail Frame
Part No.

SX Trail Frame

Part No.
SX Trail Frame
Technical Specifications

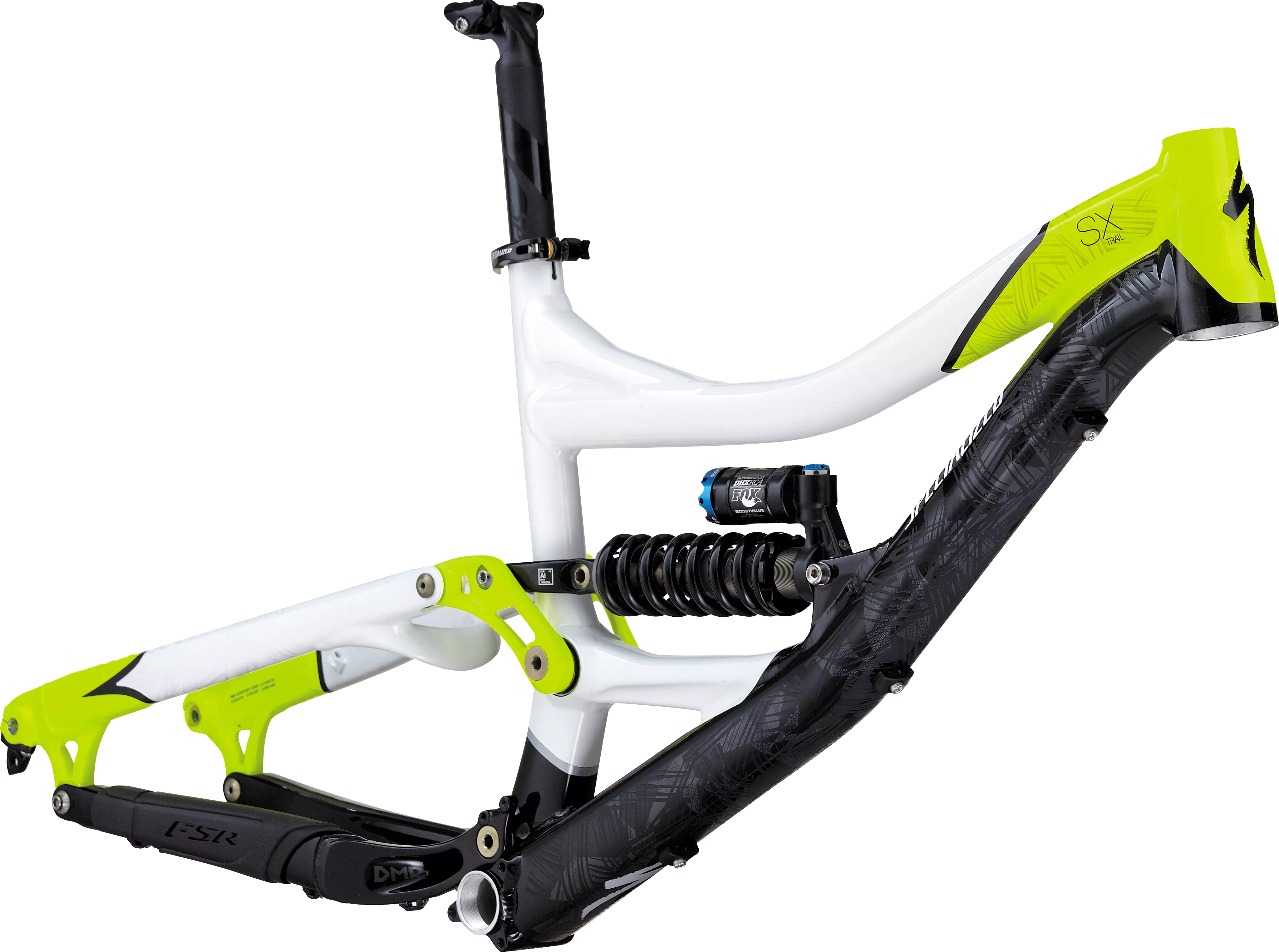

Built up your very own bike park shred toy with the 180mm-travel SX Trail frame, equipped with a Fox DHX RC4 shock.
  • M5 manipulated alloy frame with 180mm of travel, ORE tubing, ISCG mount, 142mm dropouts, full-cartridge bearing pivots and replaceable derailleur hanger creates a tough and maneuverable bike for going big in the bike park
  • Fox DHX RC4 coil shock features externally adjustable high and low-speed compression, and bottom out control for maximum control on technical terrain

Technical Specifications

REAR SHOCK Fox DHX RC4, coil over w/piggy back, rebound and High/Low speed compression and bottom-out control adj., 8.5x2.5"", S:450, M:500, L:550
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, others: 400mm
SEAT BINDER 34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
FRAME M5 manipulated alloy, ORE TT/DT, tapered and forged HT, ISCG mount, 142mm dropouts, full cartridge bearing pivots and shock yoke, replaceable derailleur hanger, derailleur guard, 180mm travel


Geometry Chart

- Geometry

  S M L
Crank Length 170mm 170mm 170mm
Stem Length 40mm 40mm 40mm
Seatpost Length 300mm 300mm 300mm
Handlebar Width 750mm 750mm 750mm
Reach 412mm 429mm 453mm
Stack 594mm 594mm 594mm
Chainstay Length 419mm 419mm 419mm
Top Tube Length (Actual) 543mm 556mm 575mm
Ground-Top 950mm 950mm 950mm
Top Tube Length (Horizontal) 576mm 594mm 617mm
Head Tube Angle - Low Setting 65.5° 65.5° 65.5°
Standover Height 731mm 734mm 740mm
Head Tube Height 112mm 112mm 112mm
Wheel Base 1159mm 1177mm 1200mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5°
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Seat Tube Length - Center to Top 394mm 419mm 458mm
Bottom Bracket Height - Low Setting 356mm 356mm 356mm
