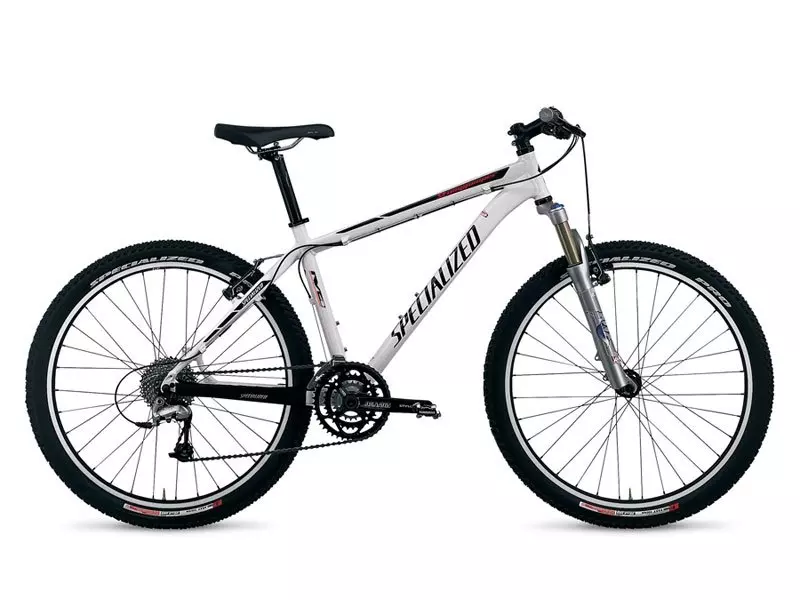

EXPERIENCE: COMPETITIVE XC Some prefer the purist approach to offroad riding on a lightweight hardtail. They're driven to be the fastest: climbing more quickly, attacking sprints, and punishing anyone still hanging on their wheel. Whether competing on a closed race course, taking a long ride through the canyons, or blasting through a favorite local loop, competitive-focused hardtails always deliver a true connection to the ground, unparalleled efficiency and light weight, and explosive sprinting power. The Stumpjumper has been answering this need for over 25 years, and still remains the ride of choice of champions worldwide. The orginal and still the best.
  • All new 06 M4 SJ, M4 alloy ORE DT & TT, fully manipulated TT, SS, CS, Asymmetric Mono-stay seatstays, disc and rim brake compatible, replaceable derailleur hanger
  • Fox F90RL, 90mm travel, air spring, compression, rebound adjustment, lock out, alloy steerer
  • 3D forged CNC machined stem with 4-bolt 31.8mm OS clamp matched to Specialized XC Flat handlebars
  • Avid SD-5R cantilever brakes with cartridge pads and lightweight compressionless housing
  • Shimano 27-speed LX/XT drive train
  • Truvativ Stylo, 2-piece crankset
  • Shimano SPD 520, clipless pedals
  • Mavic X317 rims with machined sidewalls and eyelets matched to Specialized Stout/Shimano M-525 disc compatible hubs and DT Swiss 1.8mm stainless, alloy nipples
  • Specialized Fast Trak Pro 26x2.0" tires with aramid bead, dual compound, 120TPI
  • Specialized Body Geometry Rival saddle, hollow Cr-Mo rails
  • 2014 butted alloy seatpost

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-971 with Power Link
BOTTOM BRACKET Truvativ GXP XR
CRANKSET Truvativ Stylo, 2-peice
FRONT DERAILLEUR Shimano M-580 LX, 34.9 clamp, top swing, dual pull
SHIFT LEVERS Shimano M-570 LX, 9-speed
CASSETTE Shimano HG50, 11-34t
CHAINRINGS 22S/32A/44A
REAR DERAILLEUR Shimano M-750 XT, long cage, standard spring
SUSPENSION
FORK Fox F90RL, 90mm travel, air spring, compression, rebound adjustment, lock out, alloy steerer
REAR SHOCK None
WHEELS
FRONT HUB Specialized Stout disc, sealed cartridge bearing, high/low flange, 32 hole
REAR HUB Shimano M-525 disc, QR
SPOKES DT Swiss 1.8mm stainless, alloy nipples
FRONT TIRE Specialized Fast Trak Pro 26x2.0"", aramid bead, dual compound, 120TPI
RIMS Mavic X317, black, machined sidewalls, eyelets
REAR TIRE Specialized Fast Trak Pro 26x2.0"", aramid bead, dual compound, 120TPI
COCKPIT
SADDLE Specialized Body Geometry Rival, hollow Cr-Mo rails
STEM 3D forged CNC machined, 4-bolt, 31.8mm OS clamp, 8 degree rise
HANDLEBARS Specialized XC Flat 31.8mm OS bar, 6066 butted alloy, 5 degree backsweep, 580mm width
GRIPS Specialized MTB grip, black/charcoal
BRAKES
FRONT BRAKE Avid SD-5R cantilevers, cartridge pads, lightweight compressionless housing
BRAKE LEVERS Avid FR-5
REAR BRAKE Avid SD-5R cantilevers, cartridge pads, lightweight compressionless housing
ACCESSORIES
PEDALS Shimano SPD 520, clipless
FRAMESET
HEADSET 1 1/8"" threadless, 10mm insertion alloy cups, sealed cartridge bearing
SEAT BINDER 34.9mm clamp, single bolt
FRAME All new 06 M4 SJ Hardtail, M4 alloy ORE DT & TT, fully manipulated TT, SS, CS, Asymmetric Mono-stay seatstays, disc mount, replaceable derailleur hanger

Geometry

Geometry Chart

- Geometry

  13.5 15.5 17 18 19 21 13.5W 15.5W 17W 18W
Crank Length 170mm 170mm 173mm 173mm 175mm 175mm 170mm 170mm 173mm 175mm
Stem Length 90mm 100mm 110mm 120mm 120mm 130mm 90mm 90mm 100mm 110mm
Seatpost Length 300mm 350mm 350mm 350mm 350mm 350mm 300mm 350mm 350mm 350mm
Handlebar Width 600mm 600mm 600mm 600mm 600mm 600mm 600mm 600mm 600mm 600mm
Bottom Bracket Drop 36mm 36mm 36mm 36mm 36mm 36mm 36mm 36mm 36mm 36mm
Chainstay Length 424mm 424mm 424mm 424mm 424mm 424mm 424mm 424mm 424mm 424mm
Front Center 592mm 606mm 637mm 652mm 667mm 693mm 592mm 596mm 622mm 647mm
Seat Tube Angle 73° 73° 73° 73° 73° 73° 73.5° 73° 73° 73°
Rake 39mm 39mm 39mm 39mm 39mm 39mm 39mm 39mm 39mm 39mm
Head Tube Angle 70.5° 71° 71° 71° 71° 71° 70.5° 71° 71° 71°
Head Tube Length 100mm 100mm 110mm 110mm 120mm 140mm 100mm 100mm 110mm 120mm
Top Tube Length (Horizontal) 535mm 555mm 585mm 600mm 615mm 640mm 530mm 545mm 570mm 595mm
Seat Tube Length, Center to Top 343mm 394mm 432mm 457mm 483mm 533mm 343mm 394mm 432mm 457mm
Standover Height 738mm 761mm 782mm 793mm 810mm 843mm 735mm 758mm 781mm 798mm
Trail 89mm 85mm 85mm 85mm 85mm 85mm 89mm 85mm 85mm 85mm
Seat Tube Length, Center to Center 274mm 324mm 362mm 387mm 413mm 463mm 273mm 324mm 362mm 388mm
Wheel Base 1013mm 1028mm 1058mm 1073mm 1089mm 1115mm 1013mm 1018mm 1043mm 1069mm
Bottom Bracket Height 268mm 268mm 268mm 268mm 268mm 268mm 268mm 268mm 268mm 268mm
