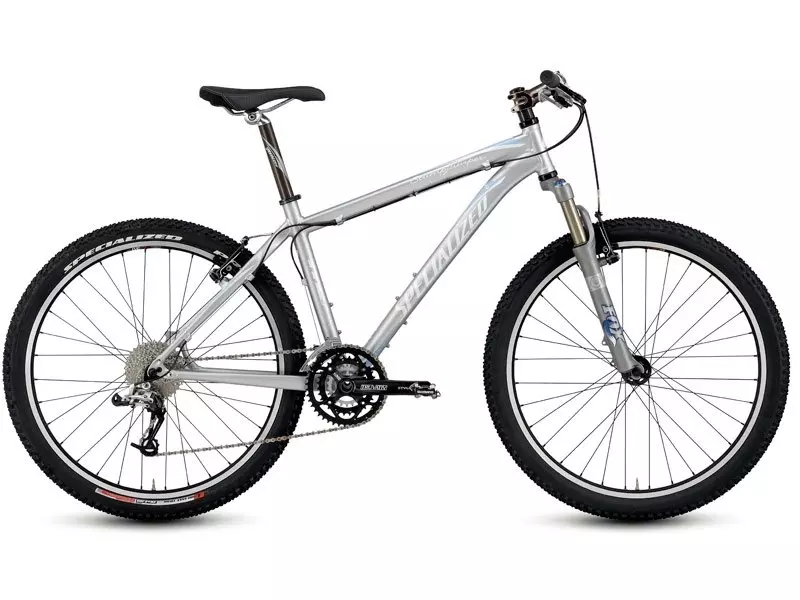

Stumpjumper Women's | Specialized.com

Technical Specifications

FRAMESET

FRAME	M4 alloy hardtail, Women's geometry, fully manipulated DT, TT, SS, CS, ST w/ Mono-stay seatstays, ORE DT/TT, disc mount, replaceable derailer hanger
HEADSET	1 1/8"" Threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing
SEAT BINDER	7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

FORK	Fox F90 RL 90mm, air spring, rebound/compression adj w/ lock out, alloy steerer

WHEELS

RIMS	Mavic X317, 26"", black w/eyelets, 32h
FRONT HUB	Specialized Stout disc, sealed cartridge bearing, high/low flange, 32h
REAR HUB	Shimano M-525 disc, 32h, alloy QR
SPOKES	DT Swiss 1.8mm stainless, alloy nipples
FRONT TIRE	Specialized Fast Trak Pro 26x2.0"", 120TPI, aramid bead, dual compound
REAR TIRE	Specialized Fast Trak Pro 26x2.0"", 120TPI, aramid bead, dual compound

DRIVETRAIN

FRONT DERAILLEUR	Shimano M581 LX, 34.9mm clamp, bottom swing, dual pull
REAR DERAILLEUR	SRAM X-9, 9-speed, long cage
SHIFT LEVERS	SRAM X-7, aluminum trigger 9-speed
CHAIN	SRAM PC-951 w /Power Link
CRANKSET	Truvativ Stylo, 2pc crank/BB
CHAINRINGS	22S/32A/44A 4mm thick outer, 4 bolt 104/64mm
BOTTOM BRACKET	Truvativ GXP, sealed outboard cartridge bearing

COCKPIT

STEM	Specialized adjustable rise, OS 31.8, 3D forged w/CNC finish
HANDLEBARS	Specialized XC flat 31.8mm OS bar, 2014 butted alloy, 5 degree backsweep, 600mm width
SADDLE	Specialized BG Women's, hollow Cro-Mo rails

BRAKES

FRONT BRAKE	Avid SD-5R, cantilevers, cartridge pads, lightweight compressionless housing
REAR BRAKE	Avid SD-5R, cantilevers, cartridge pads, lightweight compressionless housing
BRAKE LEVERS	Avid FR-5

ACCESSORIES

PEDALS

Shimano M-520 SPD

* Specifications are subject to change without notice

Manual Downloads

How to Lube a Chain

Specialized Bicycle Owner's Manual (All Languages)

Specialized Bicycle Owner's Manual Addendum: Riding With Kids

How to Fix a Flat

How to Fix a Dropped Chain

- Geometry

Geometry

13.5 15.5 17 18 19 21 13.5W 15.5W 17W 18W

	13.5	15.5	17	18	19	21	13.5W	15.5W	17W	18W
Crank Length	170mm	170mm	175mm	175mm	175mm	175mm	170mm	170mm	170mm	175mm
Stem Length	75mm	75mm	90mm	105mm	105mm	120mm	75mm	75mm	90mm	90mm
Seatpost Length	350mm	350mm	350mm	350mm	400mm	400mm	350mm	350mm	350mm	350mm
Handlebar Width	600mm	600mm	600mm	600mm	600mm	600mm	600mm	600mm	600mm	600mm
Bottom Bracket Drop	36mm	36mm	36mm	36mm	36mm	36mm	36mm	36mm	36mm	36mm
Chainstay Length	424mm	424mm	424mm	424mm	424mm	424mm	424mm	424mm	424mm	424mm
Front Center	592mm	606mm	637mm	652mm	672mm	693mm	592mm	596mm	622mm	647mm
Seat Tube Angle	73°	73°	73°	73°	73°	73°	73.5°	73°	73°	73°
Rake	39mm	39mm	39mm	39mm	39mm	39mm	39mm	39mm	39mm	39mm
Head Tube Angle	70.5°	71°	71°	71°	71°	71°	70.5°	71°	71°	71°
Head Tube Length	100mm	100mm	110mm	110mm	130mm	150mm	100mm	100mm	110mm	120mm
Top Tube Length (Actual)	525mm	535mm	561mm	576mm	595mm	617mm	523mm	526mm	547mm	571mm
Top Tube Length (Horizontal)	535mm	555mm	585mm	600mm	620mm	640mm	530mm	545mm	570mm	595mm
Seat Tube Length, Center to Top	342.9mm	393.7mm	431.8mm	457.2mm	482.6mm	533.4mm	342.9mm	393.7mm	431.8mm	457.2mm
Standover Height	714mm	738mm	759mm	770mm	792mm	825mm	711mm	735mm	758mm	775mm
Trail	79mm	76mm	76mm	76mm	76mm	76mm	79mm	76mm	76mm	76mm
Seat Tube Length, Center to Center	274mm	324mm	362mm	387mm	413mm	463mm	273mm	324mm	362mm	388mm
Wheel Base	1013mm	1028mm	1058mm	1073mm	1094mm	1115mm	1013mm	1018mm	1043mm	1069mm
Bottom Bracket Height	304mm	304mm	304mm	304mm	304mm	304mm	304mm	304mm	304mm	304mm
