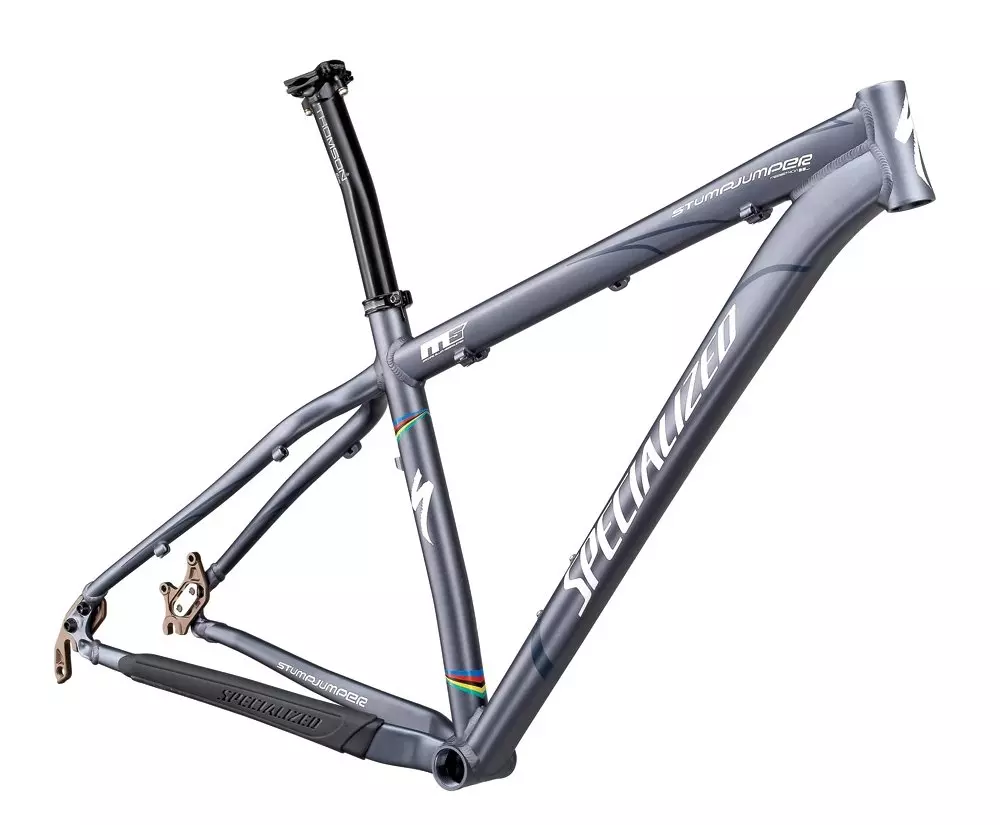

Stumpjumper Marathon 29 Frame
Overview
Technical Specifications
Geometry
Reviews
STILL LEAVING ITS COMPETITION IN THE DUST after decades in production, the Stumpjumper® Hardtail makes no apologies for being the leanest, lightest (some models are under 20 lbs.) and most precision hardtail on the market. Tradition works.
  • A 29" wheel version of our classic. The fully manipulated M5 alloy frame delivers superior ride quality, while the shared tube mono-stays increase lateral rigidity, and special forged dropouts let you switch to single speed.

Technical Specifications

COCKPIT
SEATPOST Thomson Elite Setback w/ 12 degree clamp, 15.5/17/18"": 367mm, others: 410mm
FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/bolt, 34.9mm clamp ID, black
FRAME SJ HT 29er, M5 Manipulated Alloy frame, butted ORE DT/TT, shared tube Mono-stay seatstays, forged adjustable dropouts for multi speed or SS, disc only

Geometry

Geometry Chart

- Geometry

  15.5 17 18 19 21 23
Crank Length 170mm 175mm 175mm 175mm 175mm 175mm
Stem Length 75mm 90mm 105mm 105mm 120mm 120mm
Seatpost Length 350mm 350mm 350mm 400mm 400mm 400mm
Handlebar Width 600mm 600mm 600mm 600mm 600mm 600mm
Chainstay Length 440mm 440mm 440mm 440mm 440mm 440mm
Top Tube Length (Actual) 553mm 566mm 576mm 590mm 614mm 637mm
Top Tube Length (Horizontal) 565mm 590mm 605mm 620mm 645mm 665mm
Head Tube Angle - Low Setting 70.5° 71° 71° 71° 71° 71°
Standover Height 717mm 780mm 795mm 818mm 855mm 882mm
Head Tube Height 90mm 90mm 100mm 100mm 110mm 130mm
Wheel Base 1067mm 1081mm 1096mm 1113mm 1139mm 1159mm
Seat Tube Angle (Actual) - Low Setting 72° 72.5° 72° 72° 72° 72°
Seat Tube Angle (Effective) - Low Setting 73.5° 74° 73.5° 73.5° 73.5° 73.5°
Seat Tube Length - Center to Top 394mm 432mm 457mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm 304mm 304mm
