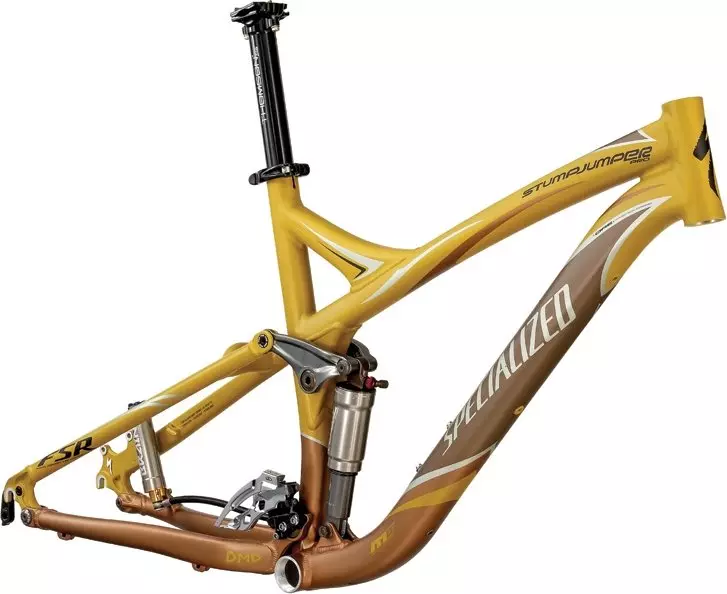

Stumpjumper FSR Pro Frame
Overview
Technical Specifications
Geometry
Reviews
XC Trail THE BEST GETS BETTER. With an all-new chassis design that is lighter, more efficient, features a lower stand-over height and the same incredible handling, the completely redesigned Stumpjumper FSR® continues to be best bike for the trails most of us ride, most of the time.

Inside Tech The completely redesigned Stumjumper FSR chassis features an ultra-refined and focused design, one that's been completely integrated with critical suspension components. The top-tube of the new Stumpjumper FSR sweeps down to ensure maximum standover height and boost overall rigidity.

Useful Links Total Suspension Integration Suspension Setup Manuals/Tech Bulletins

  • FSR M5 manipulated alloy frame w/ Transform monocoque TT, Spinal Tech 1pc forged BB, seat tube, and seat bridge
  • Specialized AFR Shock with Flow Control valve and Brain Fade adjustment
  • Specialized stands behind the materials and workmanship of any Specialized branded fork or rear shock for a full 5 years.
  • Thomson, 7000 series aluminum seatpost

Technical Specifications

DRIVETRAIN
FRONT DERAILLEUR Shimano M770 XT, DMD top swing
SUSPENSION
REAR SHOCK Specialized AFR Shock w/ remote Trail Tune inertia valve, adj rebound and Brain Fade, 7.25x1.75""
FRAMESET
SEAT BINDER Alloy collar w/ QR, 34.9mm clamp ID
FRAME All new Stumpjumper FSR M5 manipulated alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel

Geometry

Geometry Chart

- Geometry

S M L XL XXL
  S M L XL XXL
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 75mm 90mm 105mm 120mm 120mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm
Chainstay Length 420mm 420mm 420mm 420mm 420mm
Top Tube Length (Actual) 533mm 565mm 603mm 625mm 640mm
Top Tube Length (Horizontal) 556mm 590mm 625mm 645mm 665mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5° 68.5°
Standover Height 721mm 728mm 755mm 764mm 778mm
Head Tube Height 100mm 120mm 140mm 160mm 160mm
Wheel Base 1084mm 1115mm 1155mm 1177mm 1197mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71° 71°
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5° 74.5°
Seat Tube Length - Center to Top 406mm 445mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm 335mm
