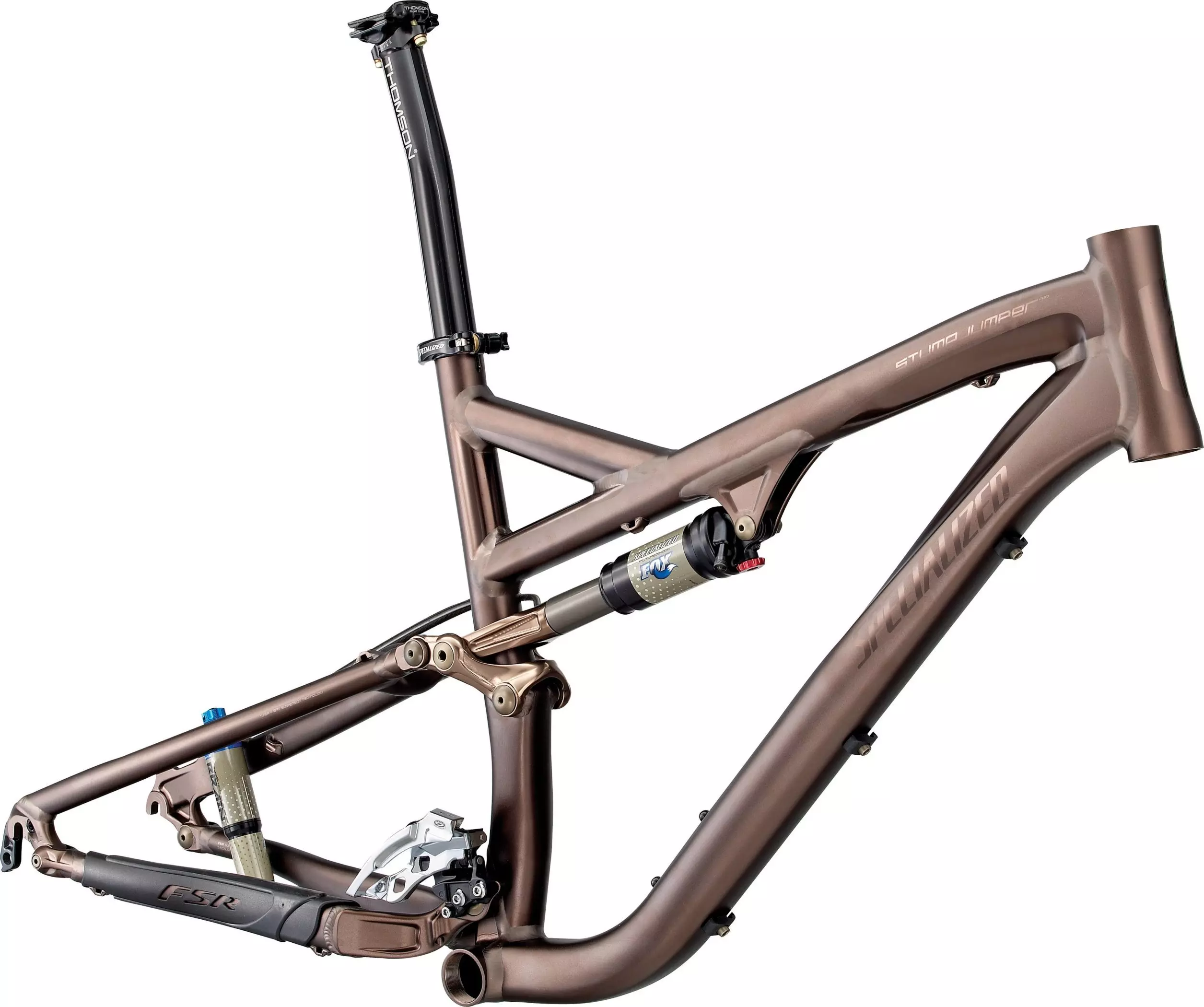

Stumpjumper FSR Pro Frame M5
Overview
Technical Specifications
Geometry
Reviews
Evolving from a 25-year legacy, the Stumpjumper® FSR is absolutely the best breed of XC Trail bike—it's the anything and everything, 'make you an addict if you weren't one already' full-suspension mountain bike with miles upon miles of trail-tuned flow. The new lighter, stiffer and more capable 26" alloy and carbon models and all-new 29" alloy model only solidify the Stumpjumper's place as the most well-rounded mountain bike available.

See the Stumpjumper FSR in action with the Stumpjumper Trail Crew.

  • Specialized/Fox AFR Brain rear shock with Brain Fade and adjustable rebound dials in the perfect blend of pedaling efficiency and bump compliance
  • Redesigned Stumpjumper FSR frame with 140mm of travel means rock gardens disappear under the manipulated M5 frame with an aluminum link and sealed cartridge bearing pivots

Technical Specifications

DRIVETRAIN
FRONT DERAILLEUR Shimano M770 XT, DMD, top swing, dual pull
SUSPENSION
REAR SHOCK Specialized/Fox AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.875x1.9"" Integrated cartridge bearing shock mount.
COCKPIT
SEATPOST Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL:410mm
FRAMESET
HEADSET Campy style cartridge bearings for integrated alloy HT
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
FRAME Stumpjumper FSR M5 manipulated alloy frame, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel

Geometry

Geometry Chart

- Geometry

S M L XL XXL
  S M L XL XXL
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 60mm 75mm 90mm 105mm 105mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm 660mm
Reach 398mm 424mm 452mm 474mm 497mm
Stack 565mm 584mm 594mm 603mm 603mm
Chainstay Length 420mm 420mm 420mm 420mm 420mm
Top Tube Length (Actual) 523mm 555mm 583mm 608mm 627mm
Ground-Top 900mm 919mm 929mm 938mm 938mm
Top Tube Length (Horizontal) 556mm 587mm 617mm 642mm 665mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5° 68.5°
Standover Height 741mm 746mm 753mm 766mm 770mm
Head Tube Height 118mm 138mm 148mm 158mm 158mm
Wheel Base 1083mm 1116mm 1147mm 1173mm 1196mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5° 70.5° 70.5°
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5° 74.5°
Seat Tube Length - Center to Top 406mm 445mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm 335mm
