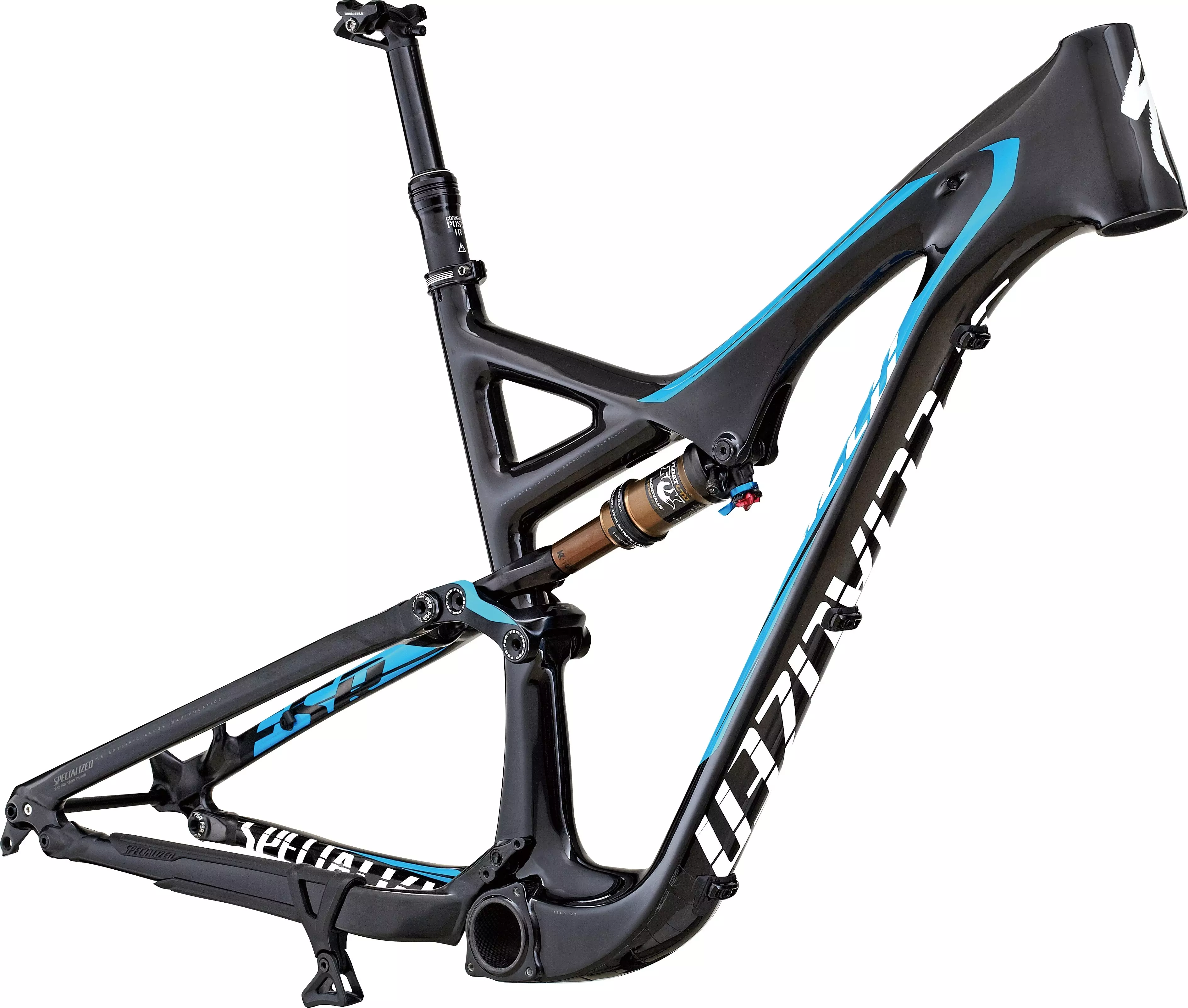

Stumpjumper FSR Expert Carbon EVO 29 Frame
Part No.

Stumpjumper FSR Expert Carbon EVO 29 Frame

Part No.  49660
Stumpjumper FSR Expert Carbon EVO 29 Frame
Overview
Technical Specifications
Geometry
Reviews
Back To Top
Build your own trail slaying machine with the FACT carbon, 135mm-travel Stumpjumper FSR Expert Carbon EVO 29 frame. It's designed for getting burly, and features a Fox Float CTD Factory shock with AUTOSAG and Kashima coating.
  • FOX Float CTD Factory shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend with Trail, and rebound adjust
  • All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance
  • Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with slacker, lower EVO 29 geometry, 135mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the meanest trail 29er out there

Technical Specifications

Technical Specifications

SUSPENSION
REAR SHOCK Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj., 195x46mm
COCKPIT
SEATPOST Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
FRAMESET
SWAT Bottle cage w/ SWAT Technology compatible (not included)
HEADSET 1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER Command Post, 7050 hard anodized alloy, single bolt, 34.9mm
FRAME FACT 9m carbon front triangle, 29"" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
* Specifications are subject to change without notice

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 60mm 60mm 75mm 90mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 380mm 425mm 425mm 425mm
Handlebar Width 750mm 750mm 750mm 750mm
Top Tube Length, Horizontal 567mm 596mm 622mm 648mm
Reach 389mm 416mm 435mm 456mm
Stack 610mm 619mm 643mm 661mm
Bottom Bracket Drop 37mm 37mm 37mm 37mm
Chainstay Length 455mm 455mm 455mm 455mm
Top Tube Length, Actual 576mm 603mm 632mm 660mm
Head Tube Angle 68° 68° 68° 68°
Head Tube Length 90mm 100mm 125mm 145mm
Seat Tube Angle, Effective 73.5° 73.5° 73.5° 73.5°
Seat Tube Angle, Actual 68° 68.4° 68.8° 69.3°
Seat Tube Length, Center to Top 396mm 430mm 468mm 523mm
Standover Height 750mm 741mm 750mm 764mm
Wheel Base 1125mm 1155mm 1183mm 1211mm
Bottom Bracket Height 335mm 335mm 335mm 335mm
