2012 Stumpjumper FSR EVO Frame

0 Reviews

Color:

Satin Charcoal/Black/Neon Blue

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Shipping to -----

Unavailable

This item is not available for Find Nearby

Product Details

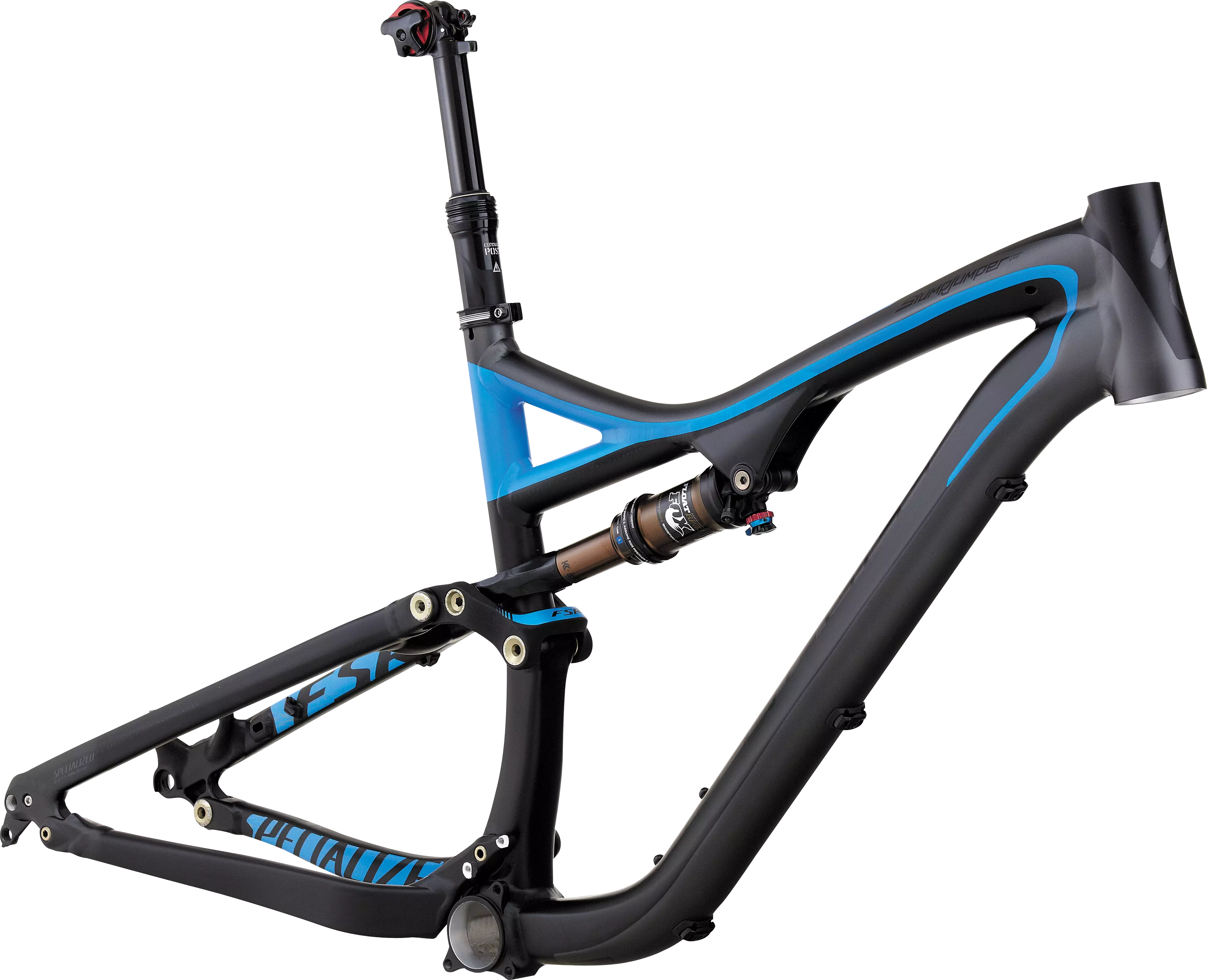

Build your own aggressive riding shred sled. The 150mm-travel M5 aluminum Stumpjumper FSR EVO frame features a Fox RP23 Adaptive Logic shock with AUTOSAG and Kashima coating, EVO geometry, tapered HT, PF30 BB, ISCG '05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, and a replaceable derailleur hanger.

M5 manipulated alloy frame with 150mm of rear wheel travel, EVO geometry, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots pushes the boundaries of trail riding
Custom Fox RP23 Adaptive Logic shock with ground-breaking AUTOSAG feature, Boost Valve technology and buttery-smooth Kashima coating has one custom-tuned ProPedal setting for climbing, and 3 open-compression settings for premium descending performance.
All-new Specialized Command Post BlackLite uses 3 remote-actuated saddle height positions to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

M5 hydroformed tubing, EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Fox RP23 Adaptive Logic with AUTOSAG, Kashima coating, rebound adj., separate climbing setting and custom 3-position open comp adj., 197x51mm

COCKPIT

SEATPOST

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Seat Tube Angle Actual (Alloy)	69°	69°	69°	69°
Seat Tube Angle Actual (Carbon)	68.2°	68.6°	69°	69.4°
Seat Tube Angle Effective	73.5°	73.5°	73.5°	73.5°
Seat Tube Length, Center to Top	396mm	430mm	468mm	523mm
Top Tube Length, Actual	556mm	588mm	616mm	641mm
Bottom Bracket Drop	4mm	4mm	4mm	4mm
Bottom Bracket Height	335mm	335mm	335mm	335mm
Wheel Base	1095mm	1129mm	1160mm	1186mm
Standover Height	745mm	744mm	752mm	761mm
Stack	572mm	592mm	602mm	611mm
Reach	388mm	414mm	442mm	464mm
Head Tube Length	110mm	130mm	140mm	150mm
Head Tube Angle	67°	67°	67°	67°
Chainstay Length	420mm	420mm	420mm	420mm
Top Tube Length, Horizontal	556mm	587mm	617mm	642mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	90mm
Seatpost Length	380mm	425mm	425mm	425mm
