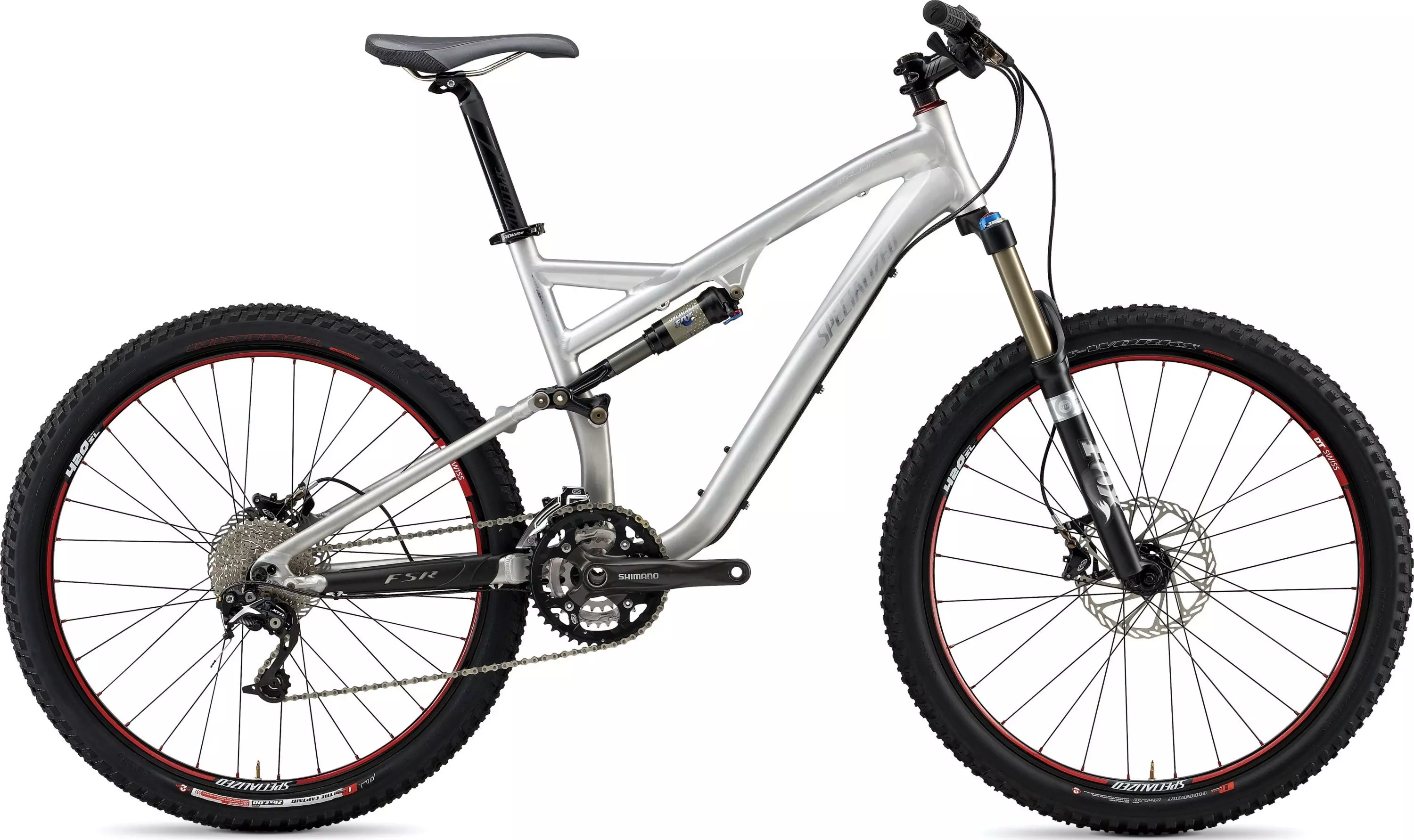

Stumpjumper FSR Elite
$2,800.00
Part No.

Stumpjumper FSR Elite

$2,800.00
Part No.  23211
load-spinner
Stumpjumper FSR Elite
Overview
Technical Specifications
Geometry
Reviews
Evolving from a 25-year legacy, the Stumpjumper® FSR is absolutely the best breed of XC Trail bike—it's the anything and everything, 'make you an addict if you weren't one already' full-suspension mountain bike with miles upon miles of trail-tuned flow. The new lighter, stiffer and more capable 26" alloy and carbon models and all-new 29" alloy model only solidify the Stumpjumper's place as the most well-rounded mountain bike available.

See the Stumpjumper FSR in action with the Stumpjumper Trail Crew.

  • Fox Talas RL alloy fork with external lockout, compression and rebound adjust—along with 140-100mm of easily adjustable travel—can conquer any obstacle
  • Stumpjumper FSR M5 manipulated alloy frame with 140mm of travel, aluminum rocker link and sealed cartridge bearing pivots makes rock gardens all but disappear
  • S-Works Purgatory 26 x 2.2" 2Bliss front tire is aggressive for varied terrain, and The Captain Control 2.0" rear tire rolls fast with formidable side knob bite when shredding through turns

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
HEADSET Campy style cartridge bearings for integrated alloy HT
FRAME Stumpjumper FSR M5 manipulated alloy frame, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
WHEELS
FRONT HUB Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss 1.8mm stainless
RIMS Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT TIRE S-Works Purgatory, 26x2.2"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE The Captain Control, 26x2.0"", 60 TPI, tubeless ready aramid bead, dual compound
DRIVETRAIN
BOTTOM BRACKET Custom Shimano integrated
CHAIN SRAM PC-971, 9-speed w/Power Link
CRANKSET Custom Shimano FC-M542, S: 170mm, others: 175mm
CASSETTE Shimano HG61, 9-speed, 11-34t
SHIFT LEVERS Shimano SL-M660 SLX, trigger, 9-speed
FRONT DERAILLEUR Shimano M660 SLX, DMD, top swing, dual pull
REAR DERAILLEUR Shimano RD-M972 Shadow XTR, long-carbon cage
COCKPIT
SADDLE Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XXL:143mm
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm
GRIPS Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
HANDLEBARS Specialized XC low rise bar, butted 7050 alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
STEM 3D forged alloy, adjustable rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
FRONT BRAKE Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 185mm, L/XL: 203mm rotor
REAR BRAKE Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 160mm, L/XL: 185mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK Fox Talas RL, 140/120/100mm travel, alloy steerer, compression and rebound adj. w/ LO
REAR SHOCK Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.875x1.9"", integrated cartridge bearing yoke mount

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 60mm 75mm 90mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 398mm 424mm 452mm 497mm
Stack 565mm 584mm 594mm 603mm
Chainstay Length 420mm 420mm 420mm 420mm
Top Tube Length (Actual) 523mm 555mm 583mm 608mm
Ground-Top 900mm 919mm 929mm 938mm
Top Tube Length (Horizontal) 556mm 587mm 617mm 665mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5°
Standover Height 741mm 746mm 753mm 770mm
Wheel Base 1083mm 1116mm 1147mm 1173mm
Head Tube Height 118mm 138mm 148mm 158mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5° 70.5°
Seat Tube Length - Center to Top 406mm 445mm 483mm 584mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
