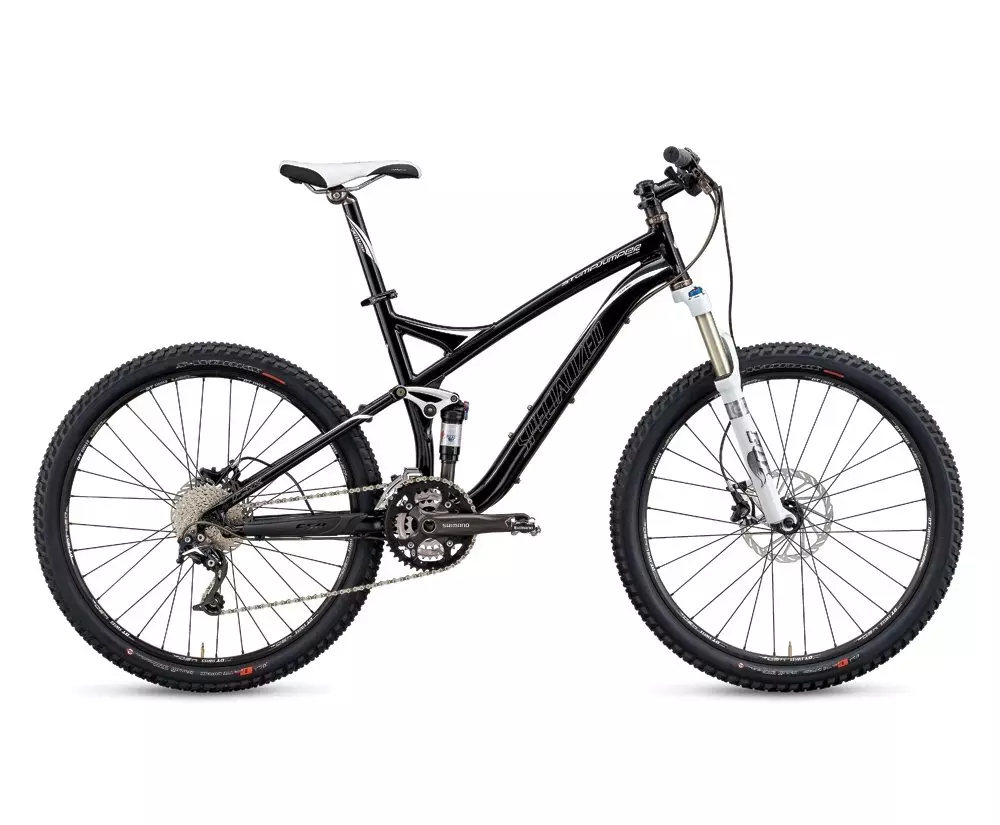

Stumpjumper FSR Elite
Part No.

Stumpjumper FSR Elite

Part No.  22322
load-spinner
Stumpjumper FSR Elite
Overview
Technical Specifications
Geometry
Reviews
STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything and everything, 'make you an addict if you weren't one already' full suspension mountain bike with miles upon mile of trail-tuned flow.
  • An adjustable Fox Talas fork allows the rider pick their level of travel: 140, 120 or 100mm, complete with compression/rebound adjust and lockout.
  • Custom Avid Elixir hydraulic disc brakes offer excellent modulation thanks to organic pads, adjustable levers and size-specific rotors in a lightweight set up.
  • The Fox Triad rear shock is custom-tuned for the Stumpjumper to enable on-the-fly three-position damping with open, lockout and ProPedal settings, plus adjustable rebound.

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-971, 9-speed w/Power Link
BOTTOM BRACKET Custom Shimano FC-M542
CRANKSET Custom Shimano FC-M542, S: 170mm, others: 175mm
FRONT DERAILLEUR Shimano M660 SLX, DMD, top swing, dual pull
SHIFT LEVERS Shimano SL-M660 SLX, trigger, 9-speed
CASSETTE Shimano HG61, 9-speed, 11-34t
REAR DERAILLEUR Shimano RD-M972 Top-normal XTR, Shadow, long-carbon cage
SUSPENSION
FORK Fox Talas RL w/ Talas 3, 140/120/100mm, alloy stanchions, disk only, compression and rebound adj. w/ LO, magnesium lowers, 32mm stancions
REAR SHOCK Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.25x1.75""
WHEELS
FRONT HUB Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES DT Swiss 1.8mm stainless, black, alloy nipples
FRONT TIRE S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
RIMS Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
REAR TIRE S-Works The Captain, 26x2.0"", 120 TPI, Aramid bead, dual compound, tubeless ready
COCKPIT
SADDLE Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XL/XXL:143mm
SEATPOST 2014 butted alloy, single-bolt setback, 30.9x350/400mm
STEM Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
HANDLEBARS Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
GRIPS Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL/XXL)
BRAKES
FRONT BRAKE Custom Avid Elixir R SL, alloy backed organic pads, M: 185mm, L/XL/XXL: 203mm rotor
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
REAR BRAKE Custom Avid Elixir R SL, alloy backed organic pads, S/M: 160mm, L/XL/XXL: 185mm rotor
ACCESSORIES
PEDALS None
FRAMESET
HEADSET 1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
FRAME Stumpjumper FSR M5 Manipulated Alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 75mm 90mm 105mm 120mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm
Chainstay Length 420mm 420mm 420mm 420mm
Top Tube Length (Actual) 533mm 565mm 601mm 625mm
Top Tube Length (Horizontal) 556mm 587mm 625mm 645mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5°
Standover Height 721mm 728mm 755mm 764mm
Wheel Base 1084mm 1115mm 1155mm 1197mm
Head Tube Height 100mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71°
Seat Tube Length - Center to Top 406mm 445mm 483mm 584mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
