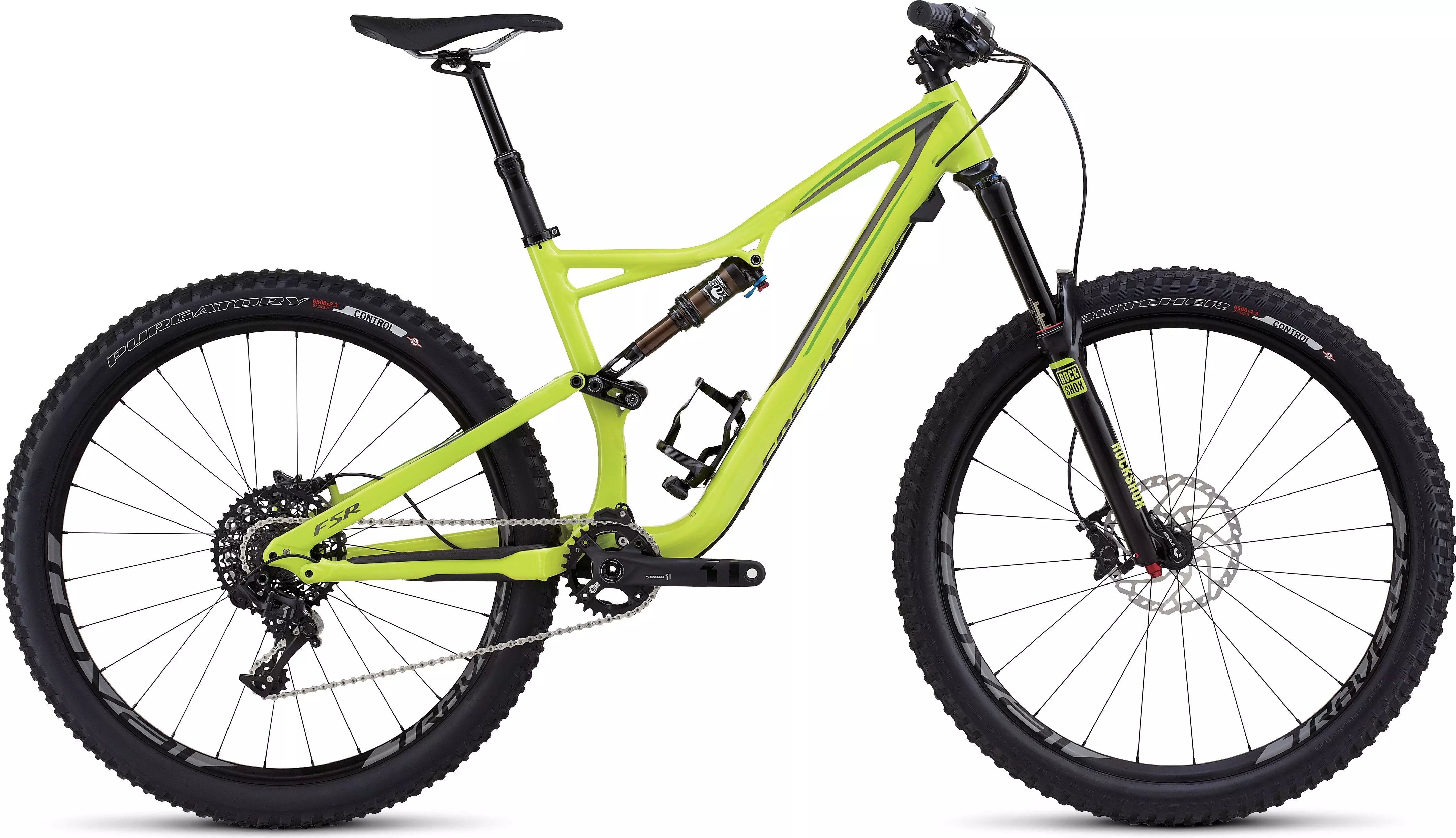

Stumpjumper FSR Elite 650b
$4,300.00
Part No.

Stumpjumper FSR Elite 650b

$4,300.00
Part No.  106999
load-spinner
Stumpjumper FSR Elite 650b
Overview
Technical Specifications
Geometry
Reviews
If you're riding hard on the trail, a 650b is going to complement your playful style. After all, it's pretty difficult to beat the agility and responsiveness that the wheel size brings to the table. So to support your style of riding, we made the Stumpjumper Elite 650b. It features an M5 alloy construction that's lightweight, durable, and plenty stiff. Adding to this philosophy of blending strength and efficiency, the Elite 29 is equipped with SRAM's workhorse one-by groupset, X1, and Shimano's dependable SLX hydraulic disc. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features absurdly short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you get a trail bike that's ready and able to take on anything that might confront you on the trail.
  • M5 alloy Trail Chassis with Stumpjumper FSR rear end blends durability, stiffness, and light weight, while 150mm of travel Trail 650b Geometry provide more than capable handling.
  • Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Factory rear shock features AUTOSAG for easy setup and 150mm of plush, adjustable suspension, while our Rx Trail Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.
  • RockShox Pike RC 650b fork features a 15mm Maxle Ultimate thru-axle and 150mm of plush travel to take on big hits and bumpy terrain with supreme confidence and efficiency.
  • 650bx2.3” Specialized Butcher Control front tire inspires confidence through any terrain.
  • Command Post IRcc seatpost features 12 positions of up to 125mm of height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.
  • 650bx2.3” Specialized Purgatory Control rear tire delivers reliable traction over a diverse section of soils and conditions.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 34.9mm
HEADSET Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings
FRAME M5 alloy, Trail 650b Geometry, internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, front derailleur compatible w/ Taco Blade, 150mm travel
WHEELS
FRONT HUB Roval Traverse, 15/20mm thru-axle, 24h
REAR HUB Roval Traverse 142+, SRAM XX1 driver body, 12mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Revolution
RIMS Roval Traverse 650b, alloy, disc, 29mm inner width, 24/28H
FRONT TIRE Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
REAR TIRE Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM PF30, OS press-in bearings
CHAIN KMC X11L chain, 11-speed, reusable MissingLink
CRANKSET SRAM X1, alloy, PF30 spindle, 30T, 94mm BCD spider
CASSETTE SRAM XG-1180 cassette, 11-speed, 10-42t
SHIFT LEVERS SRAM X1, 11-speed, trigger
REAR DERAILLEUR SRAM X1, 11-speed, alloy cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm, 31.8mm clamp
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 45/60/75/90/105mm
BRAKES
BRAKE LEVERS Shimano SLX, I-spec compatible
FRONT BRAKE Shimano SLX, hydraulic disc, metallic pads, I-spec compatible
REAR BRAKE Shimano SLX, hydraulic disc, metallic pads, I-spec compatible
ACCESSORIES
PEDALS Resin Test Ride Pedals w/ toe clips
SUSPENSION
FORK RockShox Pike RC 650b, Solo Air spring, 150mm of travel, compression adjust, rebound adjust, tapered steerer, 42mm offset, 15mm Maxle Ultimate thru-axle
REAR SHOCK Custom FOX FLOAT Factory CTD, AUTOSAG, Rx Trail Tune, Boost Valve, Kashima coating, 197x47.6mm

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 45mm 60mm 60mm 60mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 390mm 430mm 430mm 430mm
Handlebar Width 750mm 750mm 750mm 750mm
Reach 388mm 414mm 442mm 464mm
Stack 590mm 599mm 608mm 617mm
Wheelbase 1096mm 1126mm 1158mm 1184mm
Bike Stand-Over Height 737mm 743mm 757mm 769mm
Head-Tube Length 95mm 105mm 115mm 125mm
Front-Center 677mm 706mm 738mm 764mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Head-Tube Angle 67° 67° 67° 67°
Trail 104mm 104mm 104mm 104mm
B-B Height 335mm 335mm 335mm 335mm
Chain-Stay Length 420mm 420mm 420mm 420mm
Fork Length (full) 542mm 542mm 542mm 542mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 18mm 18mm 18mm 18mm
Seat-Tube Length 396mm 430mm 468mm 523mm
Top-Tube Length (horizontal) 553mm 585mm 618mm 646mm
