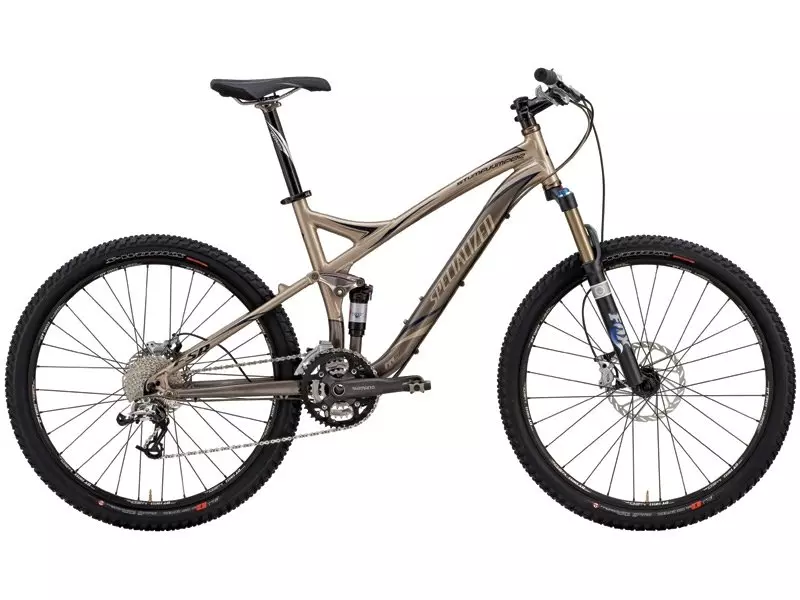

Stumpjumper FSR Comp
Overview
Technical Specifications
Geometry
Reviews
XC Trail THE BEST GETS BETTER. With an all-new chassis design that is lighter, more efficient, features a lower stand-over height and the same incredible handling, the completely redesigned Stumpjumper FSR® continues to be best bike for the trails most of us ride, most of the time.

Inside Tech The completely redesigned Stumjumper FSR chassis features an ultra-refined and focused design, one that's been completely integrated with critical suspension components. The top-tube of the new Stumpjumper FSR sweeps down to ensure maximum standover height and boost overall rigidity.

Useful Links Suspension Setup Manuals/Tech Bulletins

  • FSR M5 manipulated alloy frame w/ Transform monocoque TT, Spinal Tech 1pc forged BB, seat tube, and seat bridge
  • Fox Triad, custom on-the-fly 3-position switch
  • Fox Float 120 RL fork
  • Specialized adjustable rise stem
  • SRAM X-9, 9-speed rear derailleur
  • DT custom for Specialized X420 rims

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-971 w/ Power Link
BOTTOM BRACKET Shimano M542, 2pc custom for Specialized
CRANKSET Shimano A/A/S 2pc custom
FRONT DERAILLEUR Shimano M581 LX, DMD, top swing, dual pull
SHIFT LEVERS SRAM X-7, aluminum 9-speed trigger
CHAINRINGS 22S/32A/44A, 4 bolt 104/64mm
REAR DERAILLEUR SRAM X-9, 9-speed, mid cage
SUSPENSION
FORK Fox Float 120 RL, 120mm travel, rebound/compression adjust, lock out, alloy steerer
REAR SHOCK Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, adjustable rebound, 7.25x1.75""
WHEELS
FRONT HUB Specialized Hi Lo disc, 28h CNC flange and disc mount, sealed cartridge bearing, 9mm DT RWS alloy QR
REAR HUB Shimano custom M525SL hub for Specialized, 32h, alloy QR
SPOKES DT Swiss 1.8mm stainless, alloy nipples
RIMS DT Swiss custom for Specialized X420, 24mm w/ eyelets, 28/32h
FRONT TIRE S-Works The Captain 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE S-Works The Captain 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
COCKPIT
SADDLE Specialized XC MTB, hollow Cr-Mo rails, SL foam
STEM Specialized adjustable rise, 31.8mm clamp, 3D forged w/CNC finish
HANDLEBARS Specialized XC low rise 31.8mm bar, 6066 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
BRAKES
BRAKE LEVERS Custom Avid Juicy 5 SL, hydraulic disc
FRONT BRAKE Custom Avid Juicy 5 SL, hydraulic disc, 185 and 203mm rotor
REAR BRAKE Custom Avid Juicy 5 SL, hydraulic disc, 160 and 185mm rotor
ACCESSORIES
PEDALS Crank Brothers Smarty custom for Specialized
FRAMESET
HEADSET 1 1/8"" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing
SEAT BINDER Alloy collar w/ QR, 34.9mm clamp ID
FRAME All new Stumpjumper FSR M5 manipulated alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel

Geometry

Geometry Chart

- Geometry

S M L XL XXL
  S M L XL XXL
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 75mm 90mm 105mm 120mm 120mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm
Chainstay Length 420mm 420mm 420mm 420mm 420mm
Top Tube Length (Actual) 533mm 565mm 603mm 625mm 640mm
Top Tube Length (Horizontal) 556mm 590mm 625mm 645mm 665mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5° 68.5°
Standover Height 721mm 728mm 755mm 764mm 778mm
Head Tube Height 100mm 120mm 140mm 160mm 160mm
Wheel Base 1084mm 1115mm 1155mm 1177mm 1197mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71° 71°
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5° 74.5°
Seat Tube Length - Center to Top 406mm 445mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm 335mm
