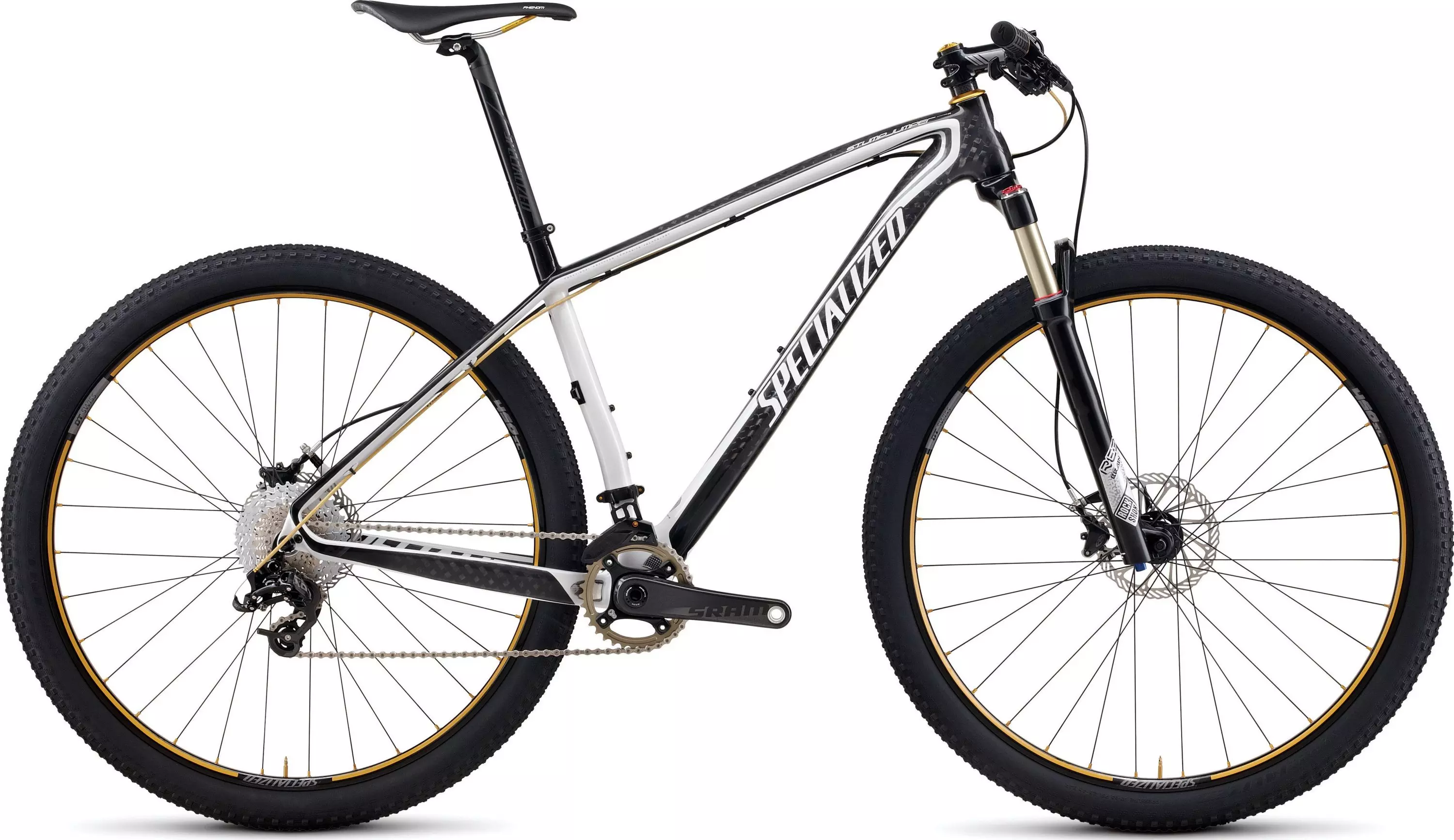

Stumpjumper Expert EVO R 29er
Part No.

Stumpjumper Expert EVO R 29er

Part No.
load-spinner
Stumpjumper Expert EVO R 29er
Overview
Technical Specifications
Reviews
The
  • S-Works FACT 680mm carbon flat bar is featherlight and seriously stiff for XC finesse and power
  • e* thirteen XCX 1x10 chainguide to keep chain solidly in place while shifting through 10 speeds
  • S-Works Renegade 29 x 1.95" dual compound 2Bliss Ready tires with aramid bead roll fast and still provide plenty of race-tested traction
  • Super light, custom SRAM Carbon S-2200 10-speed crankset with PF-30 spindle and removable spider offers stiffness, performance, and durability
  • Custom RockShox Reba 29 90mm fork with Brain is super stiff, and features rebound and Brain Fade adjustment to dial in the perfect platform for hardtail bliss
  • FACT 8m carbon HT frame with 29er-specific geometry, tapered head tube and oversized BB offers superb ride feel and performance in an incredibly lightweight package

Technical Specifications

DRIVETRAIN
CHAIN KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
BOTTOM BRACKET SRAM PF-30, OS press-in bearing, sealed cartridge
CRANKSET Custom SRAM Carbon S-2200, 34t single ring, PF-30, removeable spider, 15.5: 170mm, others: 175mm
FRONT DERAILLEUR e* thirteen XCX chain guide, 34.9 clamp mount
SHIFT LEVERS SRAM X.9, 10-speed, aluminum trigger
CASSETTE Shimano HG81, 10-speed, 11-36t
CHAINRINGS 34t, 7050 ring with CNC detail
REAR DERAILLEUR SRAM X.0, 10-speed, short cage
SUSPENSION
FORK Custom RockShox Reba 29 w/Brain, inertia valve damper, air spring, tapered alloy steerer, Brain Fade and rebound adj., QR, 15.5: 80mm, other: 90mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB Custom DT Swiss 330SL, alloy cassette body, RWS, 32h
FRONT TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
RIMS Custom DT Swiss X450SL, 29"" rim, 24mm w/ eyelets, 32h
REAR TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
COCKPIT
SADDLE Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5"": 350mm, others: 400mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8 degree back sweep, 31.8mm
GRIPS Specialized lock-on, 15.5/17.5: Grappler, Other: Rocca
BRAKES
FRONT BRAKE Custom Avid Elixir CR SL, hydraulic disc, pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 160mm rotor
BRAKE LEVERS Custom Avid Elixir CR SL hydraulic, tool-less reach and pad contact adj., alloy lever blade
REAR BRAKE Custom Avid Elixir CR SL, hydraulic disc, pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 160mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
FRAMESET
HEADSET 1-1/8"" and 1-1/2"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER 32.6mm clamp, one bolt for carbon frame/post
FRAME FACT 8m carbon, 29"" geometry, FACT IS construction, tapered HT, carbon PF-30 BB, hollow carbon dropouts, replaceable alloy derailleur hanger
