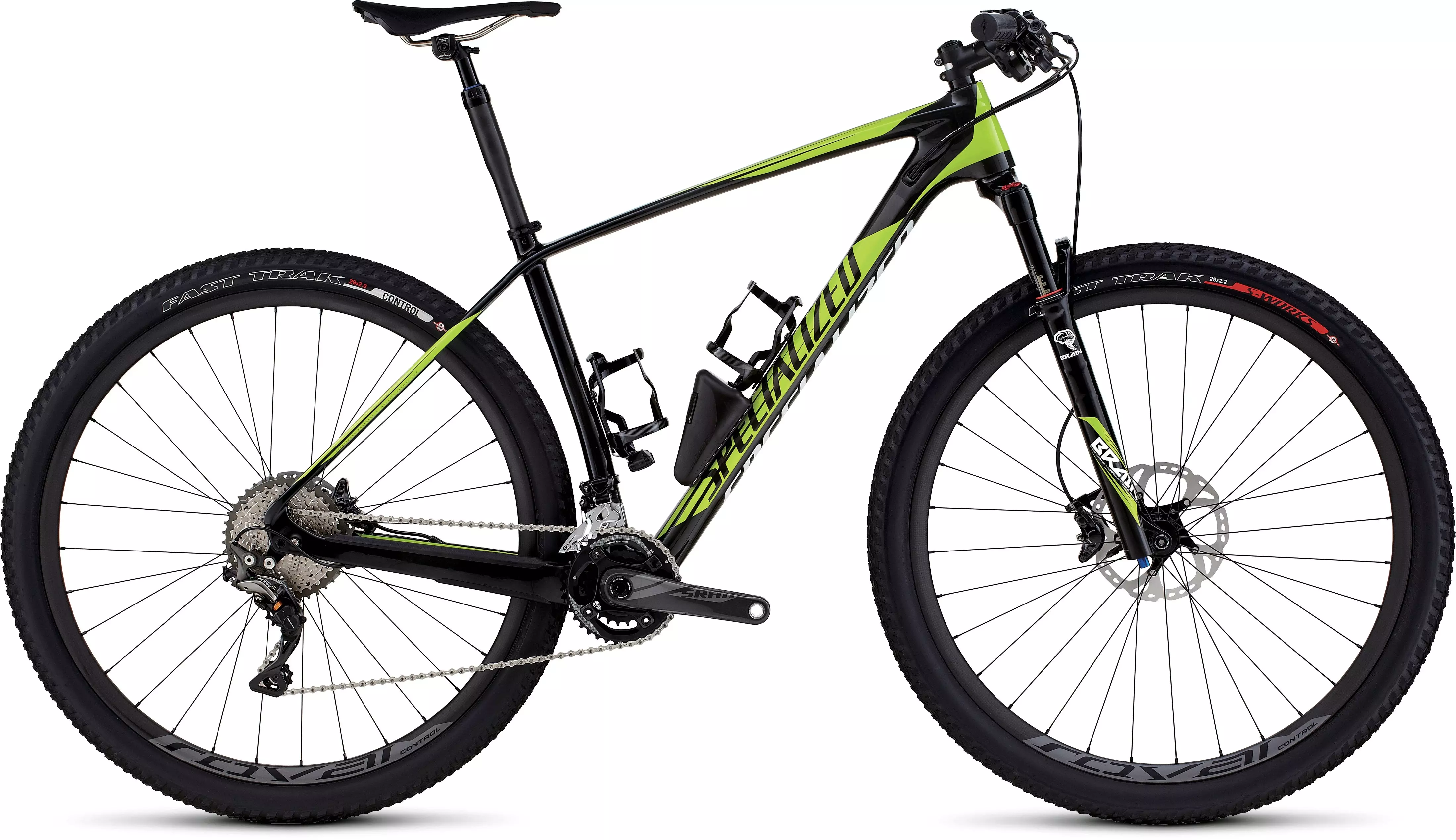

Stumpjumper Expert Carbon 29
$5,300.00
Part No.

Stumpjumper Expert Carbon 29

$5,300.00
Part No.  107065
load-spinner
Stumpjumper Expert Carbon 29
Overview
Technical Specifications
Geometry
Reviews
Whether you're racing your heart out, training like there's no tomorrow, or riding the trail whenever you have an hour to yourself, you're bound to throw some abuse your bike's way. If this sounds familiar, you'll feel right at home on our Stumpjumper Expert Carbon. It's constructed from our second-highest class of carbon fiber, FACT 10m, to ensure that the bike is lightweight, stiff, and highly responsive. Meanwhile, the build consists of a reliable and durable mix of Shimano XT and XTR for performance season after season. It also features our revolutionary XC 29 Geometry for explosive power, incredible climbing prowess, and nimble handling. And at the rear, the hardtail design with razor thin seatstays blends maximum pedaling efficiency with added compliance. Add to this our Brain technology at the legendary RockShox SID fork that differentiates between rider and trail input to stay firm under effort and compliant over bumps, along with a pair of hand-built carbon wheels, and you have a bike that's ready for any XC course or ribbon of singletrack.
  • The RockShox SID Brain 29 fork provides efficient, frame size-specific travel. It features Brain technology that distinguishes between terrain and rider input in order to maximize your power, while a Brain Fade adjusts the oil flow when not hitting bumps.
  • A mix of Shimano XT and XTR 11-speed components handle drivetrain duties. Combined, the pairing ensures the optimal blend of durability and precision through their reliable alloy construction and wide range of gearing.
  • Roval Control Carbon 29 wheels are lightweight and hand-built to deliver sheer speed on climbs and sprints, while the 27mm external width lends itself to ample control and nimbleness on technical descents.
  • To weave stiffness, light weight, and strength together into one race-ready hardtail, we constructed the frame from our FACT 10m carbon fiber. And when combined with our XC 29 Geometry, the Stumpjumper is guaranteed to deliver uncompromising, blistering speed come race day—no matter the course.
  • Casing the wheels is a 29x2.2" S-Works Fast Trak tire at the front and a 29x2.0" Fast Trak Control at the rear. Together, the tires provide a heightened level of fast-rolling traction and reliable protection that's well suited to the rigors of cross country racing.

Technical Specifications

DRIVETRAIN
CHAIN KMC X11L, 11-speed, w/ reusable MissingLink
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CRANKSET Sram 2200 Carbon, Custom for SBC, PF30, 24x36 GX double, Clean Spider, S:170mm, others: 175mm. 104mm BCD
FRONT DERAILLEUR SRAM GX, 2x11, top pull
SHIFT LEVERS Shimano XT, 11-speed, trigger, I-spec II compatible
CASSETTE Shimano XT, 11-speed, 11-40t
REAR DERAILLEUR Shimano XTR Shadow Plus, 11-speed
SUSPENSION
FORK RockShox SID Brain 29, Solo Air spring, S: 80mm travel, M/L/XL: 95mm travel, bottom-mount Brain fade adjust, rebound adjust, tapered alloy crown/steerer, 46mm offset, 15mm Maxle Stealth thru-axle
WHEELS
FRONT HUB Roval Control Carbon, 15mm end caps
REAR HUB Roval Control Carbon 142+
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Revolution
RIMS Roval Control Carbon 29, carbon, disc
FRONT TIRE S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2""
REAR TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
COCKPIT
SADDLE Body Geometry Phenom Expert, hollow Ti rails, 143mm
SEATPOST Command Post XCP, carbon lower tube, internal cable routing, 27.2mm, 35mm travel
STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
HANDLEBARS Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm, 31.8mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
BRAKES
FRONT BRAKE Shimano Deore XT, Ice-Tech metallic pads
BRAKE LEVERS Shimano XT, I-spec compatible
REAR BRAKE Shimano Deore XT, Ice-Tech metallic pads
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
FRAMESET
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
SEAT BINDER Alloy, 31.6mm
FRAME FACT 10m carbon, XC 29 Geometry, FACT IS construction, tapered head tube, carbon PF30 BB, internal cable routing, 142mm dropouts, PM 160 rear brake, replaceable alloy derailleur hanger

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 70mm 90mm 100mm 110mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 400mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 390mm 414mm 437mm 458mm
Stack 592mm 610mm 625mm 639mm
Wheelbase 1047mm 1078mm 1105mm 1131mm
Bike Stand-Over Height 760mm 799mm 826mm 849mm
Head-Tube Length 90mm 100mm 115mm 130mm
Front-Center 624mm 655mm 682mm 708mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71°
Trail 79mm 79mm 79mm 79mm
B-B Height 310mm 310mm 310mm 310mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Fork Length (full) 486mm 496mm 496mm 496mm
Seat-Tube Angle 73.5° 73.5° 73.5° 73.5°
B-B Drop 61mm 61mm 61mm 61mm
Seat-Tube Length 394mm 434mm 470mm 505mm
Top-Tube Length (horizontal) 565mm 593mm 620mm 643mm
