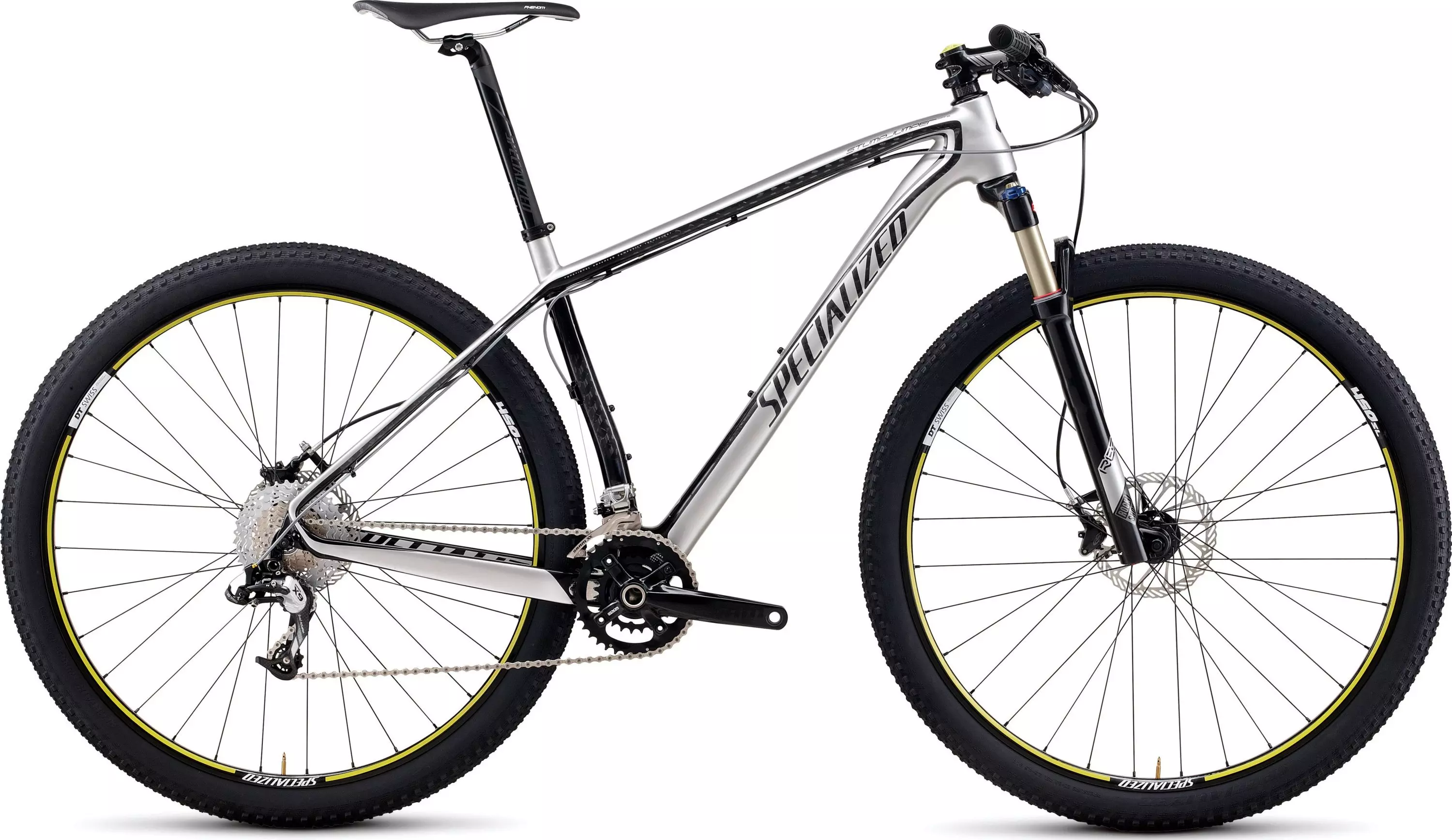

Stumpjumper Comp Carbon 29er
$2,900.00
Part No.

Stumpjumper Comp Carbon 29er

$2,900.00
Part No.  23673
load-spinner
Stumpjumper Comp Carbon 29er
Overview
Technical Specifications
Geometry
Reviews
FACT carbon frame with geometry perfectly dialed-in for 29er wheels inlcuding the shortest chainstays and wheelbase and honed angles for the most nimble handling.
  • Custom DT Swiss 29" rims with eyelets and sleeved seams keep weight low and durability high
  • Custom SRAM S-1250 10-speed double crankset with GXP spindle and alloy arms for smooth, efficient power transfer
  • S-Works Renegade 29 x 1.95" dual compound 2Bliss Ready tires with aramid bead roll fast and still provide plenty of race-tested traction
  • RockShox Reba RLT 29er fork with size-specific travel, rebound/compression adjust, and Floodgate control allows this 29er to soak up rocks like no other
  • Avid Elixir R SL lightweight hydraulic brakes with tool-less reach adjust and long-lasting, semi-metallic pads halt bombing runs with superb control and modulation
  • FACT 8m carbon HT frame with 29er-specific geometry, tapered head tube and oversized BB offers superb ride feel and performance in an incredibly lightweight package

Technical Specifications

FRAMESET
SEAT BINDER 32.6mm clamp, one bolt for carbon frame/post
HEADSET 1-1/8"" upper and 1-1/2"" lower, threadless, Campy style upper, cartridge bearings
FRAME FACT 8m carbon, 29"" geometry, FACT IS construction, tapered HT, carbon PF-30 BB, hollow carbon dropouts, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Champion 1.8mm (15g) stainless
RIMS Custom DT Swiss X450SL, alloy 29"", 24mm w/ eyelets, 32h
FRONT TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
REAR TIRE S-Works Renegade, 120 TPI, 2Bliss ready aramid bead, dual compound, 29x1.95""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearing
CHAIN KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, GXP spindle, 15.5: 170mm, others: 175mm
CASSETTE Shimano HG81, 10-speed, 11-36t
SHIFT LEVERS SRAM X.7, 10-speed, aluminum trigger
FRONT DERAILLEUR SRAM X.7, 10-speed, 34.9 clamp mount, top pull
CHAINRINGS 38A x 24A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X.9, 10-speed, mid cage
COCKPIT
SADDLE Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5"": 350mm, others: 400mm
GRIPS Specialized lock-on, 15.5/17.5: Grappler, Other: Rocca
HANDLEBARS Specialized XC flat bar, 6061 butted alloy, 680mm wide, 8 degree back sweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL hydraulic, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, 160mm rotor
REAR BRAKE Custom Avid Elixir R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metallic pads, stainless hardware, G3 Clean Sweep rotor, 160mm rotor
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK RockShox Reba RLT 29, tapered alloy steerer, compression and rebound adj. LO w/external floodgate adj., standard drop-outs, 15.5: 80mm travel, others: 90mm travel

Geometry

Geometry Chart

Stumpjumper - Geometry

  15.5 17.5 19 21 23
Stem Length 75mm 90mm 105mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm 660mm
Reach 401mm 405mm 427mm 450mm 464mm
Stack 603mm 624mm 633mm 643mm 662mm
Chainstay Length 436mm 436mm 436mm 436mm 436mm
Top Tube Length (Actual) 557mm 564mm 586mm 610mm 632mm
Ground-Top 907mm 928mm 937mm 947mm 966mm
Top Tube Length (Horizontal) 570mm 590mm 615mm 640mm 660mm
Head Tube Angle - Low Setting 71.5° 71.5° 71.5° 71.5° 71.5°
Standover Height 726mm 801mm 832mm 864mm 902mm
Wheel Base 1069mm 1072mm 1097mm 1122mm 1143mm
Head Tube Height 100mm 110mm 120mm 130mm 150mm
Seat Tube Angle (Actual) - Low Setting 73° 72° 72° 72° 72°
Seat Tube Length - Center to Top 393mm 445mm 483mm 533mm 584mm
Seat Tube Angle (Effective) - Low Setting 74.5° 73.5° 73.5° 73.5° 73.5°
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm 304mm
