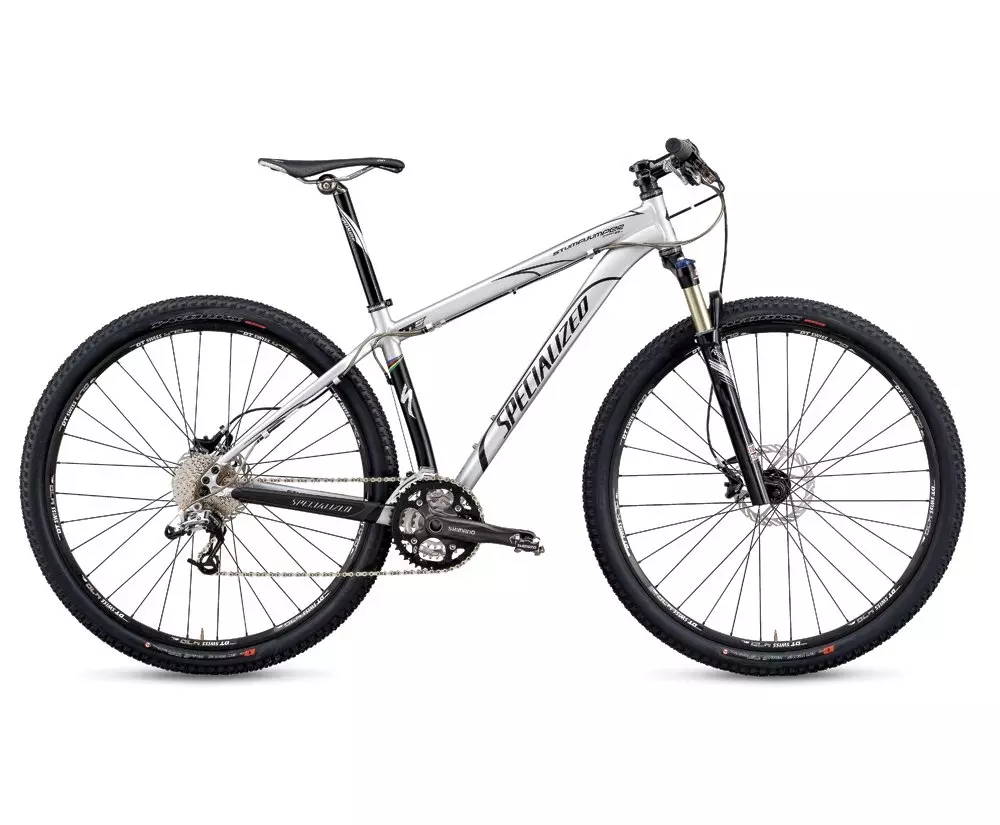

Stumpjumper Comp 29
$1,950.00
Part No.

Stumpjumper Comp 29

$1,950.00
Part No.  22388
load-spinner
Stumpjumper Comp 29
Overview
Technical Specifications
Geometry
Reviews
STILL LEAVING ITS COMPETITION IN THE DUST after decades in production, the Stumpjumper® Hardtail makes no apologies for being the leanest, lightest (some models are under 20 lbs.) and most precision hardtail on the market. Tradition works.
  • The bike that started it all, in a updated 29" package - the M5 alloy frame with oversized ORE top/down tube and perfect geometry makes you forget you're riding big hoops. Forged dropouts let you switch between geared or single speed.
  • Custom Avid Elixir hydraulic disc brakes offer excellent modulation thanks to organic pads, adjustable levers and size-specific rotors in a lightweight set up.
  • S-Works Fast Trak LK 2.0" tires roll insanely fast (just like XC champion Christoph Sauser), without sacrificing any traction.

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/bolt, 34.9mm clamp ID, black
HEADSET 1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
FRAME SJ HT 29er, M5 manipulated alloy frame, butted ORE DT/TT, shared tube Mono-stay seatstays, forged adjustable dropouts for multi speed or SS, disc only
WHEELS
FRONT HUB Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Specialized Ultralight 29x2.0"", presta
SPOKES DT Swiss 1.8mm stainless, black, alloy nipples
RIMS Custom DT Swiss X470, 29"", 24mm wide, sleeved w/eyelets, 32h
FRONT TIRE S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
DRIVETRAIN
BOTTOM BRACKET Custom Shimano FC-M542
CHAIN SRAM PC-971, 9-speed w/Power Link
CRANKSET Custom Shimano FC-M542, 15.5"": 170mm, others: 175mm
CASSETTE Shimano HG61, 9-speed, 11-34t
SHIFT LEVERS SRAM X-7, aluminum 9-speed trigger
FRONT DERAILLEUR Shimano M660 SLX, 34.9mm, clamp top swing, dual pull
CHAINRINGS 22S x 32A x 44A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X-9, 9-speed, mid cage
COCKPIT
SADDLE Specialized Phenom, hollow Cr-Mo rails, SL foam, 130mm (15.5/17"") 143mm (all others)
SEATPOST 2014 butted alloy, single-bolt setback, 30.9x350/400mm
GRIPS Specialized thin lock on grip (15.5/17"") Specialized Thick lock on grip (all others)
HANDLEBARS Specialized XC flat 31.8mm, 2014 butted alloy, 6 degree backsweep, 600mm wide
STEM Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
FRONT BRAKE Custom Avid Elixir R SL, alloy backed organic pads, 160mm rotor
REAR BRAKE Custom Avid Elixir R SL, alloy backed organic pads, 160mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK Rock Shox Reba SL 29, 80mm of travel, air spring, Motion Control damper, compression and rebound adj. w/ LO

Geometry

Geometry Chart

Stumpjumper - Geometry

  17 18 19 21 23
Stem Length 90mm 105mm 105mm 120mm 120mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 600mm 600mm 600mm 600mm 600mm
Chainstay Length 440mm 440mm 440mm 440mm 440mm
Top Tube Length (Actual) 553mm 576mm 590mm 614mm 637mm
Top Tube Length (Horizontal) 565mm 605mm 620mm 645mm 665mm
Head Tube Angle - Low Setting 71° 71° 71° 71° 71°
Standover Height 780mm 795mm 818mm 855mm 882mm
Wheel Base 1067mm 1096mm 1113mm 1139mm 1159mm
Head Tube Height 90mm 100mm 100mm 110mm 130mm
Seat Tube Angle (Actual) - Low Setting 72.5° 72° 72° 72° 72°
Seat Tube Length - Center to Top 394mm 457mm 483mm 533mm 584mm
Seat Tube Angle (Effective) - Low Setting 73.5° 73.5° 73.5° 73.5° 73.5°
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm 304mm
