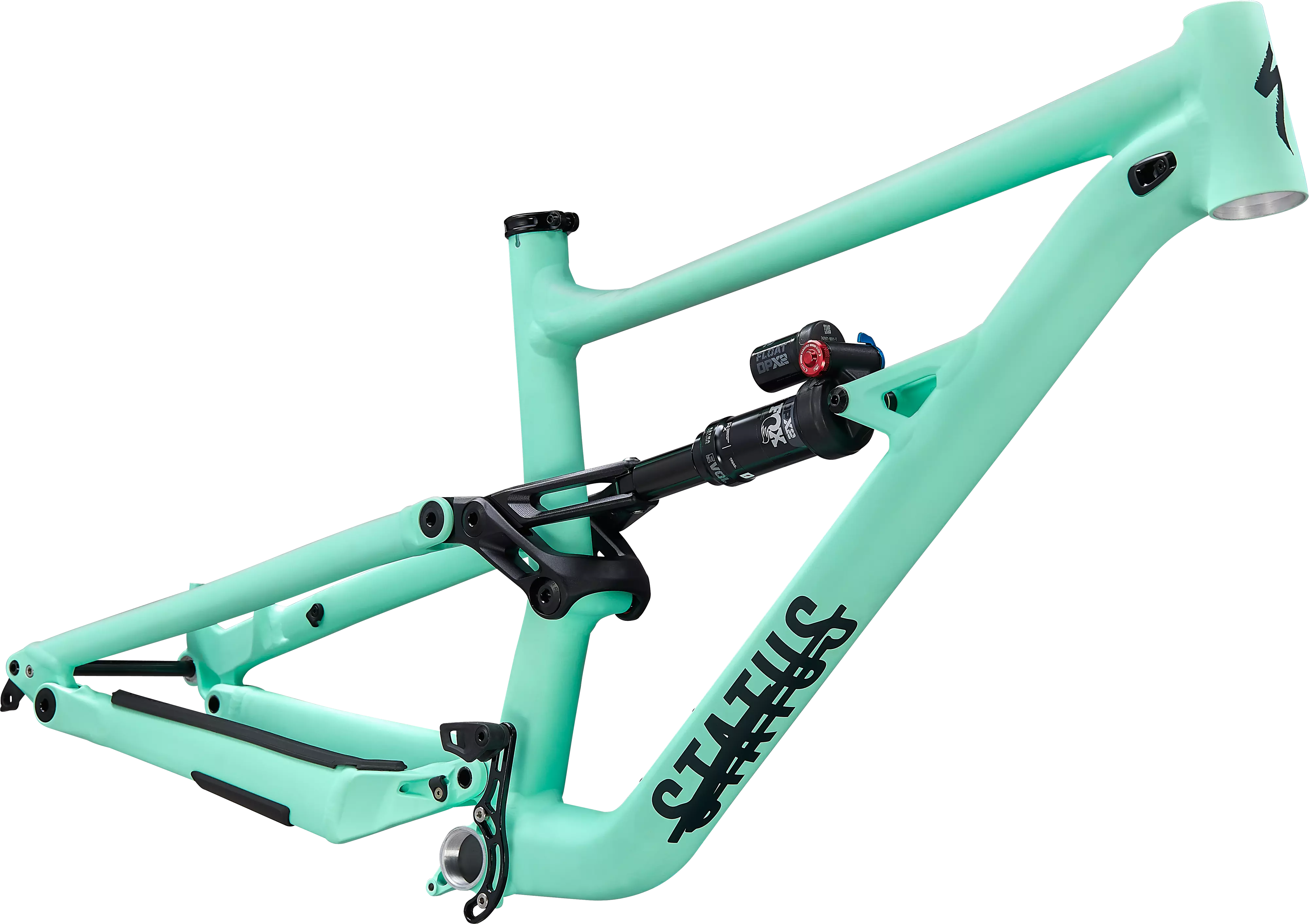

Status 140 Frameset

Icon

Status 140 Frameset

Delivery Icon

We deliver! Just say when and how.

We’ll leave it up to you to fine-tune your fun as you see fit with the Status 140 frameset. Fast and furious, smooth and stylish, or somewhere in the middle, you know the build that fits the bill, so have at it.

Whether it’s to have another go at that new line or one last pass on that feature just to make sure you got the perfect shot, the Status’s durable M5 alloy construction is designed to take any punishment you throw at it with a smile.

Far from giving the Status a split personality, its mixed wheel-size design gives it a single-minded focus on fun with a 29-inch wheel up front bringing plenty of cornering traction to the table, while the short, 27.5-inch-optimized rear end whispers in your ear to whip right over that table.

Technical Specifications

Add Icon

Frameset

Frame

M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel

Seat Binder

Specialized bolt-type, alloy, 38.6mm

Suspension

Rear Shock

2021, FLOAT DPX2, P-S, A, 3pos, Evol LCR, Specialized, Status 140, 210, 52.5, 0.9 Spacer, CCF002, RLA018, Rezi M2+ L M+, Standard Logo, N/M

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S1S2S3S4S5
Stack (low BB)604mm609mm618mm627mm636mm
Reach (low BB)415mm440mm465mm490mm515mm
Head-Tube Length100mm105mm115mm125mm135mm
Head-Tube Angle (low BB)63.7°63.7°63.7°63.7°63.7°
Head-Tube Angle64.2mm64.2mm64.2mm64.2mm64.2mm
B-B Height (low BB)333mm333mm333mm333mm333mm
B-B Height342mm342mm342mm342mm342mm
B-B Drop (low BB)22.5mm22.5mm22.5mm22.5mm22.5mm
B-B Drop13.5mm13.5mm13.5mm13.5mm13.5mm
Trail (low BB)137mm137mm137mm137mm137mm
Fork Length (full)547mm547mm547mm547mm547mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front-Center (low BB)743mm770mm799mm829mm858mm
Chain-Stay Length426mm426mm426mm426mm426mm
Wheelbase1168mm1195mm1224mm1254mm1283mm
Seat-Tube Length400mm400mm420mm440mm465mm
Seat-Tube Angle76mm76mm76mm76mm76mm
Geometry

Rider Reviews

  • 4
  • 1 Reviews

Status following

I have been riding a 2022 Status 140 S4 for a couple of years now and this bike does it all , Its a lot of fun downhill with the mullet setup . Corners great with the 29 up front and the 27.5 in the rear . It's a great value for the money if you could only buy one bike . It has a lot of quality components.

Would Recommend?
Yes!

Name:
Chris

Helpful?
