Specialized Edition Allez Sprint X1
Overview
Technical Specifications
Geometry
Reviews

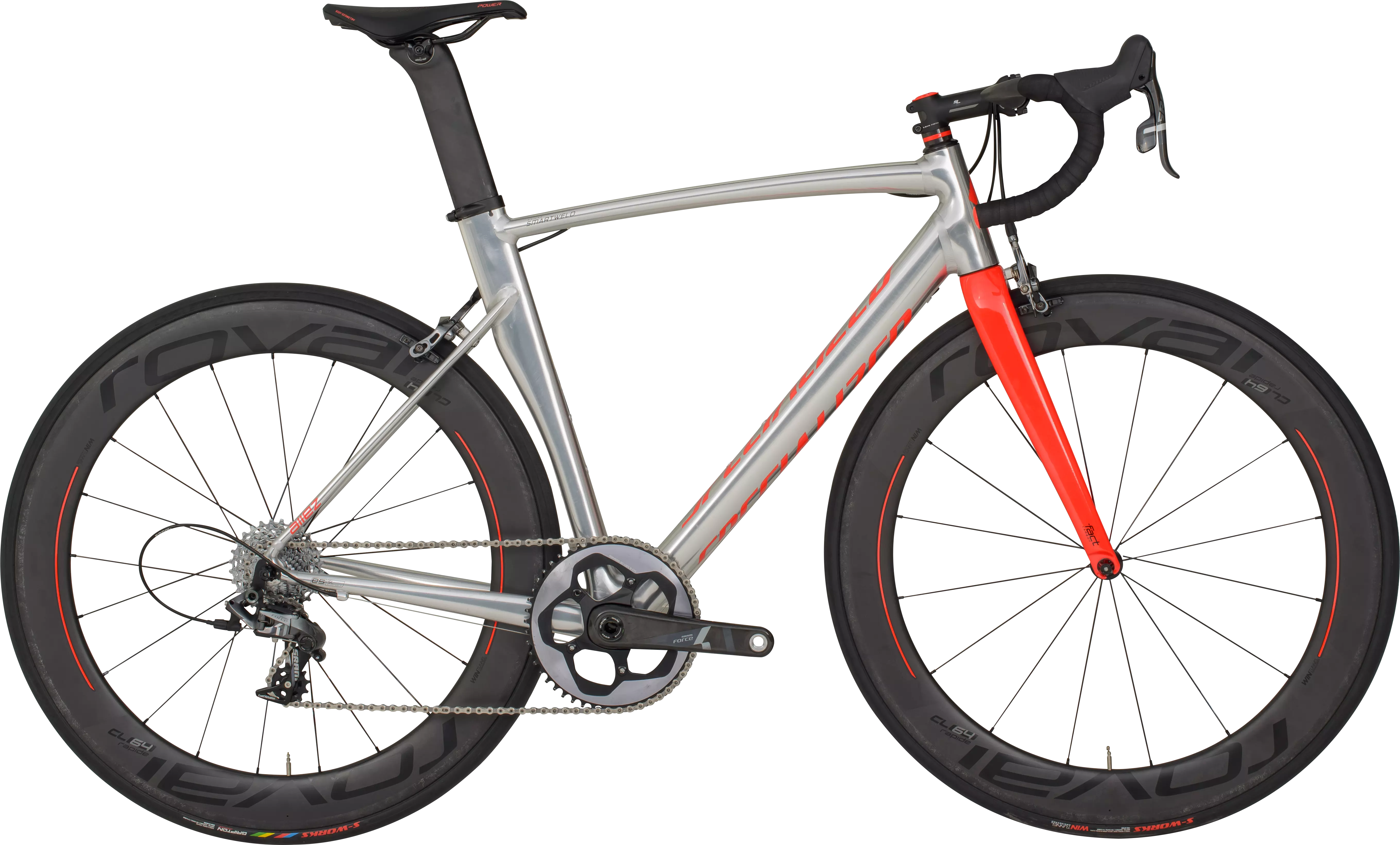

The Specialized Edition Allez Sprint X1 is one of the most advanced alloy road bikes we've ever made, designed with the singular focus of being the ultimate, crit-racing weapon. At the heart of the Specialized Edition Allez Sprint X1 is DSW Sprint Technology, which strategically places more welding material where it's needed resulting in an aluminum bike that is more compliant and much stiffer. How stiff? It's the stiffest alloy bike we've ever tested. Drawing inspiration from the Rider-First Engineered Tarmac, the Specialized Edition Allez Sprint X1 has unique down tube, bottom bracket shell, head tube, and fork sizes for corresponding frame sizes ensuring uniformed performance across the entire size run.

Making sure every single watt you produce gets transferred to the road, the Specialized Edition Allez Sprint X1 has shorter chainstays creating an extremely stiff and rigid rear triangle. But it goes beyond just pure stiffness, the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind. Thanks to the uniquely manipulated tube designs, the Specialized Edition Allez Sprint X1 can save you 1.3 meters in the final 200 meters of a sprint—more than enough for a proper victory celebration.
  • E5 Premium Aluminum frame with Allez D'Aluisio Smartweld Sprint Technology refocuses weld locations, allowing for more material to be placed where it's needed for increased stiffness and compliance where you really need it.
  • The SRAM Force 1 single-ring crankset is the ultimate in one-by simplicity, providing seamless, efficient power transfer.
  • Our top-tier S-Works FACT carbon fiber fork provides incredible stiffness and front end steering response, while also efficiently absorbing road chatter.

Technical Specifications

Technical Specifications

FRAMESET
SEAT BINDER Allez Sprint
HEADSET 1-1/8"" upper, size-specific lower
FORK S-Works FACT carbon, full monocoque, size-specific taper
FRAME Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
DRIVETRAIN
CHAIN SRAM PC-1170, 11-speed
CRANKSET SRAM Force 1, 50T
CASSETTE SRAM PG-1170, 11-speed, 11-28t
SHIFT LEVERS SRAM Force 1
REAR DERAILLEUR SRAM Force 1, 11-speed
COCKPIT
SADDLE Body Geometry Power Expert, hollow Ti rails, 143mm
TAPE Specialized Roubaix
SEATPOST Specialized Venge, FACT carbon
HANDLEBARS S-Works Aerofly
STEM Specialized Pro SL, alloy, 4-bolt
BRAKES
BRAKE LEVERS SRAM Force 1
FRONT BRAKE SRAM Force
REAR BRAKE SRAM Force
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL Roval CL 64
INNER TUBES Standard, Presta valve
FRONT TIRE S-Works Turbo, 120TPI, folding bead, BlackBelt protection, 700x24mm
REAR TIRE S-Works Turbo, 120TPI, folding bead, BlackBelt protection, 700x24mm
FRONT WHEEL Roval CL 64

Geometry

Geometry Chart

Allez - Geometry

  49 52 54 56 58 61
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 330mm 330mm 330mm 330mm 330mm 330mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 375mm 380mm 385mm 395mm 400mm 405mm
Stack 502mm 514mm 533mm 554mm 583mm 604mm
Wheelbase 959mm 961mm 972mm 984mm 997mm 1005mm
Bike Stand-Over Height 732.3mm 745.8mm 765.5mm 784.3mm 808.3mm 833.8mm
Head-Tube Length 100mm 110mm 130mm 150mm 180mm 200mm
Front-Center 564mm 566mm 577mm 589mm 602mm 608mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 63mm 58mm 58mm 55mm 55mm 52mm
B-B Height 272.5mm 272.5mm 272.5mm 272.5mm 272.5mm 272.5mm
Chain-Stay Length 405mm 405mm 405mm 405mm 405mm 407mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 74° 74° 74° 74° 74° 74°
B-B Drop 69mm 69mm 69mm 69mm 69mm 69mm
Seat-Tube Length 460mm 480mm 500mm 520mm 540mm 570mm
Top-Tube Length (horizontal) 519mm 527mm 538mm 554mm 567mm 578mm
