Source Elite Step-Through
Overview
Technical Specifications
Geometry
Reviews

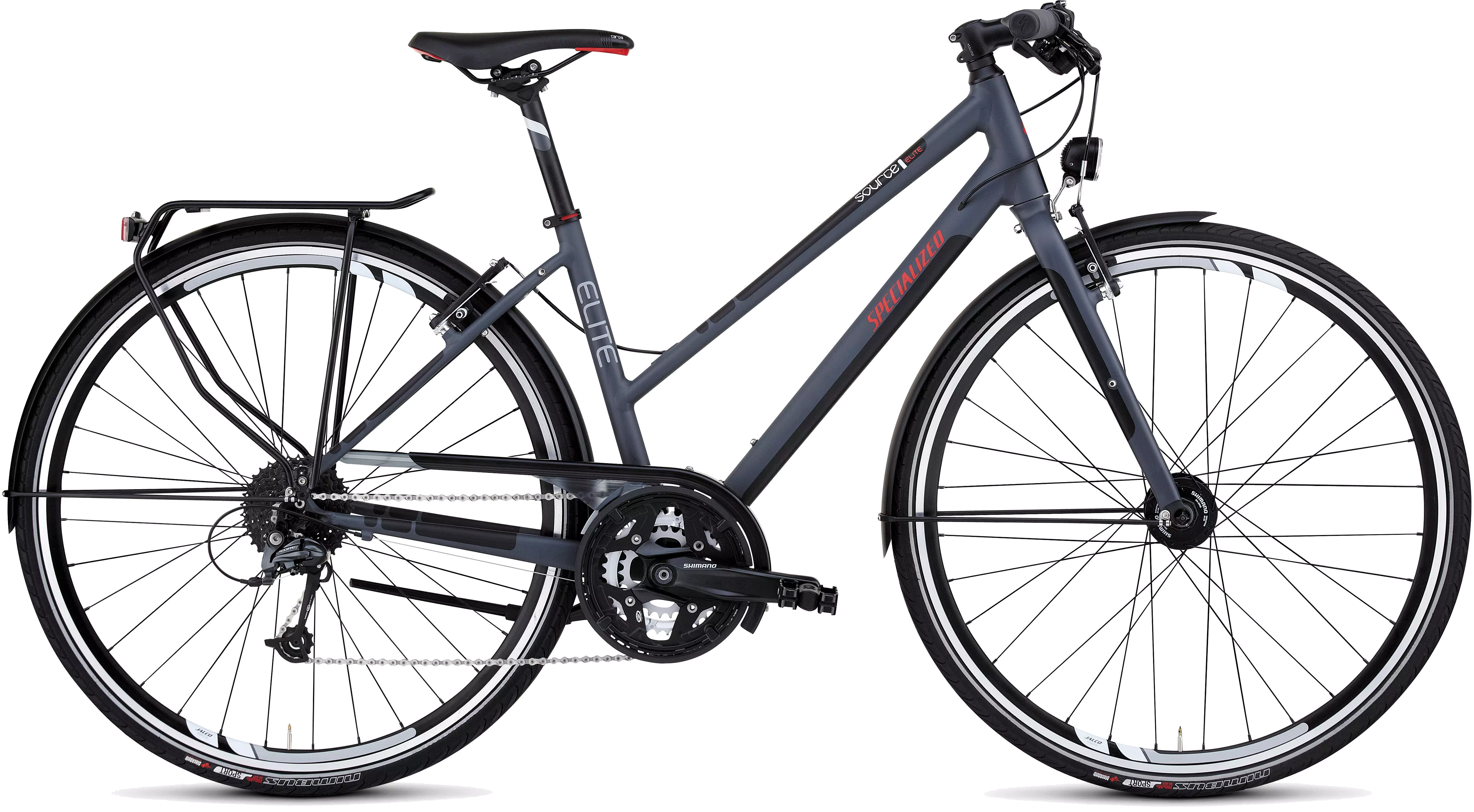

A true multi-tasker for anything from commuting to a loaded weekend camping trek down the coast, the Source Elite does it all anytime, anywhere. Equipped with integrated lights, rack, and fenders, this step-through frame adds convenience, and a 27-speed Shimano drivetrain provides efficiency and versatility in any terrain.
  • Hermanns H-Diver Sensor headlights with Sensor for automatic on/off function and clip on reflector plus B&M Toplight Mini taillight to keep you safe on the road anytime
  • Super light and compact Racktime hollow alloy rack with Racktime snap-in accessories system and hidden fender attachment, max load 25kg
  • Shimano dynamo hub powers headlight system without the hassle of batteries.
  • Straight alloy-blade fork with fender mounts saves weight and adds durability to manage potholes and rough roads
  • Body Geometry Riva Women's Sport saddle features generous padding for all-day performance and comfort
  • Body Geometry Targa lock on grips help alleviate hand pain and tingling fingers
  • Horn Catena 08 alloy co-molded chainguard protects you from the chainwheel
  • BlackBelt protection and a grooved tread make the 32c Specialized Nimbus Sport tires with reflective strip perfect for city or open road use
  • Shimano triple crankset with Octalink spline for optimal power transfer and durability, plus black alloy chainguard with BB mounting bracket for clean commuting
  • Super light E5 fully-manipulated alloy frame for high speed, low-fuss, and great versatility: tapered head tube, internal routing, rack/fender mounts, and center kickstand attachment

Technical Specifications

DRIVETRAIN
CHAIN KMC X9 nickel plate, reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm
CRANKSET Shimano Alivio, Octalink, w/ chainguard
FRONT DERAILLEUR Shimano Acera, 31.8mm clamp, top swing, dual pull
SHIFT LEVERS Shimano Acera Rapidfire, 9-speed
CASSETTE Shimano CS HG-30-9, 9-speed, 11-34
CHAINRINGS 48/38/28, w/ chainguard
REAR DERAILLEUR Shimano Deore
SUSPENSION
FORK Sirrus Canti, aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing
WHEELS
FRONT HUB Shimano DH-3N30QR dynamo hub, w/ QR, 32h
REAR HUB Joy Tech Aluminum, cassette, double sealed, QR 32h, with QR
INNER TUBES Presta Valve
SPOKES Stainless, 14g
FRONT TIRE Specialized Nimbus Sport, 60TPI, wire bead, reflective strip, 700x32c
RIMS DRX270, alloy double-wall, pinned, CNC machined, 32h
REAR TIRE Specialized Nimbus Sport, 60TPI, wire bead, reflective strip, 700x32c
COCKPIT
SADDLE Body Geometry Women's Riva Sport, 155mm wide
SEATPOST Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
STEM 3D forged alloy, 10-degree rise, 31.8mm clamp
HANDLEBARS Specialized PG Alloy flat bar, 2014 aluminum, 6-degree back sweep, 31.8mm
GRIPS Body Geometry Contour Women's, lock-on for bar ends
BRAKES
FRONT BRAKE Alloy, linear pull, 60mm brake-pads
BRAKE LEVERS Alloy, linear pull
REAR BRAKE Alloy, linear pull, 60mm brake-pads
ACCESSORIES
PEDALS Sirrus pedal, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable
FRAMESET
HEADSET 1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer with 25mm of spacers
SEAT BINDER Forged/machined alloy, 31.8 clamp ID,
FRAME Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact design, internal cable routing, integrated headset, fender/rack eyelets, center kickstand plate

Geometry

Geometry Chart

- Geometry

SM MD LG
  SM MD LG
Crank Length 170mm 170mm 170mm
Stem Length 75mm 90mm 100mm
Handle-Bar Width 580mm 580mm 580mm
Wheelbase 1052mm 1053mm 1057mm
Seat-Tube Length, B-B Center to Top 395mm 440mm 475mm
Head-Tube Length 130mm 150mm 165mm
Top-Tube Length, Horizontal 535mm 550mm 565mm
Front-Center 616mm 617mm 622mm
Head-Tube Angle 70° 71° 71°
Stand-Over Height 619mm 628mm 628mm
Fork Rake 51mm 51mm 51mm
Trail 73mm 67mm 67mm
Chain-Stay Length 445mm 445mm 445mm
Seat-Tube Angle 74.5° 74° 73°
B-B Drop 70mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm
