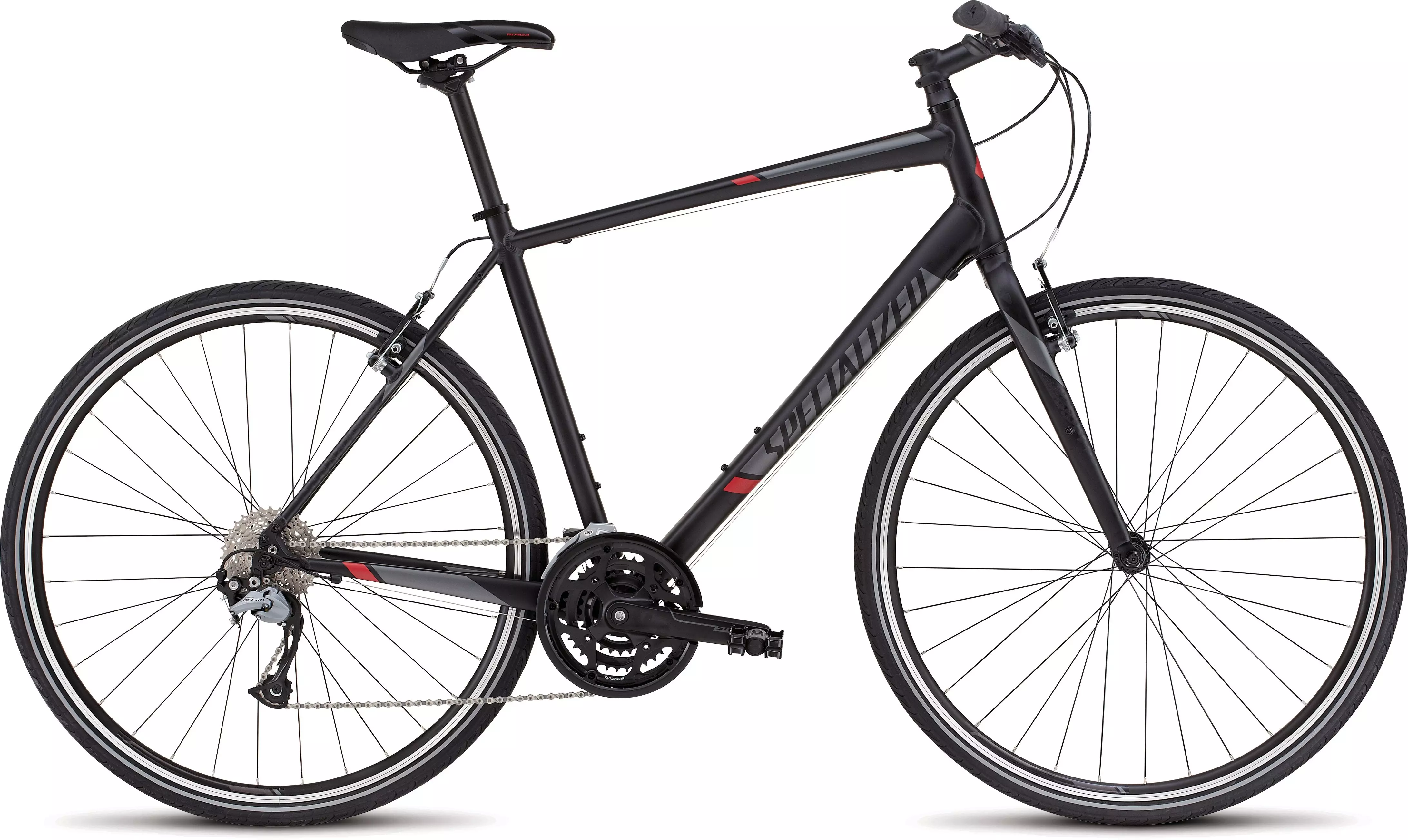

Fitness is not a fad, and the Sirrus proves you're taking your fitness journey seriously. The Sirrus Sport combines our premium aluminum frame with a durable component package and easy-to-maintain rim brakes to deliver a comfortable and fast ride. As you push yourself to reach your goals, the Sirrus will be a powerful ally to have on your health and wellbeing team.
  • The reliable and sturdy, A1 Premium Aluminum frame features rack and fender mounts, allowing you to carry gear or to fend off road spray in inclement weather.
  • Reflective graphics are strategically located on the bike in order to increase your visibility to other riders and motorists in low-light conditions.
  • Wide and stable-handling 700x32mm Specialized Nimbus Reflect tires have a fast and smooth tread, reflective sidewall, and feature Flak Jacket puncture protection.
  • The frame is engineered and designed with Fitness Geometry, helping you ride more efficiently in a position that will see you riding comfortably, mile-after-mile, while the Body Geometry Targa Sport saddle is designed for fitness riders and assures blood flow to sensitive arteries.

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC X9, 9-speed, w/ reusable MissingLink
BOTTOM BRACKET Square taper, cartridge bearings
CRANKSET Specialized Stout, forged alloy, 48/36/26T, w/ chainguard
FRONT DERAILLEUR Shimano Altus, top swing, dual pull
SHIFT LEVERS Shimano Altus EZ Fire Plus, 9-speed
CASSETTE Shimano, 9-speed, 11-32t
REAR DERAILLEUR Shimano Acera, 9-speed
WHEELS
FRONT HUB Double-sealed, QR, 32h
REAR HUB Double-sealed, QR, 32h
SPOKES Stainless, 14g
RIMS Alloy, double-wall
FRONT TIRE Specialized Nimbus Reflect, 26TPI, Flak Jacket protection, 700x32mm
REAR TIRE Specialized Nimbus Reflect, 26TPI, Flak Jacket protection, 700x32mm
COCKPIT
SADDLE Body Geometry Targa Sport, steel rails, SWAT compatible mounts, 155mm
TAPE Specialized Body Geometry Targa, lock-on, closed end
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS Specialized, flat bar, double-butted 6061 alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm
BRAKES
FRONT BRAKE V-brake, linear pull, 60mm pads
BRAKE LEVERS Shimano, V-brake
REAR BRAKE V-brake, linear pull, 60mm pads
ACCESSORIES
PEDALS Nylon body, steel cage, w/ reflectors
FRAMESET
HEADSET FSA, Campy style, integrated cartridge bearings, external sealed upper bearings, 15mm cone spacer
SEAT BINDER Alloy, 31.8mm
FORK Specialized A1 Premium Aluminum, Cr-Mo steerer, fender/rack mounts
FRAME Specialized A1 Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, integrated lower bearing, fender/rack mounts
* Specifications are subject to change without notice

Geometry

Geometry Chart

Sirrus - Geometry

XS S M L XL
  XS S M L XL
Stem Length 80mm 90mm 100mm 100mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm
Handlebar Width 580mm 580mm 600mm 600mm 620mm
Reach 388mm 394mm 402mm 409mm 418mm
Stack 563mm 584mm 600mm 626mm 659mm
Wheelbase 1056mm 1065mm 1073mm 1082mm 1103mm
Bike Stand-Over Height 716mm 750mm 786mm 821mm 859mm
Head-Tube Length 130mm 150mm 165mm 190mm 225mm
Front-Center 621mm 629mm 637mm 647mm 667mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Head-Tube Angle 70.5° 71° 71.5° 72° 72°
Trail 70mm 67mm 64mm 60mm 60mm
B-B Height 281mm 281mm 281mm 281mm 281mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Fork Length (full) 410mm 410mm 410mm 410mm 410mm
Seat-Tube Angle 73.5° 73.3° 73.5° 73° 73°
B-B Drop 70mm 70mm 70mm 70mm 70mm
Seat-Tube Length 395mm 440mm 485mm 530mm 570mm
Top-Tube Length (horizontal) 555mm 570mm 580mm 600mm 620mm
