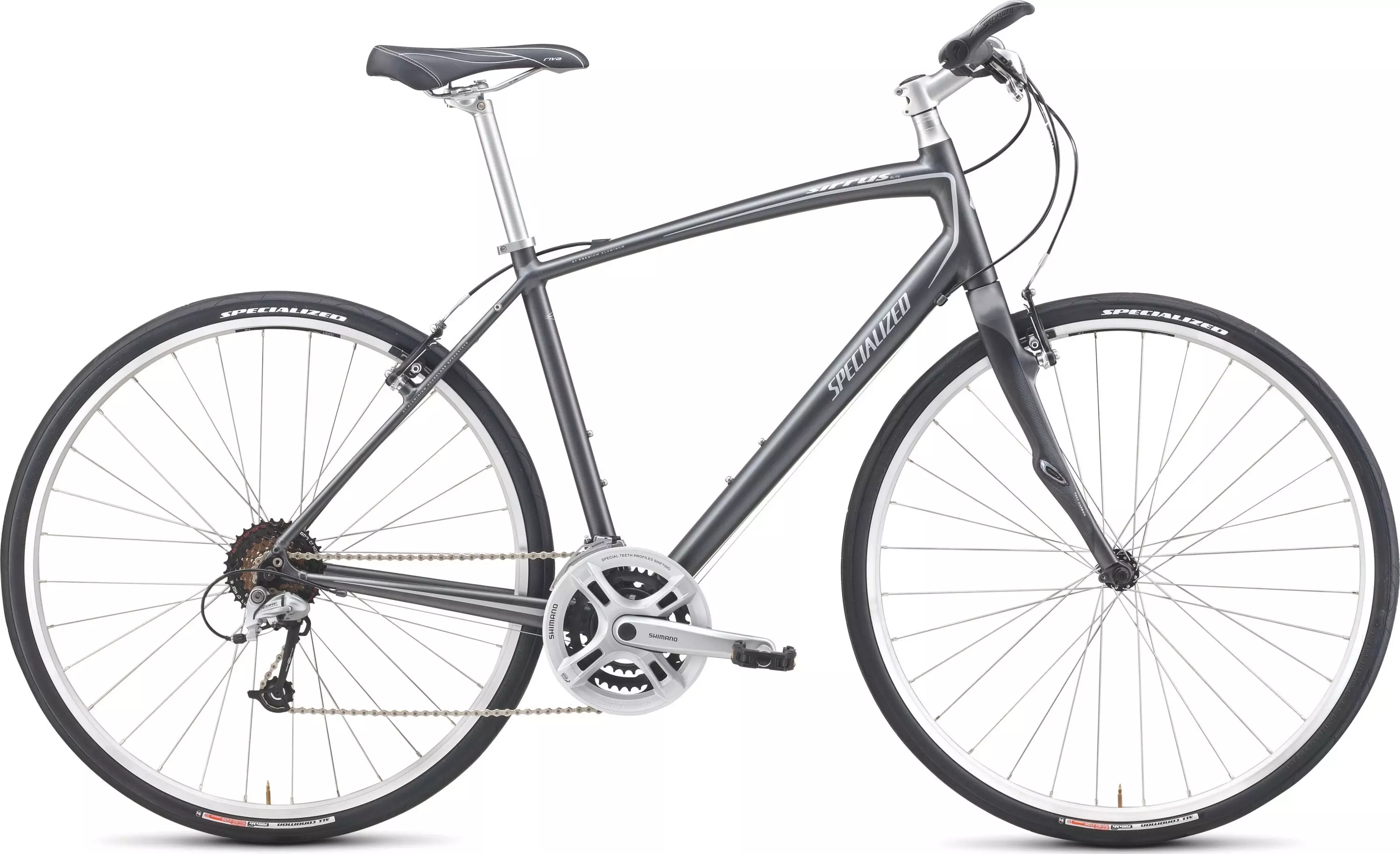

Sirrus Elite
$700.00
Part No.

Sirrus Elite

$700.00
Part No.  23491
load-spinner
Sirrus Elite
Overview
Technical Specifications
Geometry
Reviews
The Sirrus Elite receives a wide range of nice touches, especially with its FACT carbon fork with vibration damping Zertz inserts for a smoother ride.
  • High-value Shimano Deore rear derailleur delivers the perfect shift every time
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Body Geometry Riva Road saddle combines lightweight hollow Cr-Mo rails and generous padding for all-day performance and comfort
  • Body Geometry triple-density gel grips alleviate hand pain and tingling fingers and come with bar ends for changing hand position
  • FACT carbon/alloy fork with Zertz inserts for a quick, responsive road feel and forgiving ride, rack/fender mounts for versatility
  • Lightweight A1 Premium Aluminum double butted alloy frame with forgiving hourglass seatstays provides the perfect balance of performance and comfort, enough clearance for fenders

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers
FORK Specialized FACT carbon legs, aluminum crown & steerer, fender eyelets
FRAME Specialized A1 Premium aluminum, fully manipulated tubing, smooth weld compact design, internal cable routing , integrated headset,fender and rack eyelets
WHEELS
FRONT HUB Forged aluminum, sealed bearing, QR, 32h
REAR HUB Forged alloy, double-sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
RIMS Alex AS-14, double wall
FRONT TIRE Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
REAR TIRE Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
DRIVETRAIN
BOTTOM BRACKET Sealed cartridge, square taper, 68mm
CHAIN KMC Z-51
CRANKSET Shimano FCM171
CASSETTE Shimano HG-40, 8-speed, 11-32t
SHIFT LEVERS Shimano EF-51, EZ Fire
FRONT DERAILLEUR Shimano Altus
CHAINRINGS 48 x 38 x 28T w/ chainguard
REAR DERAILLEUR Shimano Deore
COCKPIT
SADDLE Body Geometry Riva Road, 155mm width
TAPE Body Geometry locking Comfort Grips open-end with plug, alloy barend
SEATPOST Specialized Sport, alloy, two-bolt clamp, 27.2mm
HANDLEBARS Specialized Sirrus Elite, 6061 aluminum, small riser, 31.8mm
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS Shimano EF-51 integrated w/ shifter
FRONT BRAKE Forged 6061 aluminum, 85mm linear pull w/ cartridge pads
REAR BRAKE Forged 6061 aluminum, 85mm linear pull w/ cartridge pads
ACCESSORIES
PEDALS Composite flat pedal

Geometry

Geometry Chart

Sirrus - Geometry

XS S M L XL
  XS S M L XL
Stem Length 90mm 100mm 100mm 110mm 120mm
Crank Length 170mm 170mm 175mm 175mm 175mm
Handle-Bar Width 580mm 580mm 580mm 580mm 580mm
Wheelbase 1042mm 1038mm 1055mm 1056mm 1066mm
Seat-Tube Length, B-B Center to Top 430mm 470mm 500mm 530mm 570mm
Head-Tube Length 135mm 155mm 185mm 215mm 250mm
Top-Tube Length, Horizontal 530mm 545mm 560mm 580mm 600mm
Front-Center 614mm 613mm 619mm 630mm 641mm
Head-Tube Angle 70° 71.25° 71.5° 72° 72.5°
Fork Rake 51mm 51mm 51mm 51mm 51mm
Trail 73mm 65mm 63mm 60mm 57mm
Stand-Over Height 742mm 774mm 806mm 832mm 868mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Seat-Tube Angle 76° 75° 74° 73.5° 73°
B-B Drop 76mm 74mm 70mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm
