Sirrus Elite

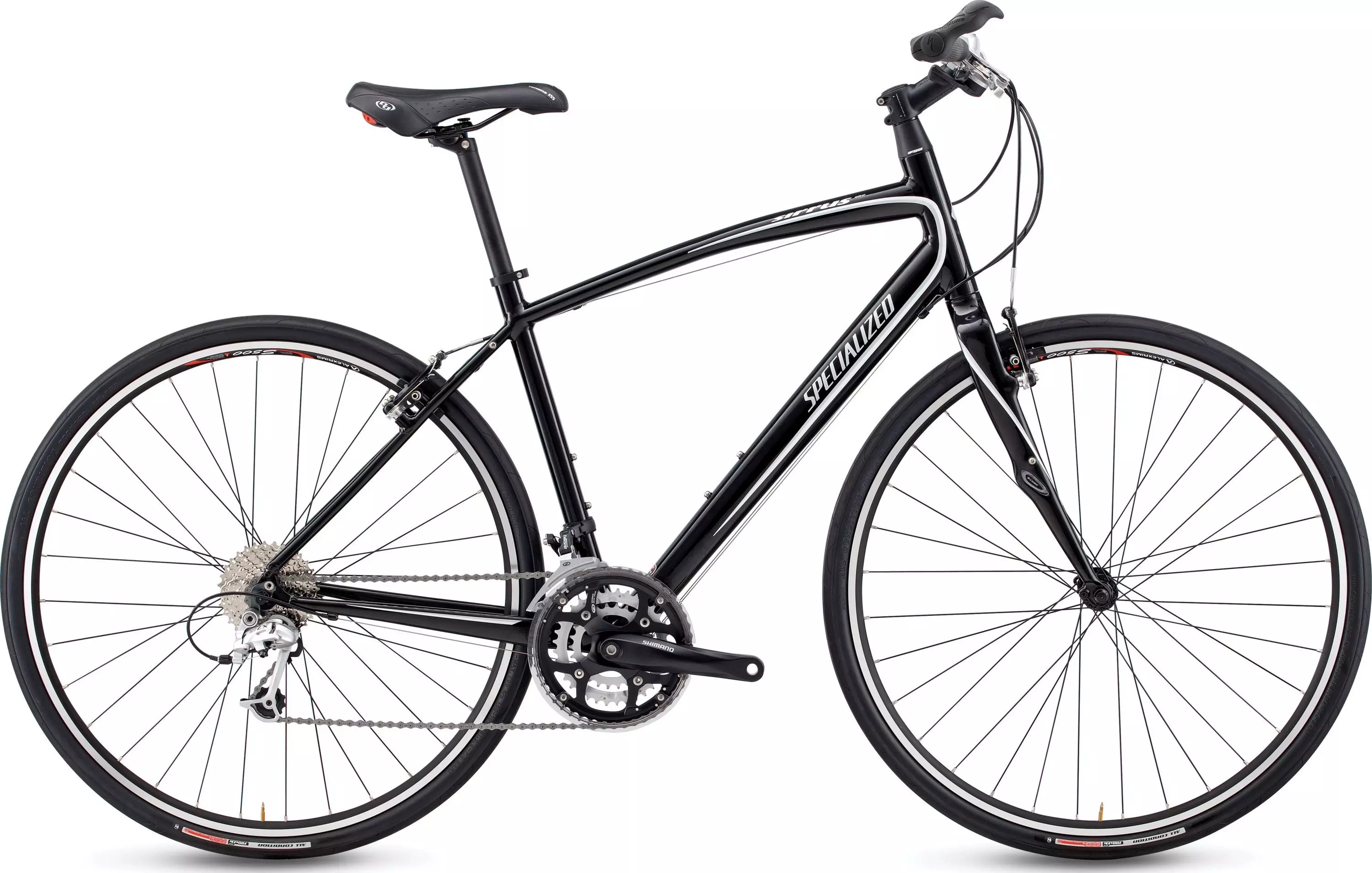

2010 Sirrus Elite
Technical Specifications
FRAMESET
FRAME
Specialized Sirrus A1 Premium aluminum, fully manipulated tubing, compact design, hourglass speedstays, integrated headset
FORK
Sirrus carbon legs & crown, alloy steerer
HEADSET
Cage bearings integrated HS. w/ 20mm of spacers w/ top cap
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
Alex S500, aluminum, sleeve joint, CNC machined sidewalls
FRONT HUB
Forged alloy, sealed, QR, 32h
REAR HUB
Forged alloy, double-sealed, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore
REAR DERAILLEUR
Shimano Deore LX
SHIFT LEVERS
Shimano LX Rapidfire
CASSETTE
Shimano HG-50, 9-speed, 12-25t
CHAIN
HG-73
CRANKSET
Shimano FC-R443
CHAINRINGS
48 x 38 x 28T
BOTTOM BRACKET
Octalink
COCKPIT
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Sirrus Elite, 6061 aluminum, small riser, 31.8mm
TAPE
Body Geometry Comfort Grips open-end with plug, alloy barend
SADDLE
Body Geometry Sonoma, 155mm width
SEATPOST
Alloy, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
REAR BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
BRAKE LEVERS
Forged alloy
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75° | 74° | 73.5° | 73° |
| Head-Tube Length | 135mm | 155mm | 185mm | 215mm | 250mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 71.25° | 71.5° | 72° | 72.5° |
| Chain-Stay Length | 440mm | 435mm | 435mm | 435mm | 435mm |
| Top-Tube Length, Horizontal | 530mm | 545mm | 560mm | 580mm | 600mm |
| Front-Center | 614mm | 613mm | 619mm | 630mm | 641mm |
| Handle-Bar Width | 620mm | 620mm | 620mm | 620mm | 620mm |
| Stand-Over Height | 727mm | 763mm | 796mm | 824mm | 860mm |
| Seat-Tube Length, B-B Center to Top | 400mm | 445mm | 480mm | 515mm | 565mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 76mm | 74mm | 70mm | 70mm | 70mm |
| Trail | 73mm | 65mm | 63mm | 60mm | 57mm |
| Wheelbase | 1042mm | 1038mm | 1045mm | 1056mm | 1066mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 120mm |
