Sirrus Elite Disc
$990.00
Part No.

Sirrus Elite Disc

$990.00
Part No.  49652
load-spinner
Sirrus Elite Disc
Overview
Technical Specifications
Geometry
Reviews

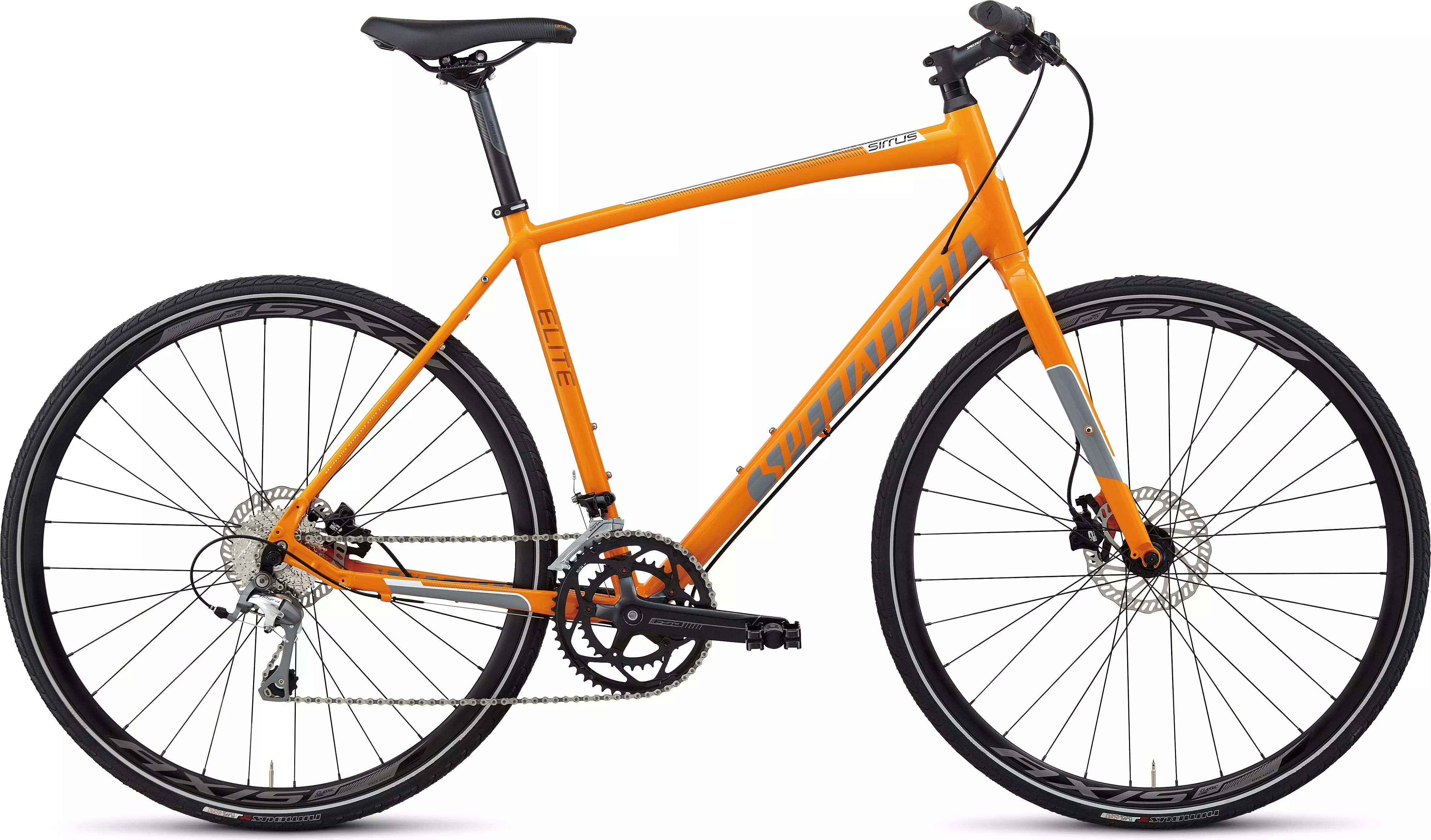

The Sirrus Elite Disc provides road bike geometry with flat bar handling so you can ride fast on longer rides, but also be stable and quick in town. The hydraulic disc brakes mean you'll have confidence to ride regardless of the weather or what you're carrying on your racks.
  • Strong and light AXIS Classic Disc wheels
  • Super light fully-manipulated E5 Premium Aluminum frame is built for high speed, low-fuss, and great versatility, with tapered headtube, internal routing, rack/fender mounts, and wide tire clearance
  • Premium Aluminum disc fork with Cr-Mo steerer, with fender mounts and ample tire clearance for added versatility
  • Flak Jacket protection and a grooved tread make the Specialized Nimbus tires perfect for city or open road use
  • FSA 9-speed compact crankset with 50/34 configuration provides ample gearing and crisp shifting
  • Strong, reliable, Tektro Draco hydraulic disc brakes for sure stopping and control in any weather with any load
  • Body Geometry Targa gel grips lock on and help alleviate hand pain and tingling fingers

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" FSA Campy style, integrated cartridge, 15mm alloy cone spacer
FORK Sirrus disc, Cr-Mo steerer, aluminum crown/lowers
FRAME Specialized E5 Premium Aluminum disc, fully-manipulated butted tubing w/ smooth welds, internal cable routing, tapered/integrated headset, fender/rack eyelets
WHEELS
REAR WHEEL AXIS Classic Disc
INNER TUBES Standard presta valve
FRONT TIRE Specialized Nimbus, 26TPI, wire bead, Flak Jacket protection, 700x28c
REAR TIRE Specialized Nimbus, 26TPI, wire bead, Flak Jacket protection, 700x28c
FRONT WHEEL AXIS Classic Disc
DRIVETRAIN
BOTTOM BRACKET Cartridge bearings, square spindle, capless bolts
CHAIN KMC X9
CRANKSET FSA Tempo, 9-speed
CASSETTE Shimano HG-50, 9-speed, 11-30
SHIFT LEVERS Shimano Sora, Rapidfire
FRONT DERAILLEUR Shimano Sora
CHAINRINGS 50/34
REAR DERAILLEUR Shimano Tiagra
COCKPIT
SADDLE Body Geometry Targa Sport, steel rails, 155mm
TAPE Specialized Body Geometry Targa, lock-on
SEATPOST Alloy, 2-bolt, 12.5mm offset, 27.2mm
HANDLEBARS Specialized flat bar, alloy, 10-degree backsweep, 31.8mm
STEM Specialized 3D forged alloy, 10-degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Tektro Draco 2, hydraulic lever
FRONT BRAKE Tektro Draco 2, hydraulic disc, 160mm rotor
REAR BRAKE Tektro Draco 2, hydraulic disc, 160mm rotor
ACCESSORIES
PEDALS Sirrus, 1.5mm Varus angle, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable

Geometry

Geometry Chart

Sirrus - Geometry

  XS SM MD LG XL
Stem Length 75mm 90mm 90mm 100mm 100mm
Crank Length 170mm 170mm 175mm 175mm 175mm
Handle-Bar Width 580mm 580mm 580mm 580mm 580mm
Wheelbase 1056mm 1065mm 1072mm 1082mm 1103mm
Seat-Tube Length, B-B Center to Top 395mm 440mm 485mm 530mm 570mm
Head-Tube Length 130mm 150mm 165mm 190mm 225mm
Top-Tube Length, Horizontal 555mm 570mm 580mm 600mm 620mm
Front-Center 620mm 629mm 637mm 646mm 667mm
Head-Tube Angle 70.5° 71° 71.5° 72° 72°
Fork Rake 51mm 51mm 51mm 51mm 51mm
Trail 69mm 66mm 63mm 60mm 60mm
Stand-Over Height 709mm 741mm 777mm 812mm 850mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Seat-Tube Angle 73.5° 73.25° 73.5° 73° 73°
B-B Drop 70mm 70mm 70mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm
