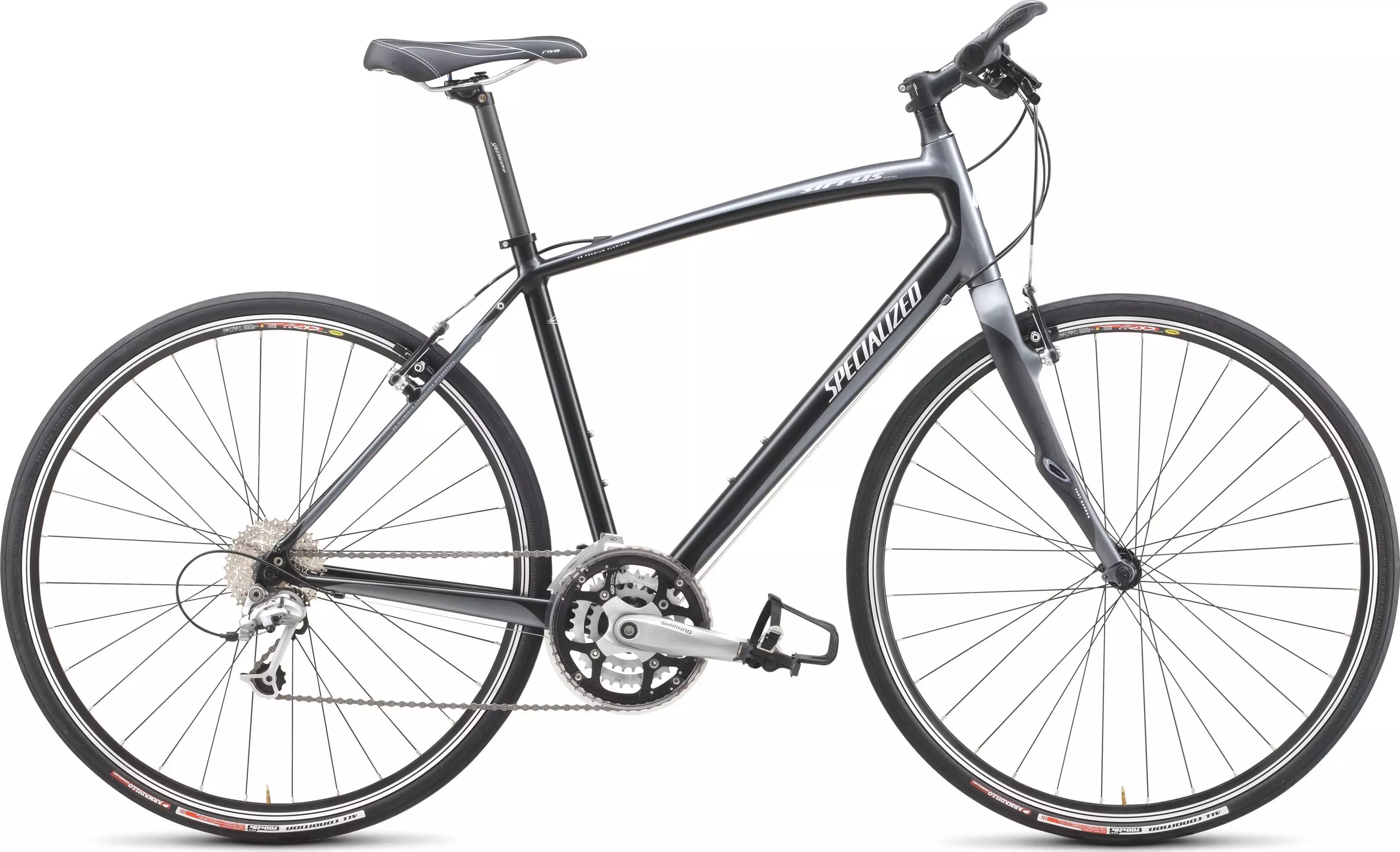

Sirrus Comp
$940.00
Part No.

Sirrus Comp

$940.00
Part No.  23489
load-spinner
Sirrus Comp
Overview
Technical Specifications
Geometry
Reviews
The Sirrus Comp benefits from the precision shifting of a Shimano Deore LX rear derailleur, and every rider will appreciate not having to stop for flat tires thanks to Armadillo technology.
  • Smooth, precise Shimano Alivio 9-speed shifters offer effortless and reliable performance
  • Body Geometry Riva Road saddle features generous padding for all-day performance and comfort
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Body Geometry triple-density gel grips alleviate hand pain and tingling fingers and come with bar ends for changing hand position
  • FACT carbon/alloy fork with Zertz inserts for a quick, responsive road feel and forgiving ride, with fender mounts for added versatility
  • Lightweight A1 Premium Aluminum double butted alloy frame with forgiving hourglass seatstays provides the perfect balance of performance and comfort, with internal cable routing and enough clearance for fenders

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers
FORK Specialized FACT carbon legs, aluminum crown & steerer, fender eyelets
FRAME Specialized A1 Premium aluminum, fully manipulated tubing, smooth weld compact design, internal cable routing , integrated headset,fender and rack eyelets
WHEELS
FRONT HUB Forged aluminum, sealed bearing, QR, 32h
REAR HUB Forged alloy, double-sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
RIMS Alex 5480 double-wall rims
FRONT TIRE Specialized All Condition Armadillo Elite, 700x28c, Aramid bead, 120TPI, w/ lightweight puncture protection
REAR TIRE Specialized All Condition Armadillo Elite, 700x28c, Aramid bead, 120TPI, w/ lightweight puncture protection
DRIVETRAIN
BOTTOM BRACKET With crankset
CHAIN HG-73
CRANKSET Shimano 443 w/ chainguard
CASSETTE Shimano Alivio, 9-speed, 11-32t
SHIFT LEVERS Shimano Alivio
FRONT DERAILLEUR Shimano Alivio, top swing
CHAINRINGS 48 x 36 x 26T
REAR DERAILLEUR Shimano Deore LX
COCKPIT
SADDLE Body Geometry Riva Road, 155mm width
TAPE Body Geometry locking Comfort Grips open-end with plug, alloy barend
SEATPOST Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
HANDLEBARS Specialized 2014 alloy, 5-degree bend
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS Tektro forged alloy
FRONT BRAKE Forged 6061 aluminum, 85mm linear pull w/ cartridge pads
REAR BRAKE Forged 6061 aluminum, 85mm linear pull w/ cartridge pads
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

Sirrus - Geometry

XS S M L XL
  XS S M L XL
Stem Length 90mm 100mm 100mm 110mm 120mm
Crank Length 170mm 170mm 175mm 175mm 175mm
Handle-Bar Width 580mm 580mm 580mm 580mm 580mm
Wheelbase 1042mm 1038mm 1055mm 1056mm 1066mm
Seat-Tube Length, B-B Center to Top 430mm 470mm 500mm 530mm 570mm
Head-Tube Length 135mm 155mm 185mm 215mm 250mm
Top-Tube Length, Horizontal 530mm 545mm 560mm 580mm 600mm
Front-Center 614mm 613mm 619mm 630mm 641mm
Head-Tube Angle 70° 71.25° 71.5° 72° 72.5°
Fork Rake 51mm 51mm 51mm 51mm 51mm
Trail 73mm 65mm 63mm 60mm 57mm
Stand-Over Height 742mm 774mm 806mm 832mm 868mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Seat-Tube Angle 76° 75° 74° 73.5° 73°
B-B Drop 76mm 74mm 70mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm
