Secteur Sport
$1,000.00
Part No.

Secteur Sport

$1,000.00
Part No.  49759
load-spinner
Secteur Sport
Overview
Technical Specifications
Geometry
Reviews

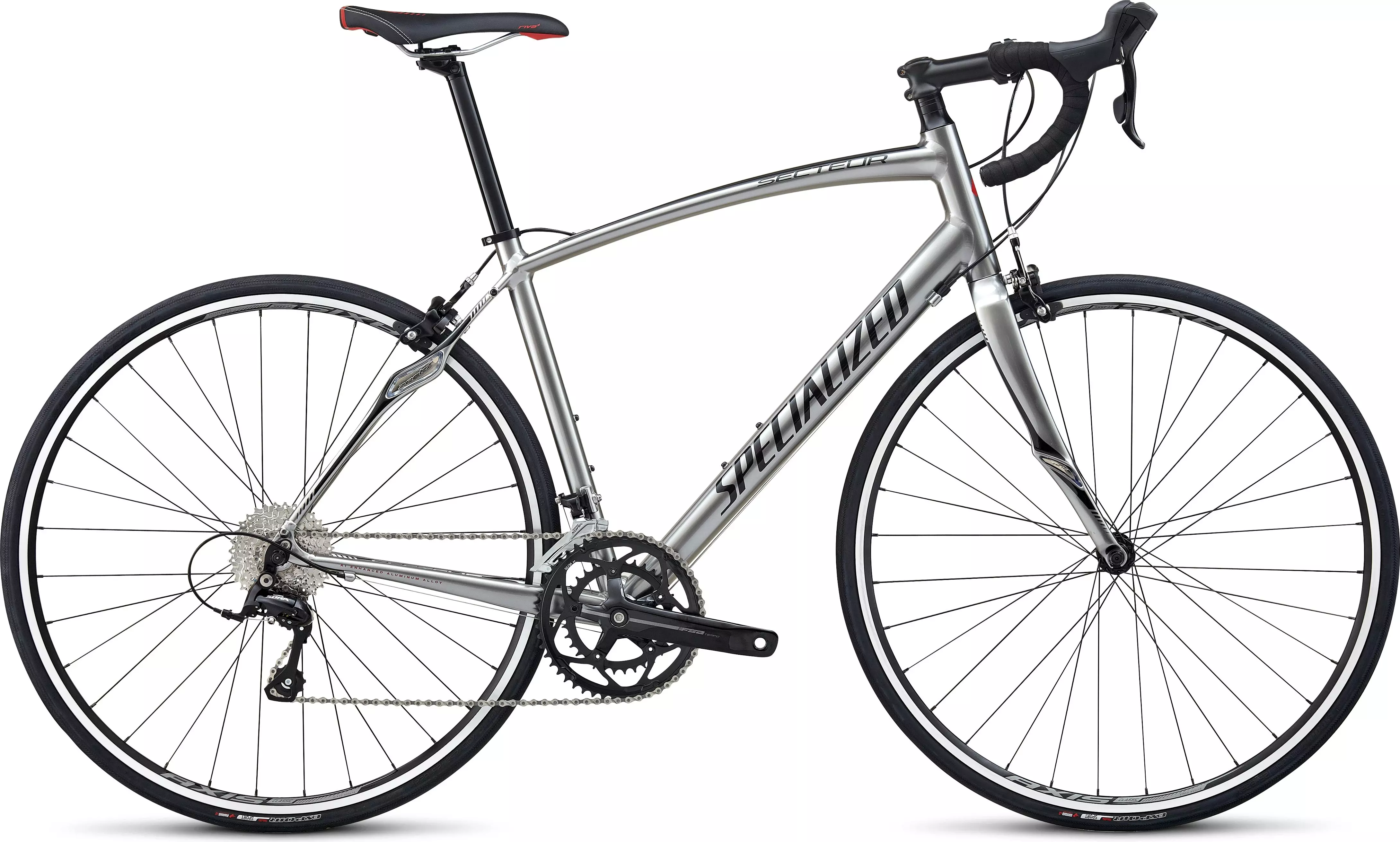

Perfect for a Gran Fondo or epic weekend ride, the Secteur Sport's Endurance Road Geometry, FACT carbon fork with vibration-absorbing Zertz, and shaped tube sets delivers a ride that's stable, smooth, and quick. The upgraded wheelset and 9-speed Shimano Sora compact drivetrain add efficiency and reliability to any road adventure.
  • Specialized Comp shallow drop alloy bar for serious performance, wrapped with non-slip Specialized Roubaix tape for vibration damping
  • Lightweight, A1 Premium Aluminum, smooth-welded, butted frame features hydroformed, shaped seatstays with Zertz for great vertical compliance and a confident ride
  • Specialized FACT carbon fork with Zertz provides predictable steering and smooth handling
  • Never miss a critical shift with Shimano Sora STI shifters
  • AXIS Classic wheels balance weight and strength, fitted with Specialized Espoir Sport tires for a smooth ride

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
FORK Specialized FACT carbon w/ Zertz inserts, alloy steerer/crown, 1-1/8""
FRAME Specialized A1 Premium Aluminum w/ Zertz inserts, fully-manipulated tubing w/ smooth welds, 1-1/8"" lower bearing
WHEELS
REAR WHEEL AXIS Classic
INNER TUBES Standard presta valve
FRONT TIRE Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
REAR TIRE Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
FRONT WHEEL AXIS Classic
DRIVETRAIN
BOTTOM BRACKET FSA, square taper, sealed cartridge bearings
CHAIN KMC X9
CRANKSET FSA Tempo, 9-speed compact
CASSETTE Shimano HG-50, 9-speed, 11-32
SHIFT LEVERS Shimano Sora STI
FRONT DERAILLEUR Shimano Sora
CHAINRINGS 50/34
REAR DERAILLEUR Shimano Sora
COCKPIT
SADDLE Body Geometry Riva Plus, Cr-Mo rails, 143mm
TAPE Specialized Roubaix, w/ 2.5mm gel pads, bar shapers
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm
HANDLEBARS Specialized Comp, shallow bend
STEM Cast alloy, 4-bolt, 31.8mm clamp
BRAKES
FRONT BRAKE Forged aluminum, dual pivot
REAR BRAKE Forged aluminum, dual pivot
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors

Geometry

Geometry Chart

Secteur - Geometry

  49 52 54 56 58 61 64
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 420mm 440mm 440mm
Reach 378mm 378mm 380mm 387mm 391mm 398mm 408mm
Wheelbase 983mm 989mm 1000mm 1010mm 1029mm 1038mm 1053mm
Stack 528mm 547mm 564mm 590mm 622mm 643mm 657mm
Seat-Tube Length, B-B Center to Top 418mm 447mm 466mm 485mm 510mm 535mm 575mm
Head-Tube Length 125mm 145mm 165mm 190mm 225mm 245mm 260mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm 615mm
Front-Center 582mm 588mm 595mm 606mm 621mm 628mm 643mm
Head-Tube Angle 72° 72° 72° 72.5° 72.5° 73° 73°
Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm 49mm
Trail 59mm 59mm 59mm 56mm 56mm 53mm 53mm
Stand-Over Height 730mm 756mm 776mm 798mm 829mm 851mm 877mm
Chain-Stay Length 412mm 412mm 415mm 415mm 418mm 420mm 420mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
B-B Drop 73mm 73mm 71.5mm 71.5mm 70mm 70mm 70mm
Seat-Post Length 350mm 350mm 350mm 350mm 350mm 350mm 350mm
