Secteur Comp Compact

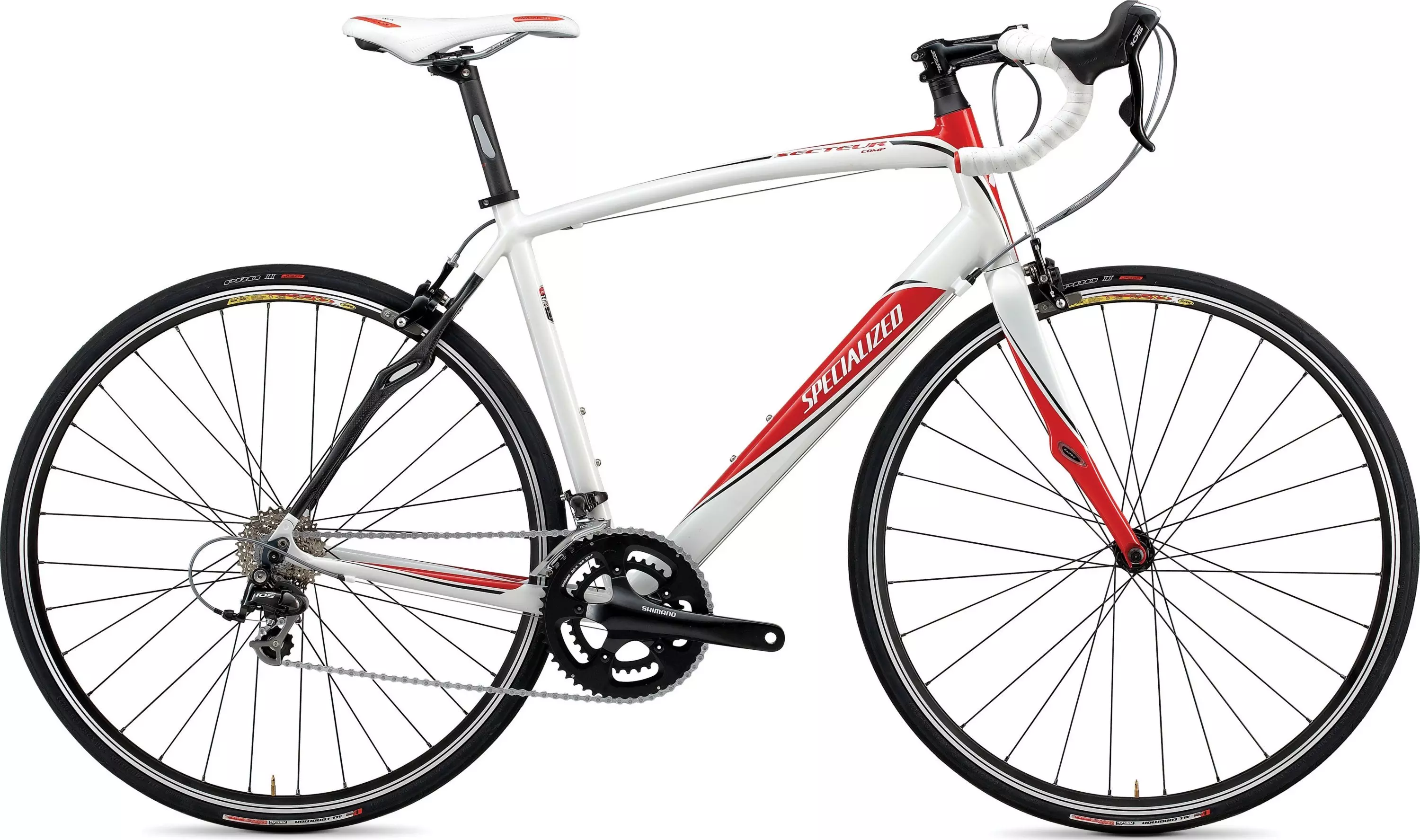

2010 Secteur Comp Compact
Technical Specifications
FRAMESET
FRAME
Specialized Secteur E5 aluminum, double-butted, compact design, integrated headset
FORK
Secteur carbon, alloy crown and steerer, rack eyelets w/ Zertz inserts
HEADSET
Cage bearings integrated HS. w/ 20mm of spacers w/ top cap
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR HUB
Forged alloy, sealed, 32h, for J bend round spokes
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Pro II, 700x25c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Pro II, 700x25c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
RIMS
Mavic CXP-22 S, aluminum triple-wall, sleeve joint, CNC machined sidewalls, w/ eyelets
FRONT HUB
Forged alloy, sealed, 28h for J bend round spokes
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
SHIFT LEVERS
Shimano 105 STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed, 12-27t
CHAIN
KMC X10 CP
CRANKSET
Shimano FC-R600
CHAINRINGS
50 x 34T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Comp Ergo, 6061 alloy
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry Avatar Gel w/ hollow Cr-Mo rails
SEATPOST
Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
REAR BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
BRAKE LEVERS
Shimano 105 STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 741mm | 767mm | 786mm | 805mm | 825mm | 852mm |
| Seat-Tube Length, B-B Center to Top | 440mm | 475mm | 495mm | 515mm | 535mm | 565mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Trail | 60mm | 60mm | 60mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
