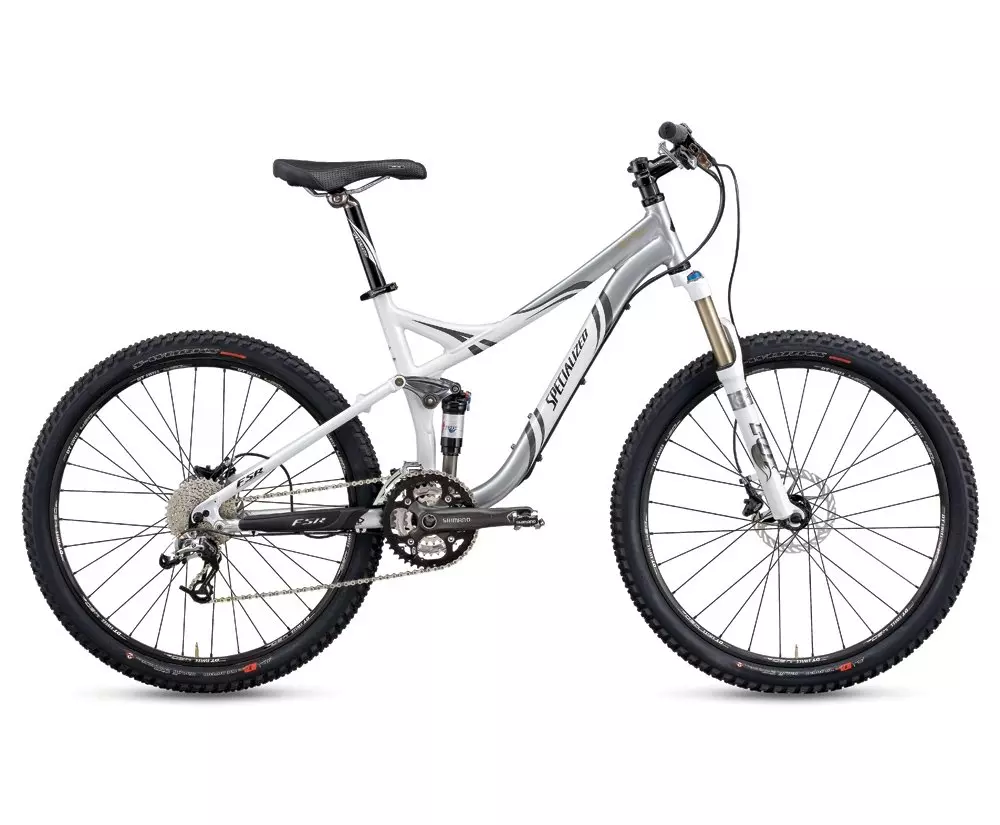

Safire FSR Comp
$2,500.00
Part No.

Safire FSR Comp

$2,500.00
Part No.  22359
load-spinner
Safire FSR Comp
Overview
Technical Specifications
Geometry
Reviews
Easily the most versatile women's XC Trail bike on the market, the 120mm-travel Safire uses women's-specific geometry, Total Suspension Integration and an intuitive FlowControl Brain damper to deliver a sure-fire combination of speed, efficiency and superior handling. Fit for every trail you can get your wheels on.
  • Custom Avid Elixir hydraulic disc brakes offer excellent modulation thanks to organic pads, adjustable levers and size-specific rotors in a lightweight set up.
  • Custom Shimano crankset is light, stiff and shifts smooth in every condition.
  • Fox Triad rear shock, custom-tuned for the Safire, with on-the-fly 3-position damping: lockout, open or ProPedal, plus adjustable rebound.
  • Our custom DT Swiss rims and DT Swiss stainless spokes are superior in weight and class. Exclusive to Specialized.
  • This M5 manipulated alloy frame, 120mm travel, features women's-specific geometry and ORE top/down tubes, plus sealed cartridge bearing pivots.

Technical Specifications

FRAMESET
SEAT BINDER 7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
HEADSET 1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
FRAME Safire FSR M5 Manipulated Alloy frame w/ Designs for Women specific ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB Custom Shimano M525 SL, alloy QR, 32h
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES DT Swiss 1.8mm stainless, black, alloy nipples
RIMS Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT TIRE S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
REAR TIRE S-Works The Captain, 26x2.0"", 120 TPI, Aramid bead, dual compound, tubeless ready
DRIVETRAIN
BOTTOM BRACKET Custom Shimano FC-M542
CHAIN SRAM PC-971, 9-speed w/Power Link
CRANKSET Custom Shimano FC-M542, S/M: 170mm, L: 175mm
CASSETTE Shimano HG61, 9-speed, 11-34t
SHIFT LEVERS SRAM X-7, aluminum trigger, 9-speed
FRONT DERAILLEUR Shimano M660 SLX, DMD, top swing, dual pull
CHAINRINGS 22S x 32A x 44A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X-9, 9-speed, mid cage
COCKPIT
SADDLE Specialized Women's Ariel, hollow Cr-Mo rails, 143mm
SEATPOST 2014 butted alloy, single-bolt setback, 30.9x350mm
GRIPS Specialized thin lock on grip
HANDLEBARS Specialized XC low rise 31.8mm bar, 6066 butted alloy, 6 degree up, 8 degree backsweep, 620mm wide
STEM Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
BRAKES
BRAKE LEVERS Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
FRONT BRAKE Custom Avid Elixir R SL, alloy backed organic pads, 160 mm rotor
REAR BRAKE Custom Avid Elixir R SL, alloy backed organic pads,S/M: 140mm, L: 160mm rotor
ACCESSORIES
PEDALS Shimano M520, clipless
SUSPENSION
FORK Fox Float 120 RL, 120mm travel, compression and rebound adjust w/ LO, alloy steerer
REAR SHOCK Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.25x1.75""

Geometry

Geometry Chart

Safire - Geometry

S M L
  S M L
Stem Length 75mm 90mm 90mm
Crank Length 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 620mm 620mm 620mm
Chainstay Length 420mm 420mm 420mm
Top Tube Length (Actual) 524mm 547mm 583mm
Top Tube Length (Horizontal) 542mm 565mm 605mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5°
Standover Height 690mm 696mm 717mm
Wheel Base 1068mm 1093mm 1134mm
Head Tube Height 100mm 120mm 130mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71°
Seat Tube Length - Center to Top 394mm 431mm 470mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm
