Safire Comp
Overview
Technical Specifications
Geometry
Reviews

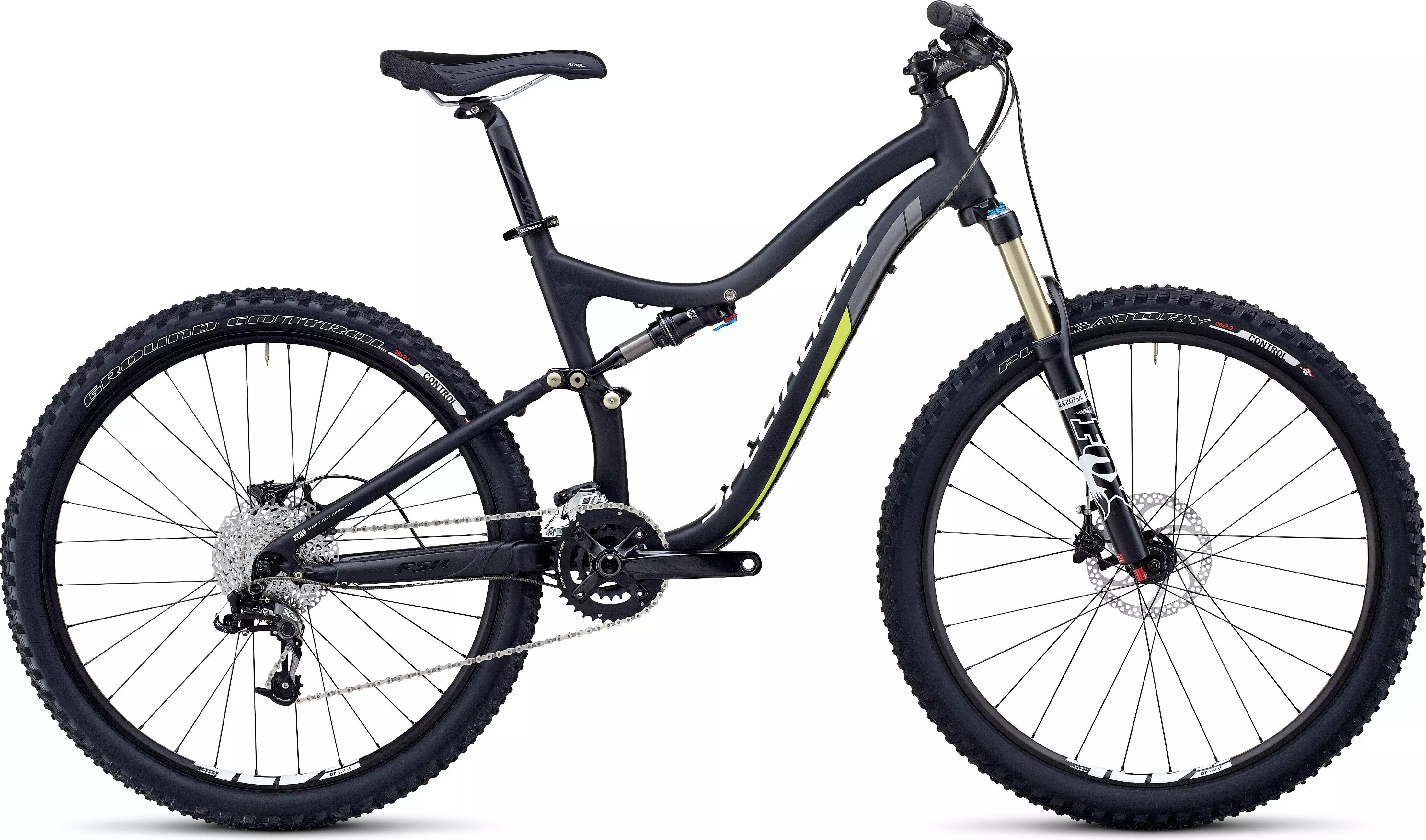

The aluminum Safire FSR Comp features 120mm of FSR suspension, a custom Fox Float CTD Evolution rear shock with AUTOSAG, Fox Evolution Float CTD Evolution air-sprung fork, and Formula C1 hydraulic disc brakes for an ultra-capable women's trail bike.
  • M5 manipulated alloy, 120mm-travel frame with Women's XC Trail Geometry and tubesets, tapered headtube, sealed cartridge bearing pivots, and direct derailleur mount makes this one tough and lightweight trail machine
  • FOX Float CTD Evolution shock with AUTOSAG with custom tune features ProPedal, plus 3 compression settings: Climb, Trail and Descend
  • FOX Float CTD Evolution series fork has features open bath damping, 120mm of travel, tapered steerer tube and 15mm thru-axle for precise and reliable handling
  • Purgatory Control tires with Adaptive Tread technology has a fast-rolling tread pattern with awesome bite for loose conditions
  • Custom SRAM S-1250 10-speed XC double crankset and SRAM X9, Type2, 10-speed mid-cage rear derailleur for efficient power transfer and smooth shifting
  • Women's Body Geometry Ariel saddle with hollow Cr-Mo rails features lightweight foam cushioning and women's cutout for pressure relief to sensitive areas

Technical Specifications

FRAMESET
SEAT BINDER Specialized 7050 alloy, QR, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME Safire M5 hydroformed tubing, Women's XC Trail Geometry and tubesets, tapered headtube, DMD, Command Post routing, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearing, 9mm QR, 32h
REAR HUB Specialized Hi Lo disc, 4x-sealed cartridge bearings, 5mm QR, 32h
INNER TUBES Ultralight presta valve
SPOKES DT Swiss Industry, stainless
RIMS Custom DT Swiss X420SL, 24mm wide, 28/32h
FRONT TIRE Specialized Purgatory Control, 2Bliss Ready, 26x2.3"", aramid bead, 60 TPI
REAR TIRE Ground Control, 2Bliss Ready, 26x2.1"", wire bead, 60 TPI
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearings
CHAIN SRAM PC 1031, 10-speed, PowerLink
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, GXP spindle, S: 165mm, M: 170mm, L: 175mm
CASSETTE SRAM PG-1030, 10-speed, 11-36
SHIFT LEVERS SRAM X7, 10-speed, trigger, w/ MatchMaker clamp
FRONT DERAILLEUR SRAM X7, 10-speed, S3 direct mount, bottom pull
CHAINRINGS 36/22, alloy guard
REAR DERAILLEUR SRAM X9 Type 2, 10-speed, mid cage
COCKPIT
SADDLE Specialized Women's Body Geometry Ariel Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized 2014 butted alloy, single bolt, 30.9mm, 350mm
GRIPS Specialized Women's Enduro, lock-on
HANDLEBARS Specialized XC, low-rise bar, 6061 butted alloy, 680mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized, alloy, adjustable rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Formula C1, alloy master cylinder, alloy lever blade, tooled reach adj.
FRONT BRAKE Formula C1, hydraulic disc, metallic pad, alloy caliper, 160mm rotor
REAR BRAKE Formula C1, hydraulic disc, metallic pad, alloy caliper, 160mm rotor
ACCESSORIES
PEDALS Resin test ride, w/ toe clips, CEN std.
SUSPENSION
FORK FOX Float CTD Evolution 26, air spring, tapered steerer, Climb, Trail, Descend settings, reb adj., standard QR dropout, 120mm travel
REAR SHOCK Custom FOX Float CTD Evolution w/ AUTOSAG for Safire, Climb, Trail, Descend settings and reb adj., 165x38mm

Geometry

Geometry Chart

Safire - Geometry

S M L
  S M L
Stem Length 60mm 75mm 75mm
Crank Length 165mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 680mm 680mm 680mm
Reach 388mm 408mm 440mm
Stack 547mm 566mm 575mm
Chainstay Length 420mm 420mm 420mm
Top Tube Length (Actual) 505mm 527mm 559mm
Ground-Top 885mm 904mm 913mm
Top Tube Length (Horizontal) 540mm 565mm 600mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5°
Standover Height 688mm 689mm 695mm
Wheel Base 1066mm 1093mm 1129mm
Head Tube Height 110mm 130mm 140mm
Seat Tube Angle (Actual) - Low Setting 70.5° 70.5° 70.5°
Seat Tube Length - Center to Top 394mm 431mm 470mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 338mm 338mm 338mm
