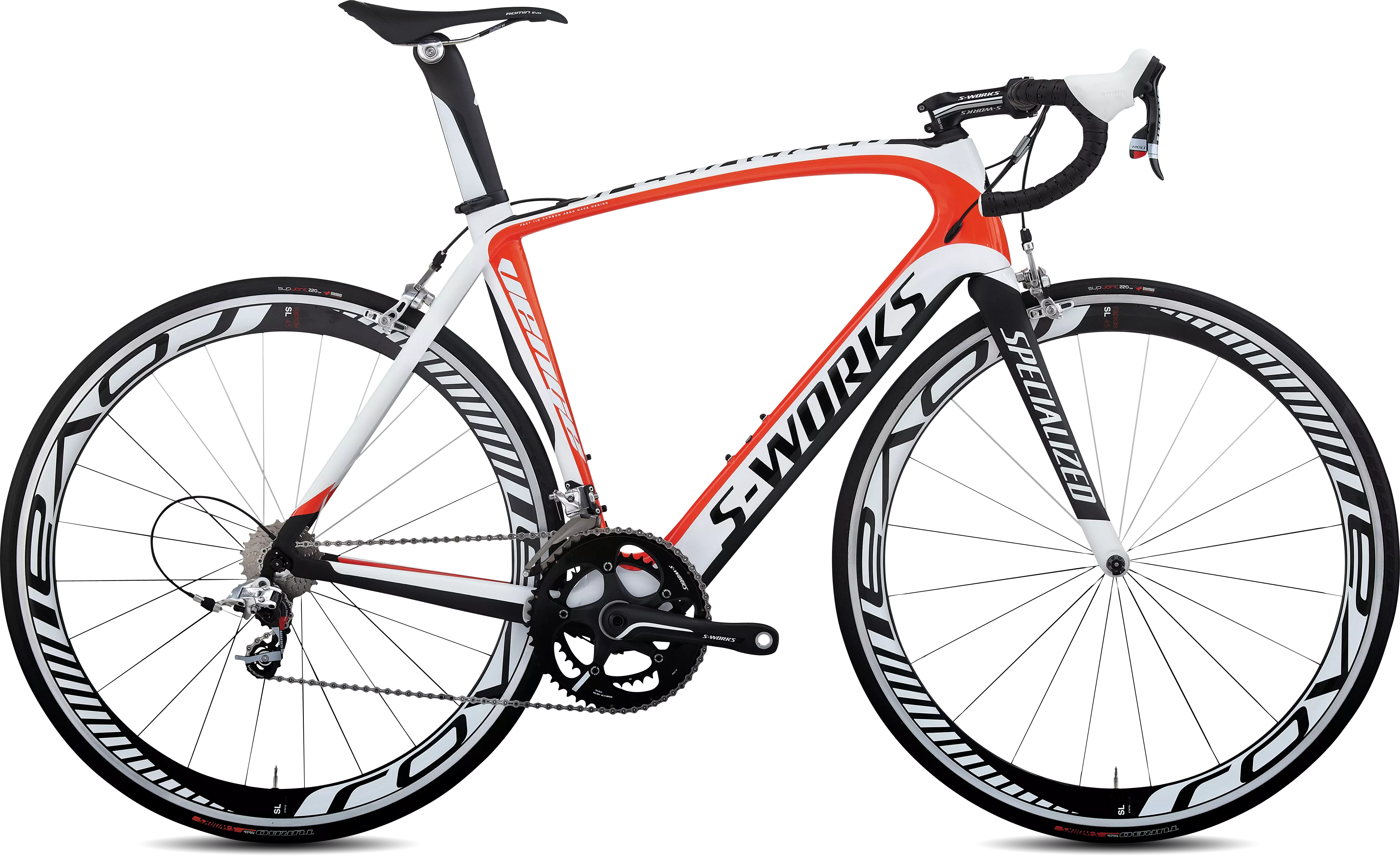

S-Works Venge SRAM RED
$8,800.00
Part No.

S-Works Venge SRAM RED

$8,800.00
Part No.  34868
load-spinner
S-Works Venge SRAM RED
Overview
Technical Specifications
Geometry
Reviews
The S-Works Venge's competition-crushing combo of Tarmac-inspired stiffness and light weight with Shiv-inspired aerodynamics makes this pure race machine truly more bike than aero. Shave even more grams with a FACT IS 11r carbon frame plus uber-light, Pro Tour-proven SRAM red components, and this bike will elevate you—and the riders on our Pro Tour teams—to a whole new level.

  • UCI-legal, FACT IS 11r Aero Race Design, carbon frame with one piece carbon OSBB/chainstay, internal cable routing, and tapered head tube provides the complete performance formula for weight, stiffness, and aerodynamics
  • UCI-legal, carbon fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness, carbon dropouts with co-molded steel inserts for added durability
  • Specialized S-Works FACT carbon crankset with OSBB, removable carbon spider, and ceramic bearings, plus SRAM's pro tour-proven Red group for a smooth, feather-light package with max power-transfer
  • Ultralight Roval Rapide SL 45 wheelset with carbon/alloy hybrid rims for low aerodynamic drag with the reliability of an alloy brake track
  • New Body Geometry Romin Evo carbon-reinforced saddle with hollow Ti rails features contoured profile and turned-down nose for comfort and power in aggressive position
  • Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback, also wide range of vertical adjustability

Technical Specifications

FRAMESET
SEAT BINDER Venge seat clamp assembly
HEADSET 1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ custom integrated top cap
FORK S-Works FACT carbon, full monocoque, OS race for 1-3/8"" bearing
FRAME S-Works FACT 11r carbon, FACT IS construction, aero tube shape, compact race design, tapered 1-1/8"" to 1-3/8"" head tube, internal cable routing, carbon OSBB
WHEELS
REAR WHEEL Roval Rapide SL 45
INNER TUBES Super Light Turbo, 80mm, presta
FRONT TIRE S-Works Turbo w/ BlackBelt protection, 220 TPI, aramid bead, 700x23c
REAR TIRE S-Works Turbo w/ BlackBelt protection, 220 TPI, aramid bead, 700x23c
FRONT WHEEL Roval Rapide SL 45
DRIVETRAIN
BOTTOM BRACKET Press-in OSBB cups w/ ceramic bearings
CHAIN KMC X10 SL nickel plate
CRANKSET S-Works FACT carbon
CASSETTE SRAM Red, 10-speed, 11-25t
SHIFT LEVERS SRAM Red DoubleTap, 10-speed
FRONT DERAILLEUR SRAM Red
CHAINRINGS 53/39
REAR DERAILLEUR SRAM Red
COCKPIT
SADDLE Body Geometry Romin Evo Expert w/ hollow ti rails
TAPE Specialized Grip Tape
SEATPOST S-Works Venge FACT carbon, flippable 20/0mm offset
HANDLEBARS S-Works Shallow Bend, carbon
STEM S-Works ProSet Stem, 7050 3D forged with carbon-wrap top cap and front cap, ti front bolts, alloy top bolt , alloy shim
BRAKES
FRONT BRAKE SRAM Red
REAR BRAKE SRAM Red
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors

Geometry

Geometry Chart

Venge - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 385mm 385mm 386mm 395mm 401mm 407mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Stack 506mm 528mm 544mm 566mm 593mm 614mm
Seat-Tube Length, B-B Center to Top 467mm 487mm 507mm 527mm 547mm 577mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 590mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 741mm 766mm 789mm 809mm 834mm 860mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 300mm 350mm 350mm 350mm
