S-Works Venge Sagan Frameset
Part No.

S-Works Venge Sagan Frameset

Part No.
S-Works Venge Sagan Frameset
Technical Specifications

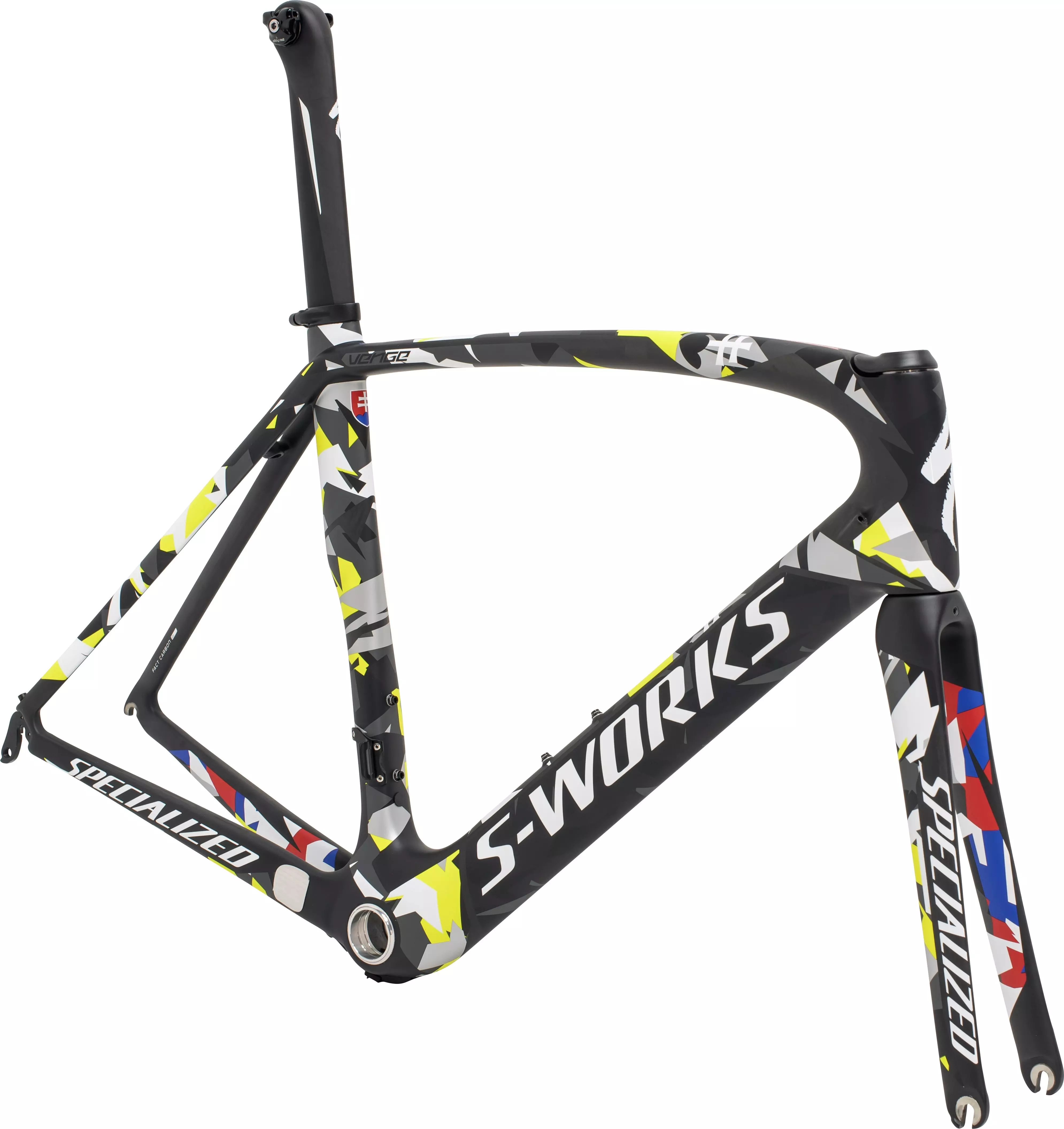

In honor of one of the most exciting riders in the professional peloton, Peter Sagan, Specialized has created the limited production S-Works Sagan Camo Venge. At any race Peter shows up to he's always considered a "marked man", with that in mind the design theme features a stunning fractal camouflage motif that incorporates both the colors of the Tinkoff-Saxo team as well as elements of the Slovakian flag—Sagan's home country. In addition to the eye-catching design, the S-Works Sagan Camo Venge has all the wind-cheating, aerodynamics and sprinting stiffness you'd expect from a Venge. It's the same bike Peter will use to tackle the biggest Classics of the year.
  • UCI-legal, S-Works FACT 11r carbon frame w/ one-piece OSBB/chainstay and tapered head tube
  • New Team Issue Layup, UCI-legal, full carbon monocoque fork with 3:1 airfoil shaping is stiff and aerodynamic
  • Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback
  • 1-1/8" upper and 1-3/8" lower, ultra-light, hybrid bearings integrated w/ headset

Technical Specifications

Technical Specifications

BOTTOM BRACKET CeramicSpeed, ceramic bearings
SEATPOST Specialized Venge, FACT carbon, flippable 20/0mm offset
HEADSET 1-1/8"" upper, 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom Venge top cap
SEAT BINDER Specialized Venge
FORK S-Works FACT carbon, full monocoque
FRAME S-Works FACT 11r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" head tube, internal cable routing, carbon OSBB


Geometry Chart

Venge - Geometry

  49 52 54 56 58 61
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 385mm 385mm 386mm 395mm 401mm 407mm
Stack 506mm 528mm 544mm 566mm 593mm 614mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 467mm 487mm 507mm 527mm 547mm 577mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 590mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Stand-Over Height 741mm 766mm 789mm 809mm 834mm 860mm
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 300mm 350mm 350mm 350mm
