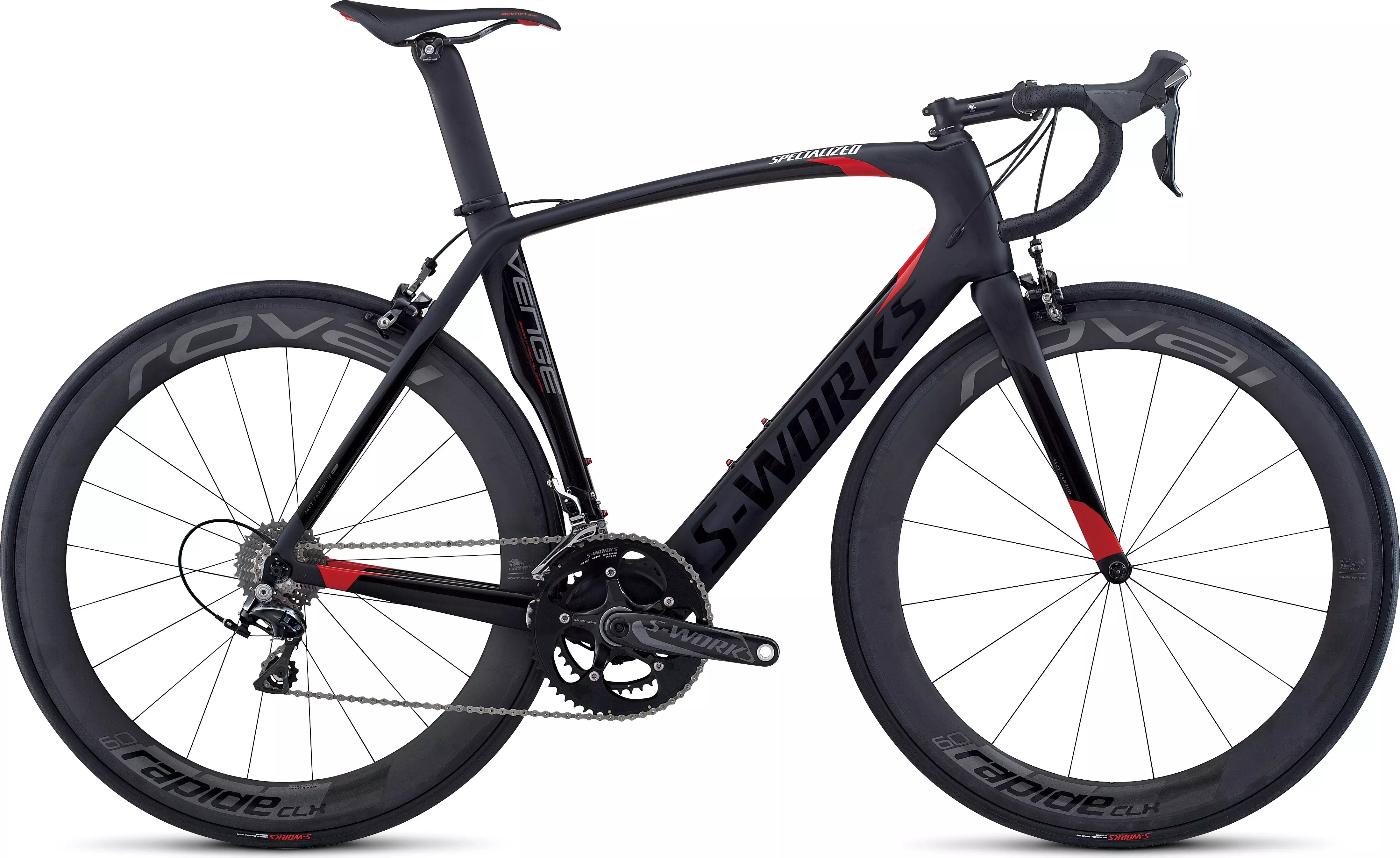

2014 S-Works Venge Dura-Ace
5
1 Reviews
The S-Works Venge is fast. Plain and simple. Behind it sits a myriad of science,…
Color:
Satin/Gloss Carbon/Red
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
The S-Works Venge is fast. Plain and simple. Behind it sits a myriad of science, testing, aerodynamic tweaking and design. What does all this mean for you? A bike that's faster in the flats, faster over rollers, and faster in sprints. The Venge will save you 22 watts over 40kp/hr compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on.
UCI-legal, FACT 11r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube, S-Works full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
Ultra-light Roval Rapide CLX 60 full carbon clincher with CeramicSpeed bearings delivers incredible braking performance with the perfect balance of aerodynamics, stiffness and weight
New S-Works Turbo 24c 220TPI tire is fast and light, offering extremely low rolling resistance and superior cornering traction for easier climbing, faster descending, and harder cornering
S-Works FACT carbon crankset is OSBB, with removable carbon spider, and CeramicSpeed ceramic bearings for maximum power transfer
Stiff, light, UCI-legal, bladed S-Works carbon seatpost flips between 20mm and 0mm setback, plus a wide range of vertical adjustability
Technical Specifications
FRAMESET
FRAME
Specialized FACT 11r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
FORK
S-Works FACT carbon full monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom Venge top cap
SEAT BINDER
Venge integrated seat clamp assembly
WHEELS
FRONT WHEEL
Roval Rapide CLX 60, w/ CeramicSpeed bearings
REAR WHEEL
Roval Rapide CLX 60, w/ CeramicSpeed bearings
FRONT TIRE
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x24c
REAR TIRE
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x24c
INNER TUBES
Lightweight, 80mm presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Dura-Ace STI, 11-speed
FRONT DERAILLEUR
Shimano Dura-Ace, braze-on, 11-speed
REAR DERAILLEUR
Shimano Dura-Ace, 11-speed
CASSETTE
Shimano Dura-Ace, 11-speed, 11-28
CRANKSET
S-Works FACT carbon, OSBB
CHAINRINGS
53/39
BOTTOM BRACKET
OS integrated, CeramicSpeed, sealed ceramic bearings
CHAIN
Shimano Dura-Ace, 11-speed
COCKPIT
HANDLEBARS
S-Works Tarmac Bend, FACT carbon, 140mm drop, 85mm reach
STEM
S-Works SL, 3D forged 7050 aluminum, 4-bolt, 31.8mm
TAPE
Specialized SL
SADDLE
Body Geometry Romin Evo Pro, carbon rails, 143mm
SEATPOST
S-Works Venge, FACT carbon, flippable 20/0mm offset
BRAKES
FRONT BRAKE
Shimano Dura-Ace
REAR BRAKE
Shimano Dura-Ace
BRAKE LEVERS
Shimano Dura-Ace
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49.0 | 52.0 | 54.0 | 56.0 | 58.0 | 61.0 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 590mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 741mm | 766mm | 789mm | 809mm | 834mm | 860mm |
| Seat-Tube Length, B-B Center to Top | 467mm | 487mm | 507mm | 527mm | 547mm | 577mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 506mm | 528mm | 544mm | 566mm | 593mm | 614mm |
| Reach | 385mm | 385mm | 386mm | 395mm | 401mm | 407mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
