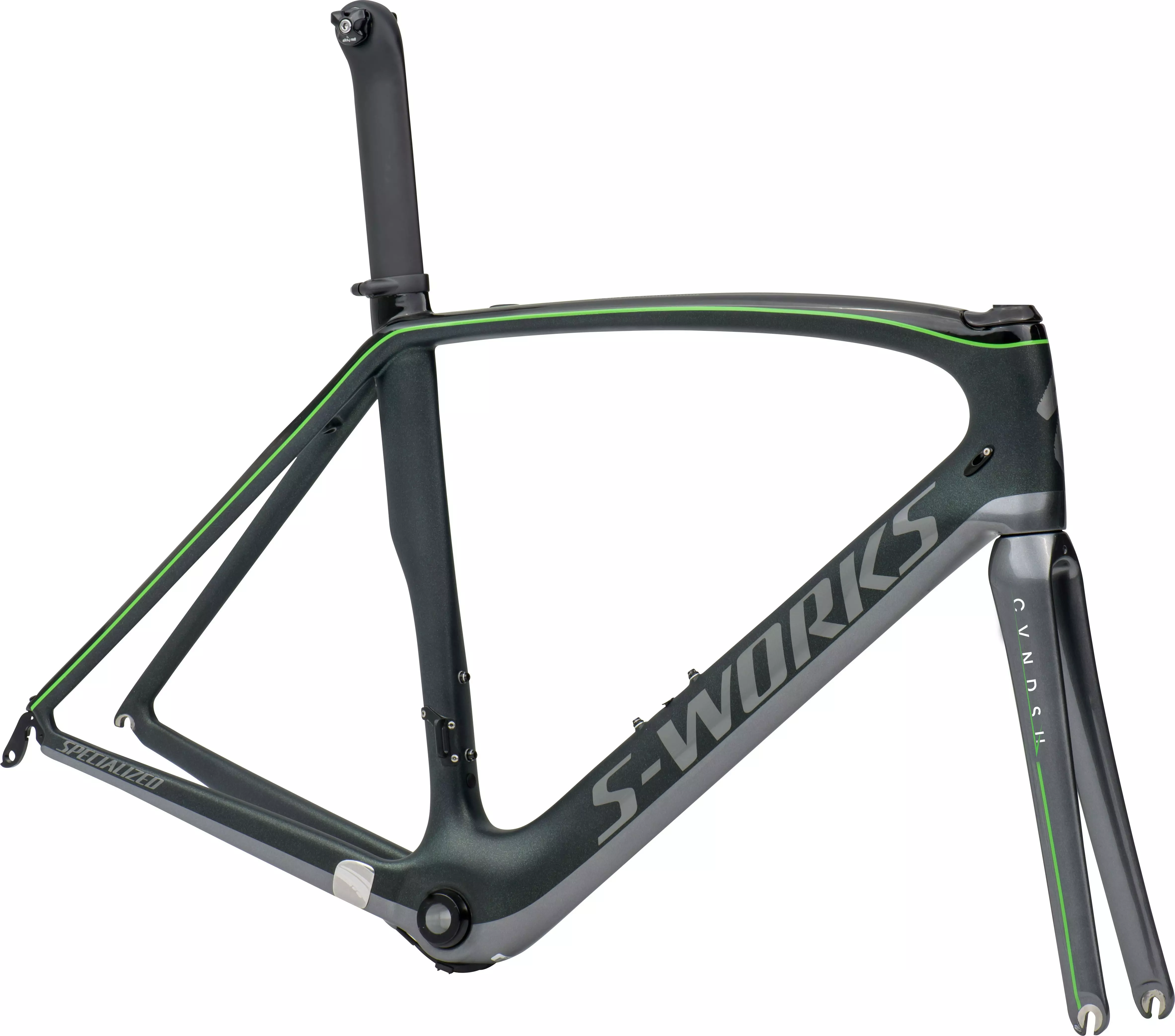

S-Works Venge Cavendish Frameset
$3,750.00
Part No.

S-Works Venge Cavendish Frameset

$3,750.00
Part No.  51677
load-spinner
S-Works Venge Cavendish Frameset
Overview
Technical Specifications
Geometry
Reviews
  • UCI-legal, FACT 11r carbon monocoque frame with one-piece OSBB/chainstay, internal cable routing, and tapered headtube provides the complete performance formula for weight, stiffness and aerodynamics
  • UCI-legal, full carbon monocoque S-Works fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness, carbon dropouts with co-molded steel inserts for added durability
  • Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket with ceramic bearings for reduced friction
  • 1-1/8" upper and 1-3/8" lower, ultralight hybrid bearings with alloy housing create the highest quality headset bearings available
  • Stiff, light, UCI-legal, bladed S-Works carbon seatpost flips between 20mm and 0mm setback, plus a wide range of vertical adjustability

Technical Specifications

FRAMESET
SEAT BINDER Venge integrated seat clamp assembly
HEADSET 1-1/8"" upper and 1-3/8"" lower, hybrid cartridge lightweight bearings, w/ custom Venge top cap
FORK S-Works FACT carbon full monocoque, OS race for 1-3/8"" bearing
FRAME Specialized FACT 11r carbon, FACT IS construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
DRIVETRAIN
BOTTOM BRACKET OS integrated, CeramicSpeed, sealed ceramic bearings
COCKPIT
SEATPOST S-Works Venge, FACT carbon, flippable 20/0mm offset

Geometry

Geometry Chart

Venge - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 385mm 385mm 386mm 395mm 401mm 407mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Stack 506mm 528mm 544mm 566mm 593mm 614mm
Seat-Tube Length, B-B Center to Top 467mm 487mm 507mm 527mm 547mm 577mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 590mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 741mm 766mm 789mm 809mm 834mm 860mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 300mm 350mm 350mm 350mm
