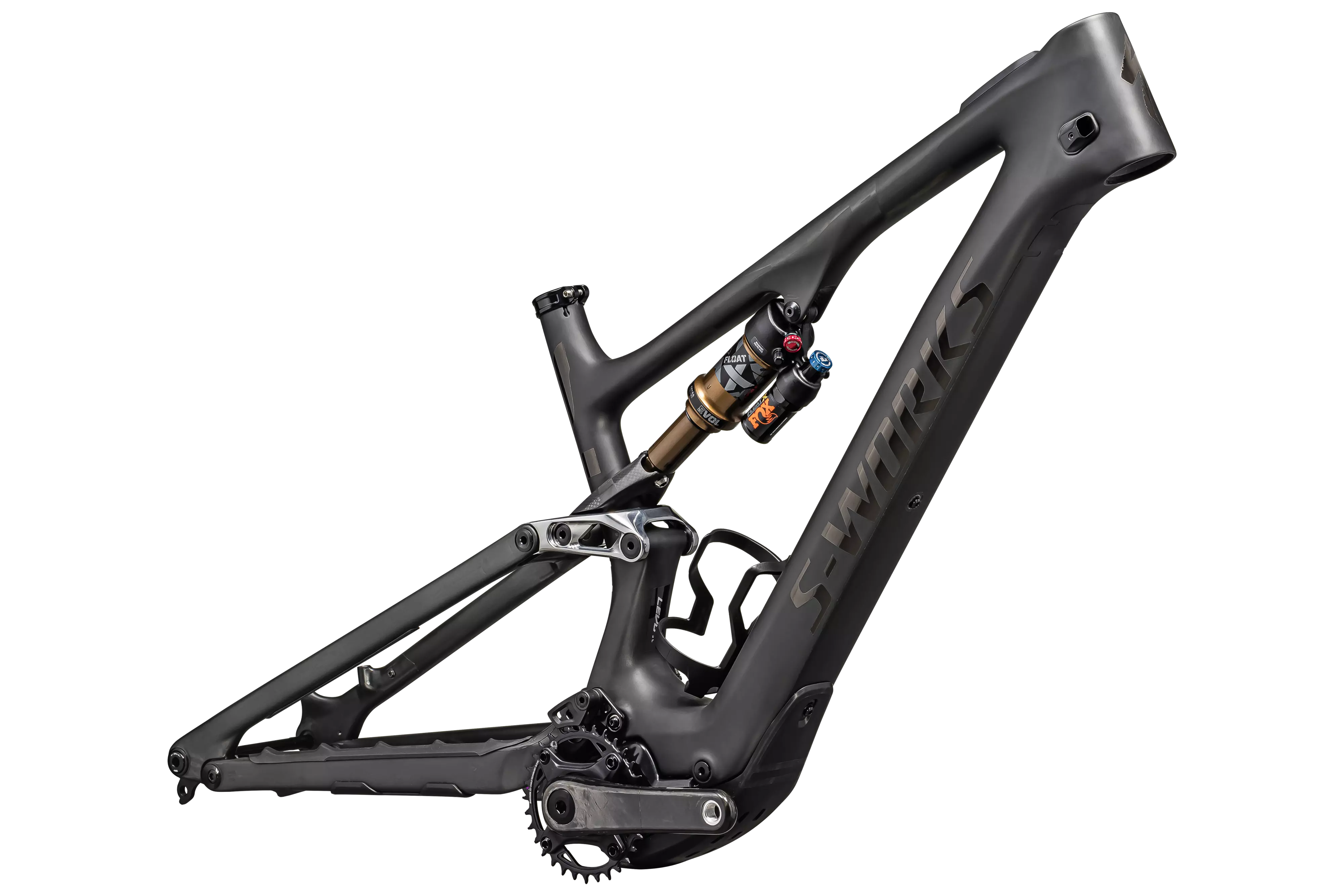

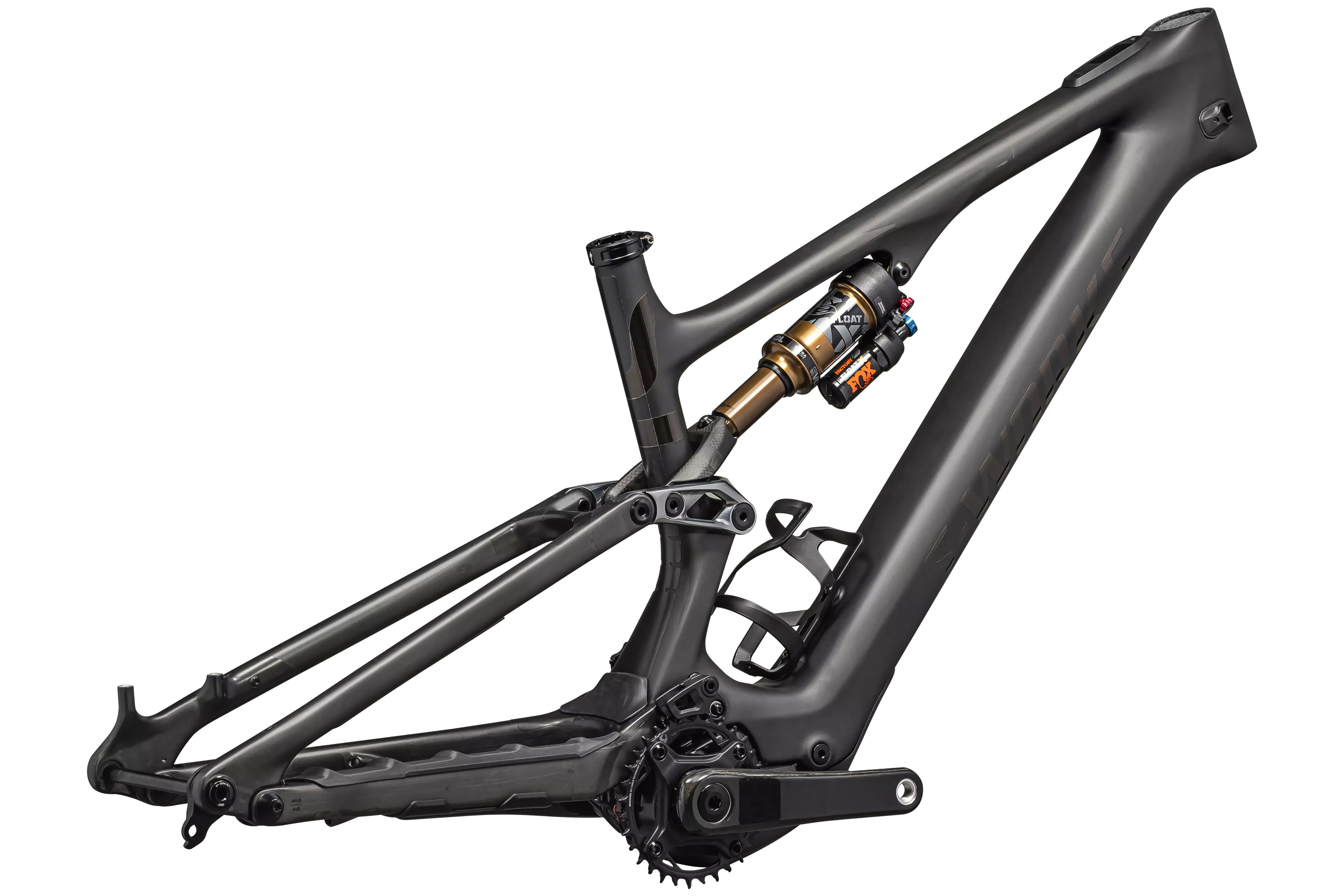

S-Works Turbo Levo SL Frame

0 Reviews

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail…

Delivery Icon

We deliver! Just say when and how.

Unleash Your Dream Ride
THE SPECIALIZED APP

Unleash Your Dream Ride

With advanced performance tracking, seamless partner app integration, and Turbo e-bike management, the all-new Specialized app takes cycling and connectivity to the next level.

Product Details

Add Icon

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
  • Worried about running out of power? No problem. Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, our included range extender boosts your range by another 50 percent. On top of all that, our Specialized app can handle battery management automatically, ensuring your battery will last as long as you need it to.

Technical Specifications

Add Icon

E-Bike

Motor

New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Frameset

Frame

All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

S2-S6: Fox Float X Factory series, Kashima, 21x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm

Drivetrain

Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t alloy ring

Crankset

SRAM Carbon Crankset, Dub interface

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S1S2S3S4S5S6
Crank Length165mm165mm170mm170mm170mm175mm
Stack609mm617mm626mm635mm645mm654mm
Reach405mm425mm445mm470mm495mm525mm
Head-Tube Length95mm100mm110mm120mm130mm140mm
Head-Tube Angle64.6°64.6°64.6°64.6°64.6°64.6°
B-B Height343mm348mm348mm348mm348mm348mm
B-B Drop-34mm-29mm-29mm-29mm-29mm-29mm
Trail132mm132mm132mm132mm132mm132mm
Fork Length, Full560mm570mm570mm570mm570mm570mm
Fork Rake/Offset42mm42mm42mm42mm42mm42mm
Front-Center726mm752mm776mm806mm835mm869mm
Chain-Stay Length433mm432mm432mm432mm432mm432mm
Wheelbase1158mm1184mm1208mm1238mm1267mm1301mm
Top Tube Length, Horizontal560mm582mm604mm631mm659mm691mm
Bike Stand-Over Height727mm763mm766mm767mm773mm778mm
Seat-Tube Length385mm385mm405mm425mm445mm465mm
Seat-Tube Angle75.8°75.8°75.8°75.8°75.8°75.8°
Geometry
