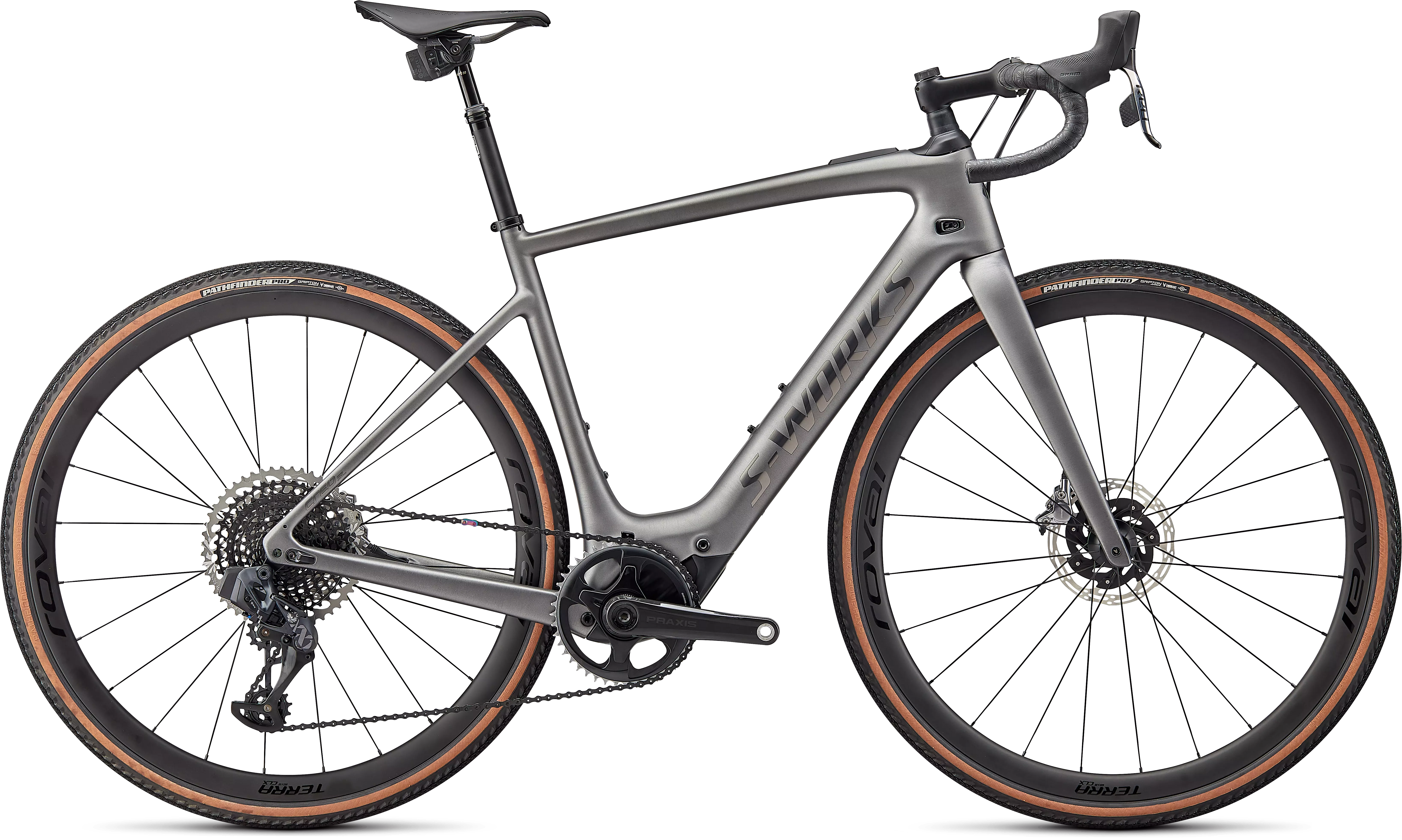

2022 S-Works Turbo Creo SL EVO

4.8

4 Reviews

What is it about gravel that's so appealing? Is it the break from hectic city streets…

#1 Again: 2023 Gran Fondo Awards
Voted Best Brand 5 Years in a Row

#1 Again: 2023 Gran Fondo Awards

The riders have spoken! For the fifth year in a row, Specialized has been crowned the #1 “Drop Bar Bike Brand” in the prestigious Gran Fondo Best Brand Awards for 2023. We innovate for riders, and year after year, our bikes are loved by the most discerning riders. Thank you!

MasterMind TCU2

MasterMind TCU2

We’ve made the 2022 Creo SL a whole lot smarter with a new MasterMind TCU2. A digital screen displays battery level, rider power, motor power and can even pair with your heart rate monitor, all customizable with our Mission Control app.

MicroTune

MicroTune

MicroTune technology makes its road and gravel debut with the 2022 Turbo Creo SL. You’ll be on a real power trip, controlling 240 watts of smooth power delivery in 10% increments right from Turbo Road Remote buttons on your handlebars.

Gravel-Ready Builds

Gravel-Ready Builds

Dropper seat posts, Shimano GRX groupsets, Roval gravel wheels, and Pathfinder tires make our new Creo SL EVOs more capable than ever. So go ahead and explore, knowing you’ve got the power, range, and build to take you farther.

Unleash Your Dream Ride
THE SPECIALIZED APP

Unleash Your Dream Ride

With advanced performance tracking, seamless partner app integration, and Turbo e-bike management, the all-new Specialized app takes cycling and connectivity to the next level.

Product Details

Add Icon

What is it about gravel that's so appealing? Is it the break from hectic city streets and cars? Is it the audible crunch of rocks beneath your tires? Or maybe it's just the feeling of adventure? Whatever it is, the Turbo Creo SL EVO is here to assist you further into the forest, down the gravel road, or on your next adventure. It features the same motor, battery, and frame as its road-oriented cousin, but takes advantage of tire clearance and adds in some adventure-ready components to take you wherever your heart desires. It's you, only faster.

Like all of our S-Works bikes, the S-Works Turbo Creo SL EVO is our pinnacle build. The FACT 11r chassis and Future Shock 2.0 with a hydraulic damper is dressed with a 1x build that includes SRAM Red AXS eTap, a SRAM XX1 Eagle rear derailleur, and a 10-50t cassette for an incredible gear range. It rolls on Roval Terra CLX Disc carbon wheels with 38mm Pathfinder Pro 2Bliss Ready tires to keep you rolling worry-free and super fast, no matter the terrain. And filling out the build are Roval Terra carbon bars with 12 degrees of flare, a S-Works Future Stem, a SRAM Reverb AXS dropper seatpost, and a Body Geometry S-Works Power saddle.

  • The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.

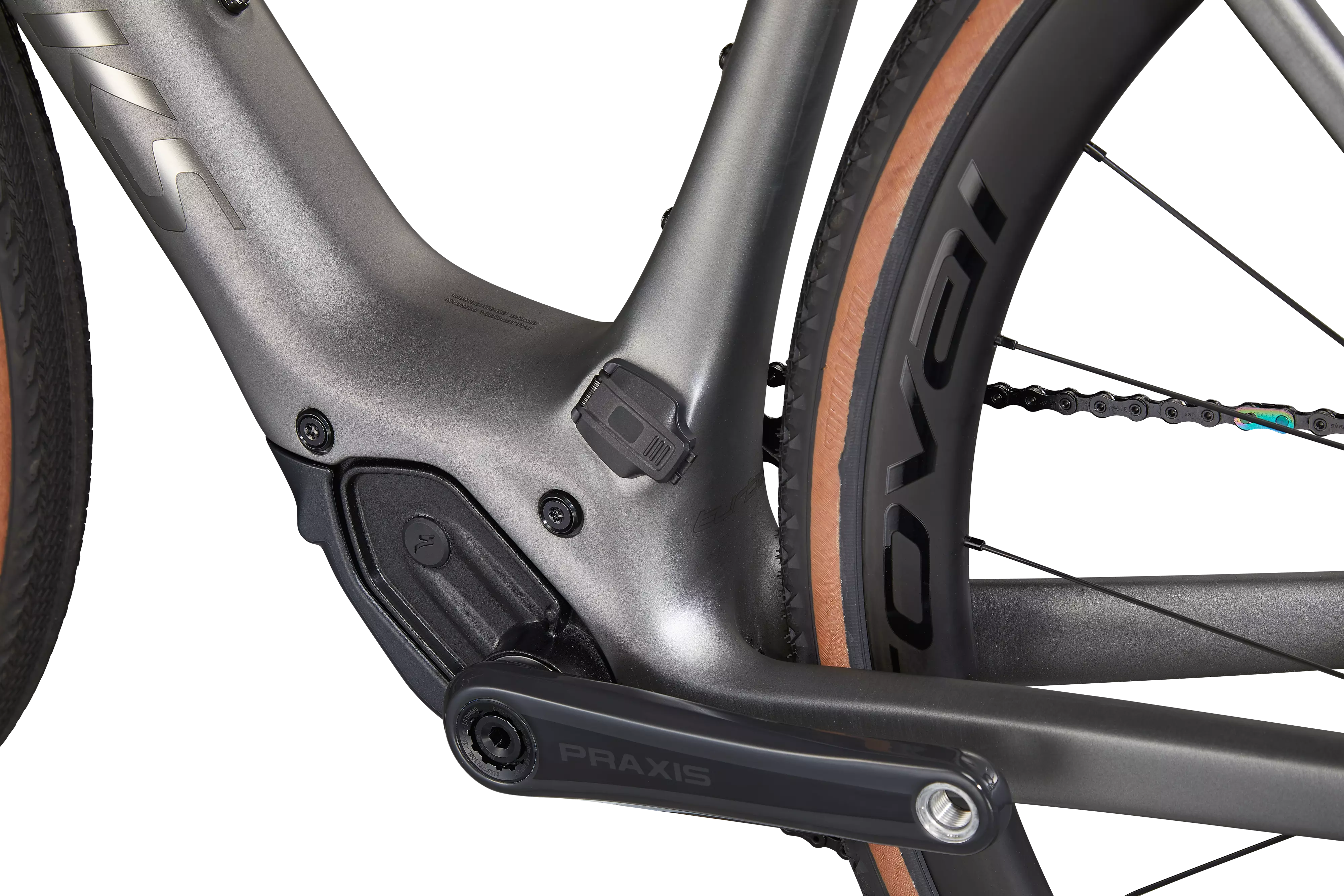

  • The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.
  • Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our optional range extender provides up to 40 additional miles of mountain-flattening power.
  • By connecting with our Specialized app, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit.
  • With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.
  • We’ve learned there can be more difference between two male cyclists than between a male and female. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders. One that's comfortable and snappy on the road, yet features all of the attributes you'd want from a proper gravel bike—a long wheelbase, raked-out fork, and low bottom bracket that keeps the Turbo Creo SL EVO stable at high speeds and delivers control in corners.

Technical Specifications

Add Icon

E-Bike

Motor

Specialized SL 1.1, custom lightweight motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

Frameset

Frame

FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm

Seat Binder

Specialized Alloy, 30.8mm

Cockpit

Tape

Supacaz Super Sticky Kush

Stem

S-Works Future Stem w/ Integrated Computer mount

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Saddle

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

SeatPost

RockShox Reverb AXS, 27.2mm

Suspension

Fork

Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM Red eTAP AXS, hydraulic disc

Rear Brake

SRAM Red eTAP AXS, hydraulic disc

Drivetrain

Chainrings

SRAM X-SYNC, 44T

Shift Levers

SRAM Red eTap AXS

Rear Derailleur

SRAM XX1 Eagle AXS

Cassette

SRAM XG-1295 Eagle, 12-speed, 10-50t

Chain

SRAM XX1 Eagle

Crankset

Praxis Carbon/M30 Spindle Interface

Wheels & Tires

Front Wheel

Roval Terra CLX, 25mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes

Rear Wheel

Roval Terra CLX, 25mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes

Front Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Rear Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Inner Tubes

Presta valve, 48mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

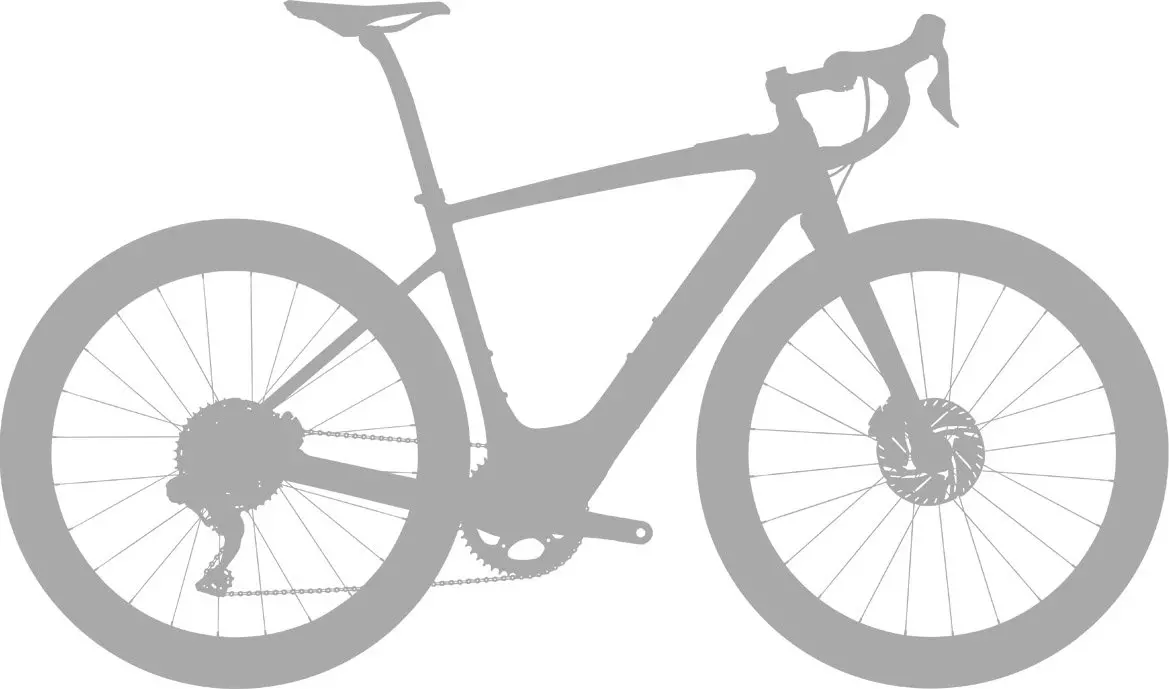

Geometry

Add Icon
XSSMLXLXXL
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length350mm350mm350mm400mm400mm400mm
Stack573mm575mm592mm615mm643mm675mm
Reach363mm373mm379mm384mm391mm399mm
Head-Tube Length145.5mm145.5mm163.5mm185.5mm217mm250mm
Head-Tube Angle71.5°72°72.5°73°73°73°
B-B Height264.5mm264.5mm267mm267mm269.5mm269.5mm
B-B Drop80.5mm80.5mm78mm78mm75.5mm75.5mm
Trail68mm60mm56mm53mm53mm52mm
Fork Length (full)390mm390mm390mm390mm390mm390mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front-Center586mm592mm598mm605mm621mm636mm
Chain-Stay Length426mm426mm426mm427mm427mm428mm
Wheelbase999mm1005mm1012mm1020mm1036mm1052mm
Top-Tube Length (horizontal)527mm539mm548mm566mm581mm605mm
Bike Stand-Over Height728mm731mm759mm782mm810mm840mm
Seat-Tube Length415mm447.5mm477.5mm502.5mm527.5mm557.5mm
Seat-Tube Angle74°74°74°73.5°73.5°73°
