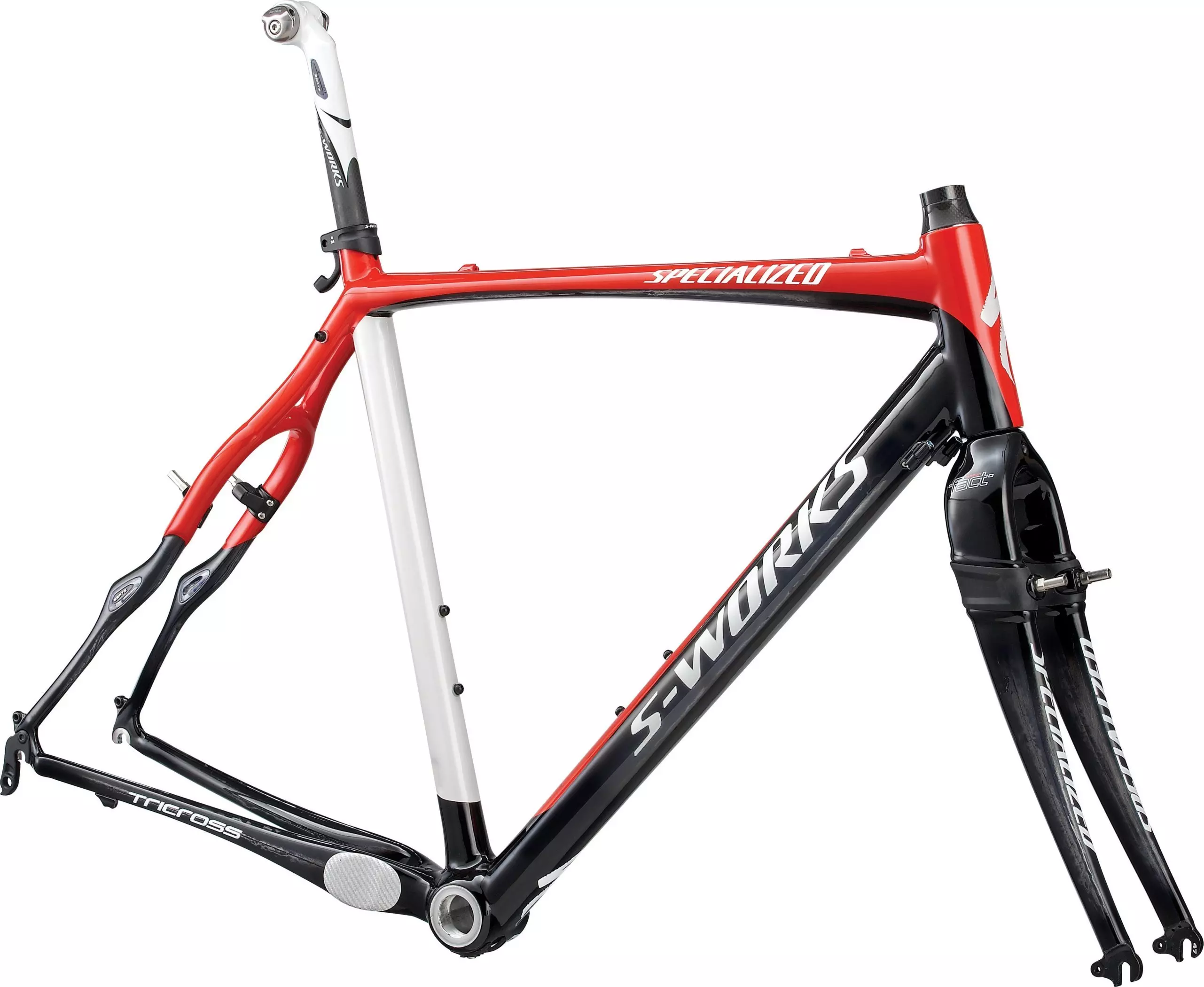

S-Works Tricross Carbon Frameset
Part No.

S-Works Tricross Carbon Frameset

Part No.  23015
load-spinner
S-Works Tricross Carbon Frameset
Overview
Technical Specifications
Geometry
Reviews
Never one for playing by the rules, the Tricross® lives to take the road less traveled. Whether that means a 'cross mudfest or hidden chunk of singletrack, these bikes are engineered with lightweight, easyshoulder frames, SpeedZertz-damped forks and beefy tires for the tolerance and traction to battle barricades, bumps and dodgy roads.
  • S-Works Pavé carbon seatpost provides a solid perch to launch your trail attacks
  • S-Works TriCross FACT carbon frame features premium Az1 construction and Zertz inserts for a light, efficient and supple ride
  • S-Works FACT carbon monocoque fork with SpeedZertz for a solid, yet compliant ride

Technical Specifications

COCKPIT
SEATPOST S-Works FACT carbon w/ Zertz insert, 27.2mm
FRAMESET
HEADSET VP-A19RCK4 Aheadset Stainless Race/Balls w/ top cap w/ 20mm of spacers
SEAT BINDER S-Works w/ brake stop, 32.6mm
FORK S-Works Tricross fork, full FACT carbon monocoque w/ SpeedZertz, rack and fender fittings
FRAME S-Works Tricross FACT 10m carbon, Az1 construction, semi-compact design, Zertz inserts, threaded BB, rack and fender fittings

Geometry

Geometry Chart

TriCross - Geometry

  49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 1026mm 1027mm 1028mm 1032mm 1038mm 1047mm
Seat-Tube Length, B-B Center to Top 490mm 525mm 545mm 565mm 585mm 615mm
Head-Tube Length 110mm 125mm 140mm 155mm 170mm 195mm
Top-Tube Length, Horizontal 515mm 530mm 545mm 560mm 575mm 595mm
Front-Center 596mm 597mm 597mm 601mm 607mm 616mm
Head-Tube Angle 70° 70.75° 71.5° 72° 72.5° 73°
Fork Rake 49mm 49mm 49mm 47mm 47mm 47mm
Trail 75mm 70mm 65mm 64mm 61mm 58mm
Stand-Over Height 750mm 774mm 791mm 806mm 824mm 851mm
Chain-Stay Length 440mm 440mm 440mm 440mm 440mm 440mm
Seat-Tube Angle 75.5° 74.5° 73.5° 73° 72.5° 72°
B-B Drop 71mm 71mm 69mm 69mm 67mm 67mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
