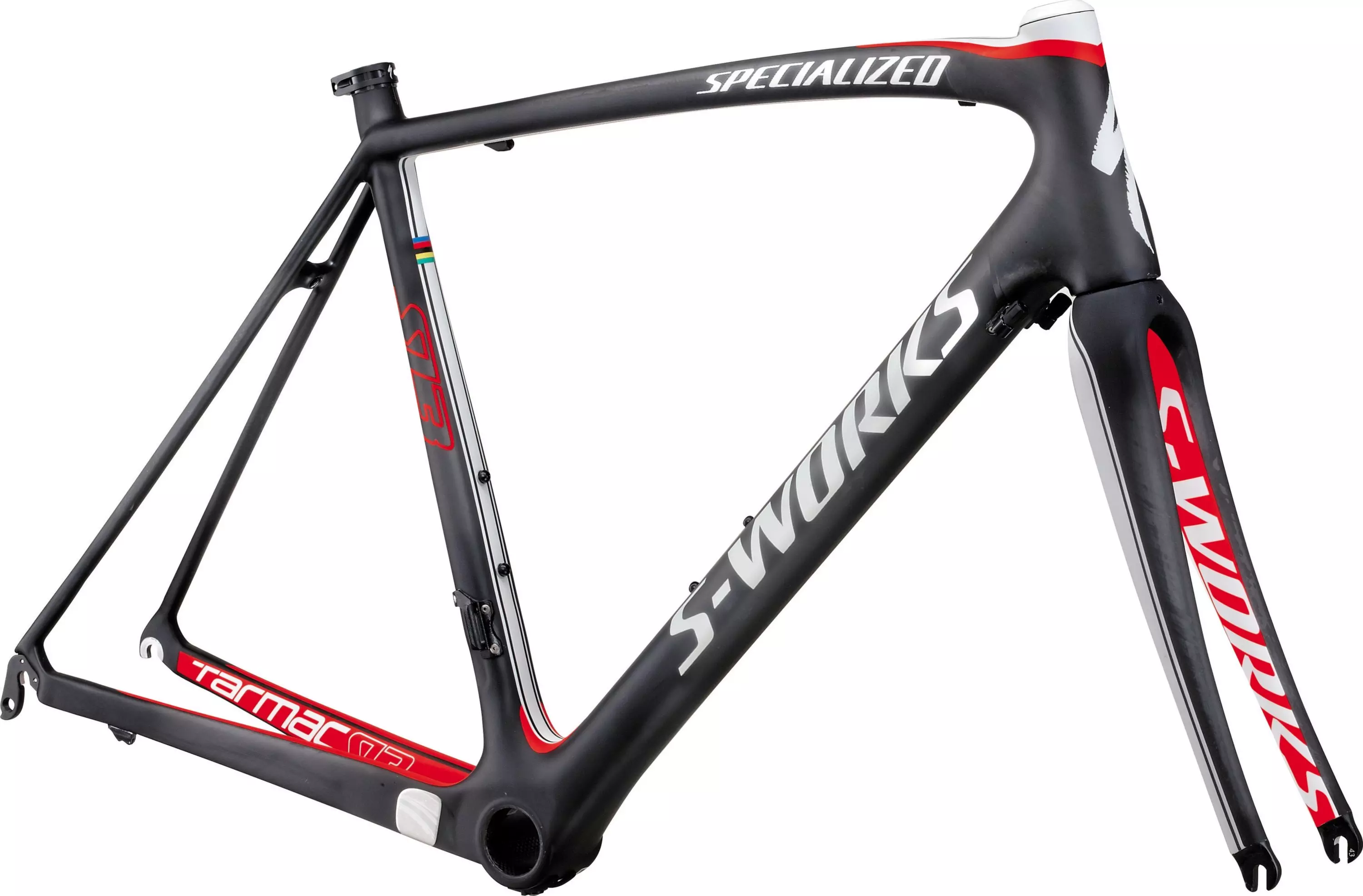

S-Works Tarmac SL3 OSBB Frameset
$3,000.00
Part No.

S-Works Tarmac SL3 OSBB Frameset

$3,000.00
Part No.  33556
load-spinner
S-Works Tarmac SL3 OSBB Frameset
Overview
Technical Specifications
Geometry
Reviews
Spec your own ultimate road racing bike right down to the quick releases by starting with the S-Works Tarmac SL3 frameset. Oversized bottom bracket readily accepts BB30 cranks.
  • The notorious Pro Tour-dominating SL3 FACT IS 11r carbon frame has phenomenal stiffness to weight ratio, with tapered head tube and OSBB carbon shell
  • Uniweave full carbon monocoque fork with tapered steerer provides for the ultimate in precision handling and acceleration
  • Campy-style 1-1/8" to 1-1/2" headset with steel bearings ensures precision, low maintenance and lighter weight

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET 1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, carbon 8mm cone spacer and 20mm of carbon spacers
FORK Specialized FACT carbon full monocoque, OS race for 1-1/2"" bearing
FRAME S-Works SL3 FACT 11r, FACT IS construction, compact race design, 1-1/2"" lower HS bearing, OSBB shell
DRIVETRAIN
BOTTOM BRACKET With Crankset

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 730mm 755mm 777mm 800mm 828mm 857mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm
