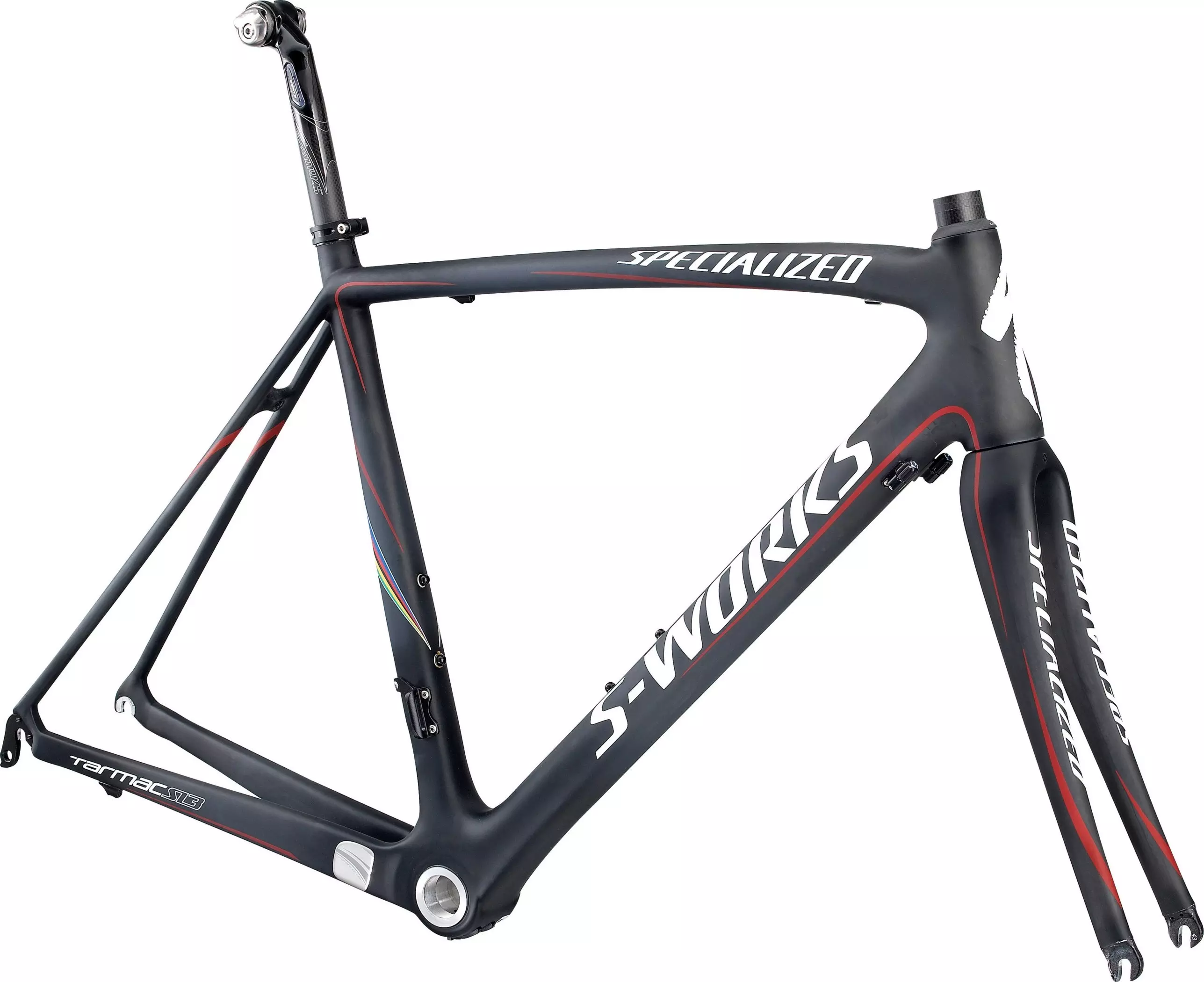

S-Works Tarmac SL3 Frameset Team Geo
Overview
Technical Specifications
Geometry
Reviews
Leading our pros to victory at races like Liège-Bastogne-Liège, Tour of Flanders, and countless others, the Tarmac® proves itself to be the best handling, most high-performance bike on the road. Thanks to the integration of critical components, an extremely rigid FACT carbon frame, and proprietary Body Geometry extras, we can proudly say that nothing is lighter and stiffer.
  • Campy-style 1-1/8" to 1.5" headset with steel bearings ensures quality, low maintenance and lighter weight
  • Stiff and adjustable S-Works FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
  • FACT full carbon monocoque fork with uni-weave finish integrates with the frame using an oversized race to deliver enhanced steering precision
  • Specialized puts its championship-winning blend of speed and light weight in the new FACT IS S-Works Tarmac SL3 11r carbon frame with incredibly stiff oversized BB and 1.5" lower headset bearing

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET With Crankset
COCKPIT
SEATPOST S-Works FACT carbon w/ Zertz insert, 27.2mm
FRAMESET
HEADSET Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers
SEAT BINDER S-Works alloy, 32.6mm clamp
FORK S-Works Tarmac SL3 FACT carbon, Uni-weave, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
FRAME S-Works Tarmac SL3 FACT 11r, FACT IS construction, compact race design, 1.5"" lower HS bearing, threaded BB shell

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 130mm 150mm 170mm 175mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 595mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 73.5°
Stand-Over Height 730mm 755mm 768mm 789mm 809mm 826mm
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 56mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm
