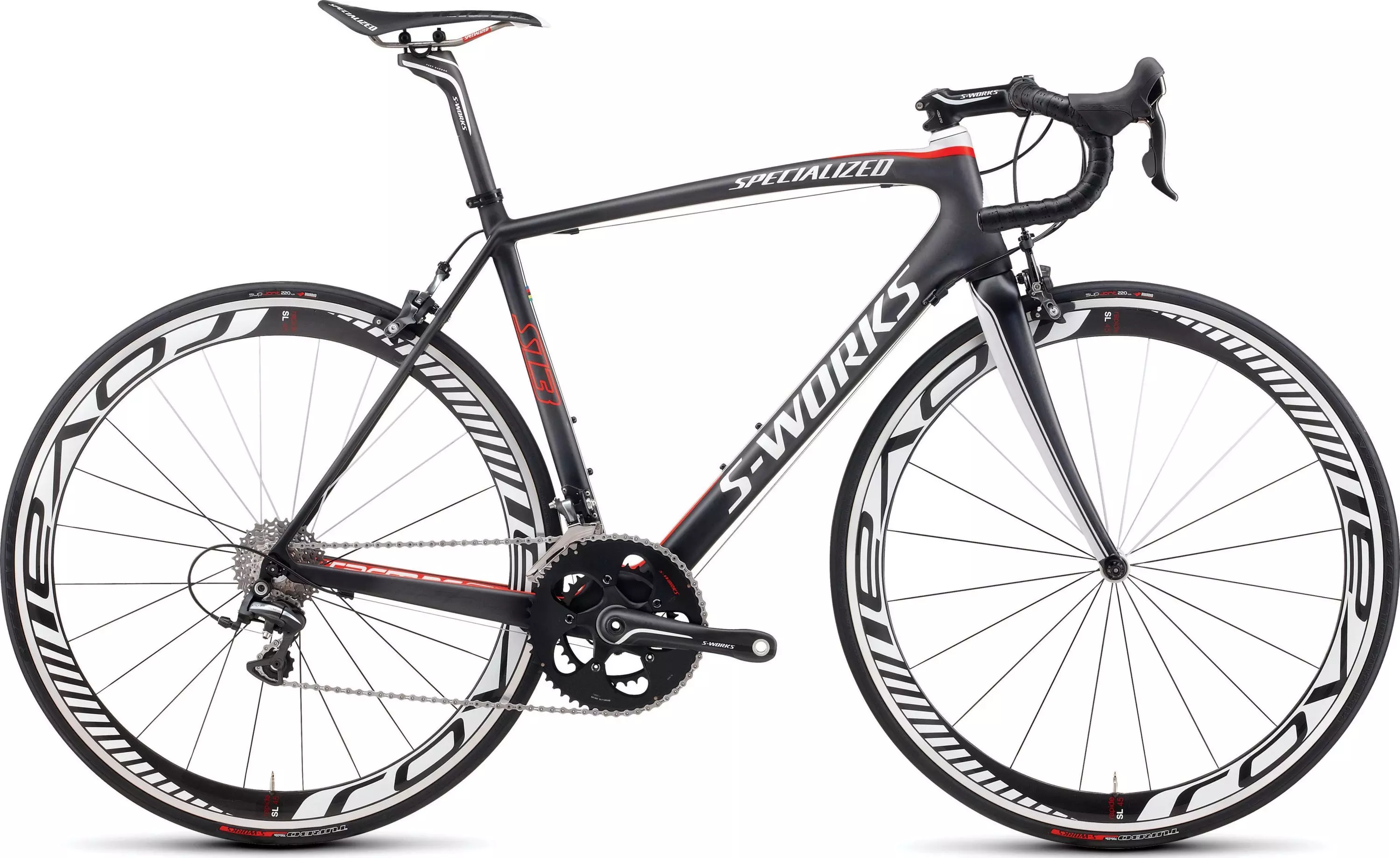

After three consecutive victories in the Tour of Flanders, the Tarmac went on to win the 2010 Tour de France. Like the team bikes of Mark Cavendish and Team HTC-Highroad, this SL3 is complemented by Shimano Dura-Ace.
  • The notorious Pro Tour-dominating SL3 FACT IS 11r carbon frame has phenomenal stiffness to weight ratio, with tapered head tube and OSBB carbon shell
  • Full carbon monocoque fork with tapered steerer provides for the ultimate in precision handling and acceleration
  • Specialized S-Works FACT carbon crankset with oversized BB, removable carbon spider, and ceramic bearings has the highest strength to weight ratio for unparalleled efficiency and power transfer
  • Body Geometry Romin carbon-reinforced saddle with Ti tails, and contoured profile for optimal power position
  • S-Works FACT carbon seatpost and cradle is super light and stiff for optimal power transfer, fully adjustable, and accommodates carbon-rails
  • Ultralight Roval Rapide SL 45 wheelset with carbon/alloy hybrid rims for low aerodynamic drag with the durability of an alloy brake track
  • Legendary Shimano Dura-Ace 10-speed shifters are the benchmark for immediate, precise and quiet shifting

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET 1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, carbon 8mm cone spacer and 20mm of carbon spacers
FORK Specialized FACT carbon full monocoque, OS race for 1-1/2"" bearing
FRAME S-Works SL3 FACT 11r, FACT IS construction, compact race design, 1-1/2"" lower HS bearing, carbon OSBB
WHEELS
REAR WHEEL Roval Rapide SL 45
INNER TUBES Super Light Turbo, 60mm presta valve
FRONT TIRE S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
REAR TIRE S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
FRONT WHEEL Roval Rapide SL 45
DRIVETRAIN
CHAIN Shimano Dura-Ace
CRANKSET S-Works FACT carbon
CASSETTE Shimano Dura Ace, 10-speed, 11-27t
SHIFT LEVERS Shimano Dura-Ace STI, flight deck compatible
FRONT DERAILLEUR Shimano Dura-Ace
CHAINRINGS 53 x 39T
REAR DERAILLEUR Shimano Dura-Ace
COCKPIT
SADDLE Body Geometry Romin Team w/ solid Ti rails
TAPE Specialized S-Works wrap
SEATPOST S-Works FACT carbon, 27.2mm
HANDLEBARS S-Works SL Carbon, classic bend
STEM S-Works 3D forged 7050 alloy w/ carbon-wrap top and front cap
BRAKES
BRAKE LEVERS Shimano Dura-Ace STI, flight deck compatible
FRONT BRAKE Shimano Dura-Ace
REAR BRAKE Shimano Dura-Ace
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 730mm 755mm 777mm 800mm 828mm 857mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
