FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter and stiffer.

Frank Schleck won the final stage of the 2009 Tour of California on a Tarmac SL2. Video from I-Am-Specialized.com.

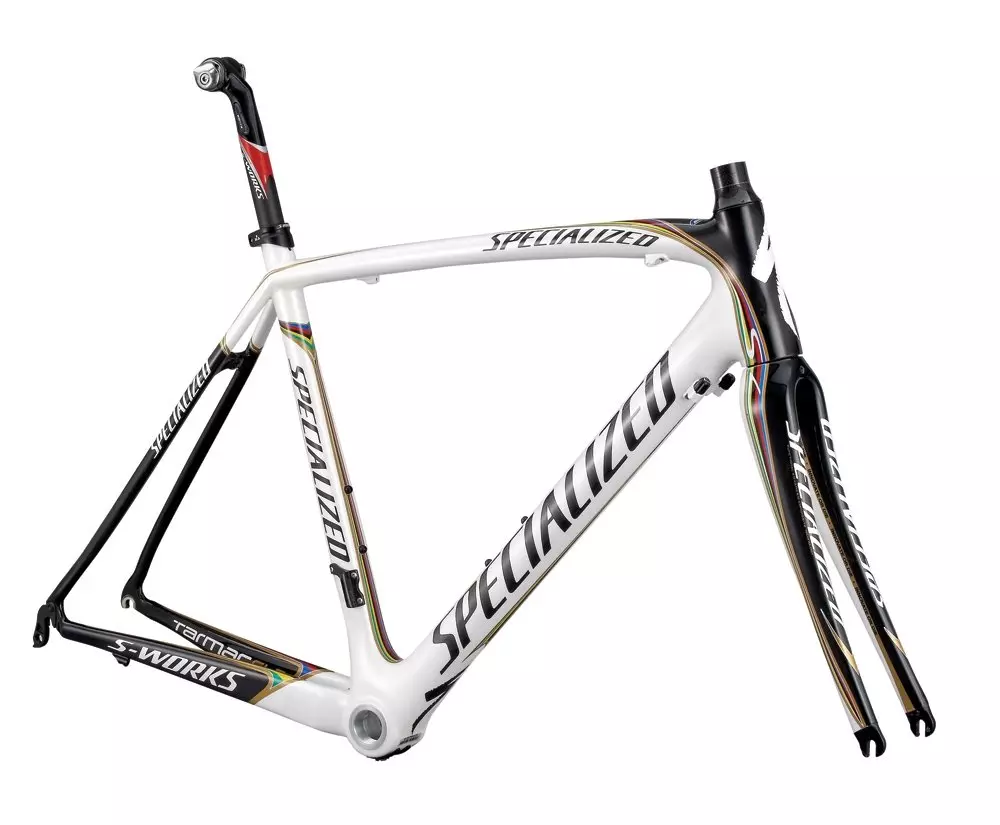

  • The S-Works Tarmac SL2 (with Team geometry) features our top-of-the-line, superlight and strong 11r carbon, with our FACT IS construction for a super-efficient frame that simply exudes speed.
  • The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.
  • The S-Works Mindset headset comes with ceramic cartridge bearings for the smoothest action imaginable.
  • The S-Works SL FACT carbon seatpost features an integrated Zertz insert for a seatpost that’s light and stiff, but forgiving.

Technical Specifications

Technical Specifications

COCKPIT
SEATPOST S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
FRAMESET
HEADSET S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER S-Works CNC alloy, 32.6mm
FORK S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
FRAME S-Works FACT 11r carbon, FACT IS construction, team geometry compact race design, 1.5"" lower HS bearing, threaded BB
* Specifications are subject to change without notice

Geometry

Geometry Chart

Tarmac - Geometry

  54 56 58 61
Handle-Bar Width 0mm 0mm 0mm 0mm
Reach 548mm 565mm 582mm 595mm
Stack 510mm 530mm 550mm 580mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 407mm 410mm
Ground-Top 69mm 69mm 67.5mm 67.5mm
Top-Tube Length, Horizontal 73.5mm 73.25mm 73mm 72.5mm
Front-Center 130mm 150mm 170mm 175mm
Head-Tube Angle 583° 591° 605° 612°
Fork Rake 978mm 986mm 1003mm 1013mm
Trail 777mm 800mm 828mm 857mm
Chain-Stay Length 45mm 43mm 43mm 43mm
Seat-Tube Angle 57° 56° 56° 56°
B-B Drop 73mm 73.5mm 73.5mm 73.5mm
