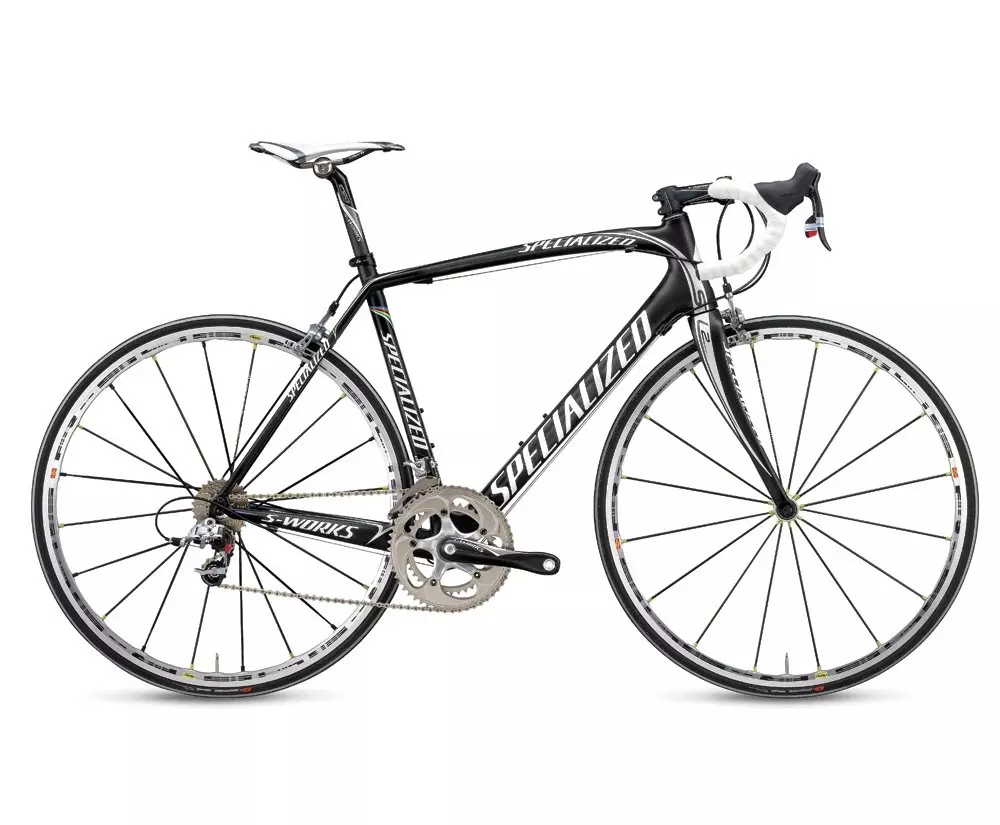

S-Works Tarmac SL2 SRAM
Part No.

S-Works Tarmac SL2 SRAM

Part No.  22697
load-spinner
S-Works Tarmac SL2 SRAM
Overview
Technical Specifications
Geometry
Reviews
FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter and stiffer.
  • The S-Works FACT carbon crankset provides incredible pedaling efficiency, and mates perfectly with the oversized BB of the S-Works Tarmac SL2 frame.
  • The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.
  • The scientifically proven Body Geometry Toupé, with carbon reinforced base and hollow Ti rails, is easy on your soft parts.
  • The S-Works SL FACT carbon handlebar is stiff, strong, and light weight.
  • The S-Works SL FACT carbon seatpost features an integrated Zertz insert for a seatpost that's light and stiff, but forgiving.
  • The S-Works Tarmac SL2 features our top-of-the-line, superlight and strong 11r carbon, with our FACT IS construction and an oversized bottom bracket for a super-efficient frame that simply exudes speed.
  • The S-Works Pro-Set stem uses a carbon-wrapped top cap and front cap with Ti front bolts—light, but with no strength penalty.

Technical Specifications

DRIVETRAIN
CHAIN SRAM 1090R, 10-speed
BOTTOM BRACKET S-Works oversize integrated
CRANKSET S-Works FACT carbon, integrated oversize design
FRONT DERAILLEUR SRAM Red, braze-on clamp
SHIFT LEVERS SRAM Red Double Tap
CASSETTE SRAM OG 1090, 10-speed 11-28t
CHAINRINGS 53 x 39t
REAR DERAILLEUR SRAM Red
WHEELS
FRONT HUB Mavic Ksyrium SL
REAR HUB Mavic Ksyrium SL
INNER TUBES Specialized Turbo presta tube
SPOKES Zicral, bladed
FRONT TIRE S-Works Mondo Open Tubular, 700x23c 290TPI w/ Aramid bead
RIMS Mavic Ksyrium SL
REAR TIRE S-Works Mondo Open Tubular, 700x23c 290TPI w/ Aramid bead
COCKPIT
SADDLE Body Geometry Toupé, super light foam, carbon reinforced base, hollow Ti rails
TAPE Body Geometry Bar Phat, cork ribbon w/ neoprene padding
SEATPOST S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
STEM S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable
HANDLEBARS S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm
BRAKES
FRONT BRAKE SRAM Red
BRAKE LEVERS SRAM Red Double Tap
REAR BRAKE SRAM Red
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap
FRAMESET
HEADSET S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER S-Works CNC alloy, 32.6mm
FORK S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
FRAME S-Works FACT 11r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing, OS BB

Geometry

Geometry Chart

Tarmac - Geometry

  49 54 56 61
Handle-Bar Width 350mm 350mm 350mm 350mm
Reach 518mm 548mm 565mm 582mm
Wheelbase 420mm 420mm 420mm 440mm
Stack 460mm 510mm 530mm 580mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 410mm
Head-Tube Length 170mm 172.5mm 172.5mm 175mm
Ground-Top 71.5mm 69mm 69mm 67.5mm
Top-Tube Length, Horizontal 74mm 73.5mm 73.25mm 72.5mm
Front-Center 120mm 145mm 170mm 230mm
Head-Tube Angle 576° 583° 591° 605°
Fork Rake 970mm 978mm 986mm 1003mm
Trail 730mm 777mm 800mm 833mm
Stand-Over Height 90mm 110mm 120mm 120mm
Chain-Stay Length 45mm 45mm 43mm 43mm
Seat-Tube Angle 62° 57° 56° 56°
B-B Drop 73mm 73mm 73.5mm 73.5mm
