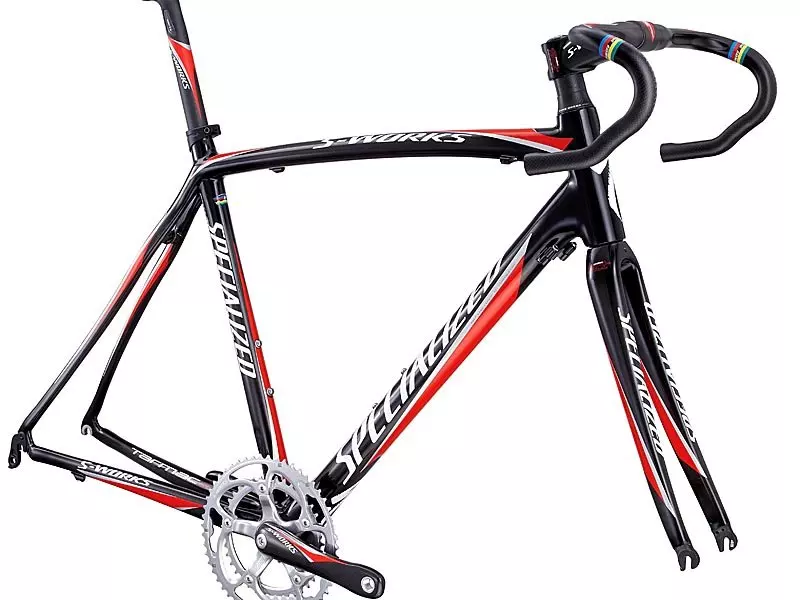

S-Works Tarmac SL Module
Overview
Technical Specifications
Geometry
Reviews
Competitive Road Our feathery FACT carbon Tarmac is so light and quick, the finish line will barely know it's being crossed. There might not even be a finish line in your race, simply staying a tire length or two in front of your friends on a given day might be your mission. To do that you need a steed designed for raw speed and efficiency that's still light, sharp-handling and smooth-riding. Designed in cooperation with the Specialized-sponsored Gerolsteiner squad, our FACT carbon Tarmac is all that and more. The Tarmac will whisper to the scales and murmur sweet nothings to the finish line-wherever it might be.
  • S-Works FACT 10r carbon frame, Az1 construction, compact race design
  • S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer
  • S-Works SL seatpost, FACT carbon w/ Zertz insert, 27.2mm

Technical Specifications

DRIVETRAIN
CRANKSET Specialized S-Works FACT Carbon crankset, integrated oversized design
CHAINRINGS Compact 50x34t
COCKPIT
HANDLEBARS S-Works Barmac Wedge carbon bar/stem combo, superlight integrated carbon design, adjustable stem angle
FRAMESET
HEADSET S-Works Mindset, 1 1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER S-Works CNC'd alloy binder
FORK S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer
FRAME S-Works FACT 10r carbon, Az1 construction, compact race design

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Seatpost Length 300mm 350mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 400mm 420mm 420mm 440mm 440mm
Bottom Bracket Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Chainstay Length 405mm 405mm 405mm 405mm 407mm 410mm
Front Center 576mm 576mm 583mm 591mm 605mm 612mm
Seat Tube Angle 74° 75.5° 73.5° 73.25° 72.5° 73°
Rake 45mm 45mm 45mm 43mm 43mm 43mm
Head Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Head Tube Length 100mm 110mm 130mm 155mm 180mm 205mm
Top Tube Length (Horizontal) 518mm 537mm 548mm 565mm 582mm 600mm
Seat Tube Length, Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Standover Height 726mm 744mm 763mm 784mm 806mm 833mm
Trail 57mm 62mm 57mm 56mm 53mm 56mm
Seat Tube Length, Center to Center 410mm 440mm 460mm 480mm 500mm 530mm
Wheel Base 970mm 970mm 978mm 986mm 1003mm 1013mm
