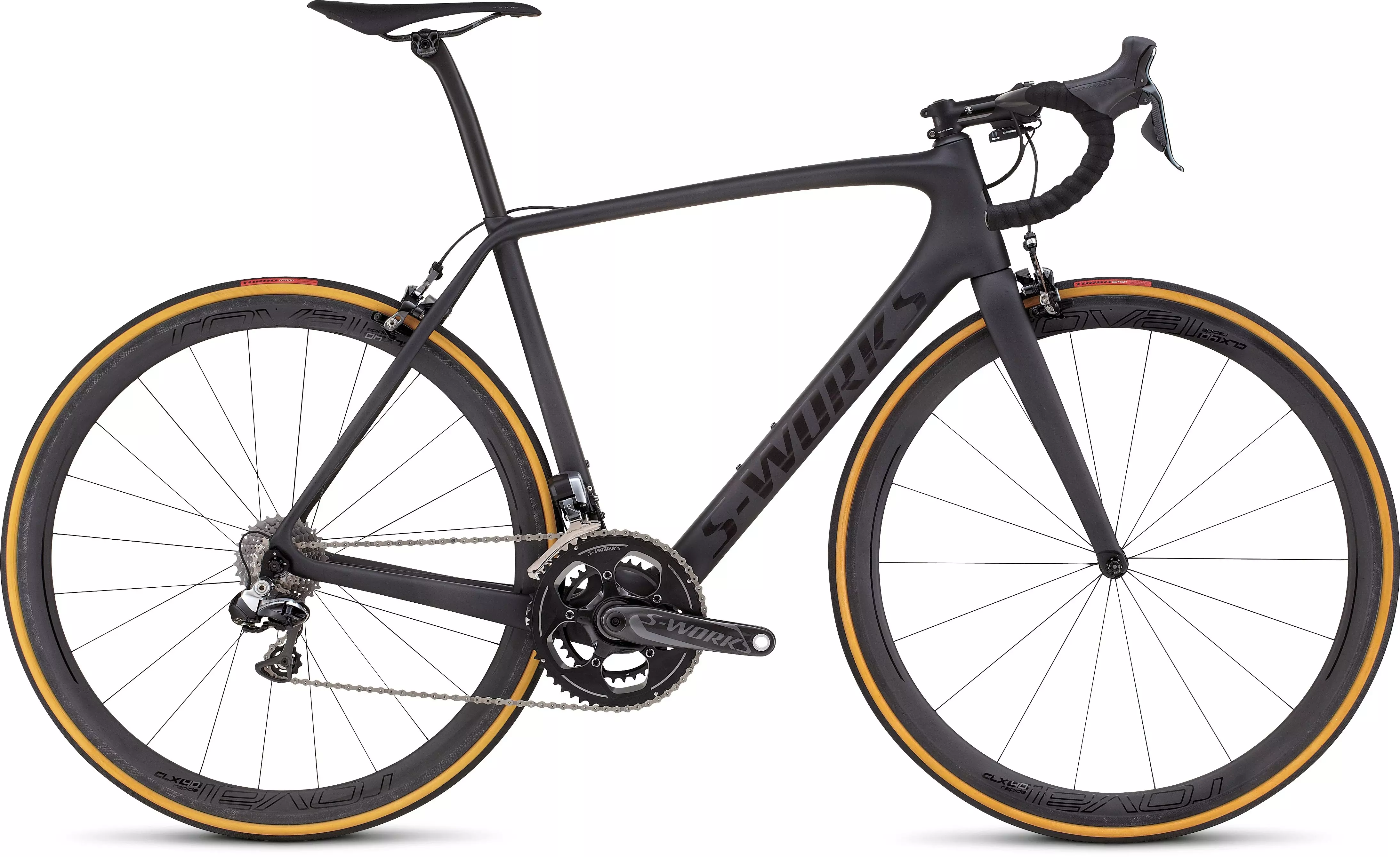

S-Works Tarmac Di2
$9,250.00
Part No.

S-Works Tarmac Di2

$9,250.00
Part No.  106244
load-spinner
S-Works Tarmac Di2
Overview
Technical Specifications
Geometry
Reviews
How good is the S-Works Tarmac Di2? In its first season, it won two Grand Tours and a World Championship—not too shabby. With its Rider-First Engineered™ design that ensures peak performance across every size frame, coupled with the legendary performance of the Dura-Ace Di2 11-speed build kit, it's no wonder that it's the bike of choice for riders like Vincenzo Nibali and Alberto Contador. If you're looking for the ultimate in complete road bike performance, look no further than the S-Works Tarmac Di2.
  • The Roval Rapide CLX 40 wheelset is the perfect balance of light weight and aerodynamics. It's stiff enough for sprinting, while its Ceramic Speed bearings keep things silky-smooth, making CLX 40 wheels the ultimate all-rounders.
  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary climbing responsiveness and descending prowess you'd expect from a Tarmac. The S-Works FACT 11r frameset is our highest quality carbon frame, offering the ideal blend of lightweight and targeted stiffness.
  • S-Works-specific FACT full carbon fork with tapered construction provides incredible front end stiffness and steering response for instantaneous accelerations and high-speed descents.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, integrated wedge
HEADSET 1-1/8"" upper, size-specific lower, stainless steel cartridge bearings, carbon top cap
FORK S-Works FACT carbon, full monocoque, size-specific taper
FRAME S-Works FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower head tube, compact race design, internal cable routing
DRIVETRAIN
CHAIN Shimano Dura-Ace, 11-speed
CRANKSET S-Works FACT carbon, 52/36T
CASSETTE Shimano Dura-Ace, 11-speed, 11-28t
SHIFT LEVERS Shimano Dura-Ace Di2, 11-speed
FRONT DERAILLEUR Shimano Dura-Ace Di2, 11-speed, braze-on
REAR DERAILLEUR Shimano Dura-Ace Di2, 11-speed
COCKPIT
SADDLE Body Geometry S-Works Toupé, carbon rails, 143mm
TAPE Specialized Roubaix
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm
HANDLEBARS S-Works Aerofly
STEM S-Works SL, alloy, 4-bolt, 6-degree rise
BRAKES
FRONT BRAKE Shimano Dura-Ace
REAR BRAKE Shimano Dura-Ace
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL Roval Rapide CLX 40
INNER TUBES Ultralight, Presta valve
FRONT TIRE Specialized Turbo Cotton, 320TPI, folding bead, BlackBelt protection, 700x24mm
REAR TIRE Specialized Turbo Cotton, 320TPI, folding bead, BlackBelt protection, 700x24mm
FRONT WHEEL Roval Rapide CLX 40

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm 400mm 400mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm
Stack 505mm 526mm 543mm 564mm 591mm 612mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Bike Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Fork Rake/Offset 45mm 45mm 45mm 43mm 43mm 43mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 62mm 57mm 57mm 56mm 56mm 53mm
B-B Height 270mm 270mm 272.5mm 272.5mm 274mm 274mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Tube Length 431mm 462mm 481mm 501mm 522mm 553mm
Top-Tube Length (horizontal) 518mm 537mm 548mm 565mm 582mm 600mm
