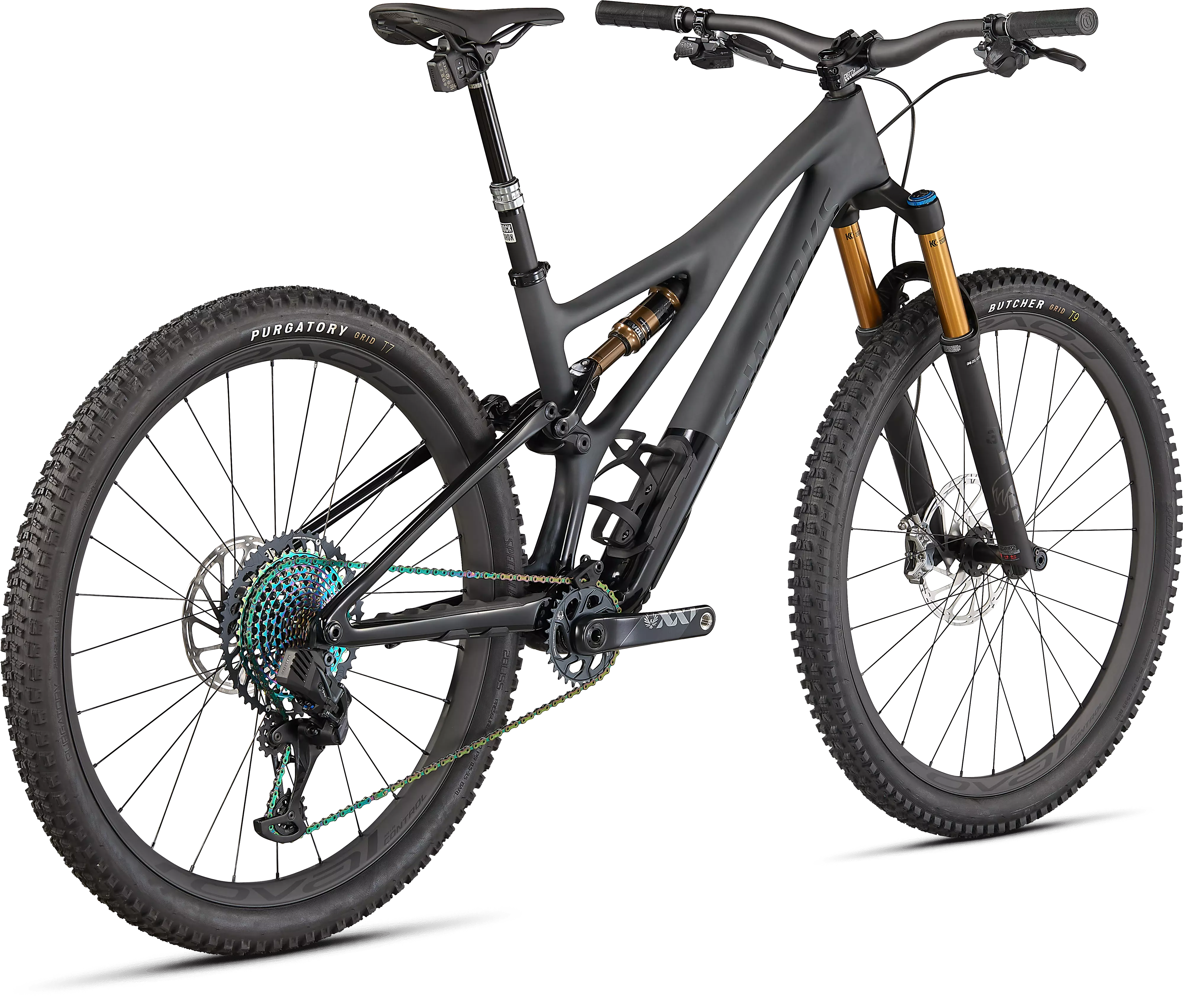

S-Works Stumpjumper

S-Works Stumpjumper

We deliver! Just say when and how.

When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.

As with all of our S-Works bikes, the S-Works Stumpjumper is dressed to impress. SRAM's XX1 Eagle AXS wireless electronic groupset handles shifting duties while FOX Factory suspension delivers a magic carpet-smooth ride.

Technical Specifications

Frameset

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

Fork

FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

Cockpit

Stem

Deity, 35.0mm Bore (S1-S2: 35mm length, S3-S6: 50mm length)

Handlebars

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

Grips

Deity, Knuckleduster, Black

Saddle

Bridge, 155/143mm, Hollow Ti-rails

SeatPost

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Brakes

Front Brake

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 180mm

Drivetrain

Rear Derailleur

SRAM XX1 Eagle AXS

Shift Levers

SRAM Eagle AXS Rocker Paddle

Cassette

Sram XG-1299, 12-Speed, 10-52t

Chain

SRAM XX1 Eagle

Crankset

SRAM XX1 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

Alloy, 30T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Wheels & Tires

Rims

Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready

Front Hub

DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h

Rear Hub

DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Spokes

DT Swiss Competition Race

Front Tire

Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3"

Rear Tire

Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

Standard, Presta Valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length35mm35mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm170mm
Stack (Low BB)614mm613mm622mm632mm641mm650mm
Stack (High BB)610mm609mm618mm627mm636mm646mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)415mm435mm455mm480mm505mm535mm
Headtube Length95mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)328mm333mm333mm333mm333mm333mm
BB Height (High BB)335mm340mm340mm340mm340mm340mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)123mm123mm123mm123mm123mm123mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center724mm746mm770mm800mm829mm863mm
Chainstay Length432mm432mm432mm432mm442mm442mm
Wheelbase1152mm1175mm1200mm1228mm1268mm1302mm
Top-tube Length (horizontal)563mm583mm605mm632mm660mm692mm
Bike Standover Height730mm734mm744mm749mm757mm757mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)76°76°76°76°76°76°
Seat Tube Angle (High BB)76.5°76.5°76.5°76.5°76.5°76.5°
Max Seatpost Insertion220mm220mm240mm260mm280mm300mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
