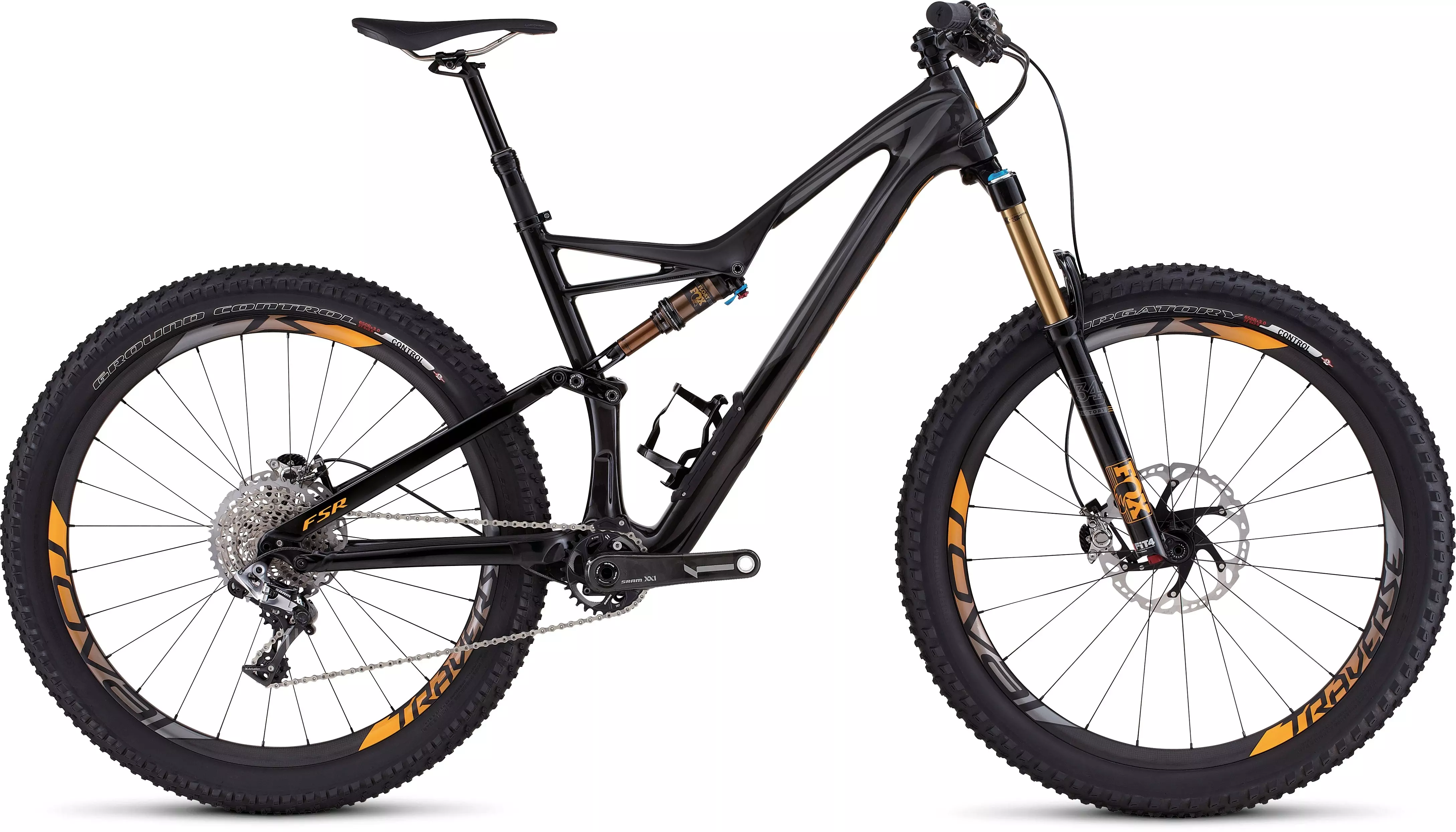

S-Works Stumpjumper FSR 6Fattie
$8,600.00
Part No.

S-Works Stumpjumper FSR 6Fattie

$8,600.00
Part No.  107079
load-spinner
S-Works Stumpjumper FSR 6Fattie
Overview
Technical Specifications
Geometry
Reviews
It can be easy to say that a bike is revolutionary—that it features all of the latest and greatest technology. Rarely, however, is a trail bike so far ahead of the pack that it leaves you scratching your head wondering, "How'd they do that?" Well, the S-Works Stumpjumper FSR Carbon 6Fattie is that bike. It features our FACT 9m carbon fiber for the bulk of the construction in order to provide an ultra-lightweight, strong, and stiff frame. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. Then there's our all-new 6Fattie Wheel System that takes 650b wheels and wraps them in 650bx3.0" tires to provide a drastic, life-changing level of traction, control, and floatation. Impressively, 6Fattie pulls this off without sacrificing anything to climbing prowess. And when you add-in an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, our proprietary Rx Trail Tune at the shock, and a build spec that spares no expense, you have a bike that, without a doubt, is going to change the way that you ride trail.
  • Command Post IRcc seatpost features 12 positions of up to 125mm of height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.
  • 650bx3.0" 6Fattie Ground Control tire features the perfect contact patch size to traction and floatation in the corners and while climbing.
  • 650bx3.0" 6Fattie Purgatory tire features a perfectly sized contact patch for life-changing levels of traction and floatation, all without sacrificing climbing efficiency or descending prowess .
  • FACT 9m carbon fiber Trail Chassis with Stumpjumper FSR 6Fattie M5 alloy rear end with 148mm spacing blends stiffness with light weight to form the pinnacle of efficiency, while 135mm of travel, fully enclosed cable routing, and integrated SWAT Door create exceptional handling and zero-hassle storage.
  • FOX 34 Plus Factory fork provides 150mm of trail-eating travel. It accepts 15mm thru-axles for added responsiveness and strength, while its three-position compression adjust puts out the perfect ride quality for every stage of the trail.
  • Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Factory DPS rear shock features 135mm of plush, adjustable suspension, while our Rx Trail Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single bolt, 34.9mm
HEADSET Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings
FRAME FACT 9m carbon, Trail 6Fattie Geometry, FACT IS carbon construction, M5 alloy rear triangle, SWAT Door integration, PF30 BB, fully enclosed internal cable routing, 148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
WHEELS
FRONT HUB Roval Traverse, 15x110mm thru-axle, 24h
REAR HUB Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XX1 XD driver body, 12x148mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Revolution
RIMS Roval Traverse SL 650b, carbon, disc, 30mm wide, 24/28h
FRONT TIRE Specialized 6Fattie Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0""
REAR TIRE Specialized 6Fattie Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-XX1, 11-speed, w/ PowerLink
CRANKSET SRAM XX1, carbon, 148mm-specific chain line, X-Sync 28T direct mount ring
CASSETTE SRAM XX1, 11-speed, 10-42t
SHIFT LEVERS SRAM XX1, 11-speed, trigger
REAR DERAILLEUR SRAM XX1, 11-speed
COCKPIT
SADDLE Body Geometry Henge Expert, hollow Ti rails, 143mm
SEATPOST Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized FACT carbon, 8-degree backsweep, 6-degree upsweep, 10mm rise, 750mm, 31.8mm
STEM Syntace F109, 6-degree rise
BRAKES
BRAKE LEVERS Shimano XTR, carbon blade, I-spec compatible
FRONT BRAKE Shimano XTR Trail, hydraulic disc, Ice-Tech metallic pads w/ fins
REAR BRAKE Shimano XTR Trail, hydraulic disc, Ice-Tech metallic pads w/ fins
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK FOX 34 Plus Factory, 150mm travel, 3-position compression adjust, tapered steerer, 51mm offset, 15mm thru-axle
REAR SHOCK FOX FLOAT Factory DPS, AUTOSAG, Rx Trail Tune, Kashima coating, 197x47.6mm

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Stem Length 45mm 60mm 60mm 60mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 390mm 430mm 430mm 430mm
Handlebar Width 750mm 750mm 750mm 750mm
Reach 386mm 413mm 431mm 457mm
Stack 618mm 618mm 646mm 664mm
Wheelbase 1122mm 1149mm 1179mm 1212mm
Bike Stand-Over Height 754mm 761mm 770mm 777mm
Head-Tube Length 95mm 95mm 125mm 145mm
Front-Center 687mm 714mm 744mm 777mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Head-Tube Angle 67° 67° 67° 67°
Trail 96.5mm 96.5mm 96.5mm 96.5mm
B-B Height 331mm 331mm 331mm 331mm
Chain-Stay Length 437mm 437mm 437mm 437mm
Fork Length (full) 560mm 560mm 560mm 560mm
Seat-Tube Angle 74° 74° 74° 74°
B-B Drop 33mm 33mm 33mm 33mm
Seat-Tube Length 396mm 430mm 468mm 523mm
Top-Tube Length (horizontal) 563mm 590mm 616mm 648mm
