S-Works Stumpjumper Frame

Icon

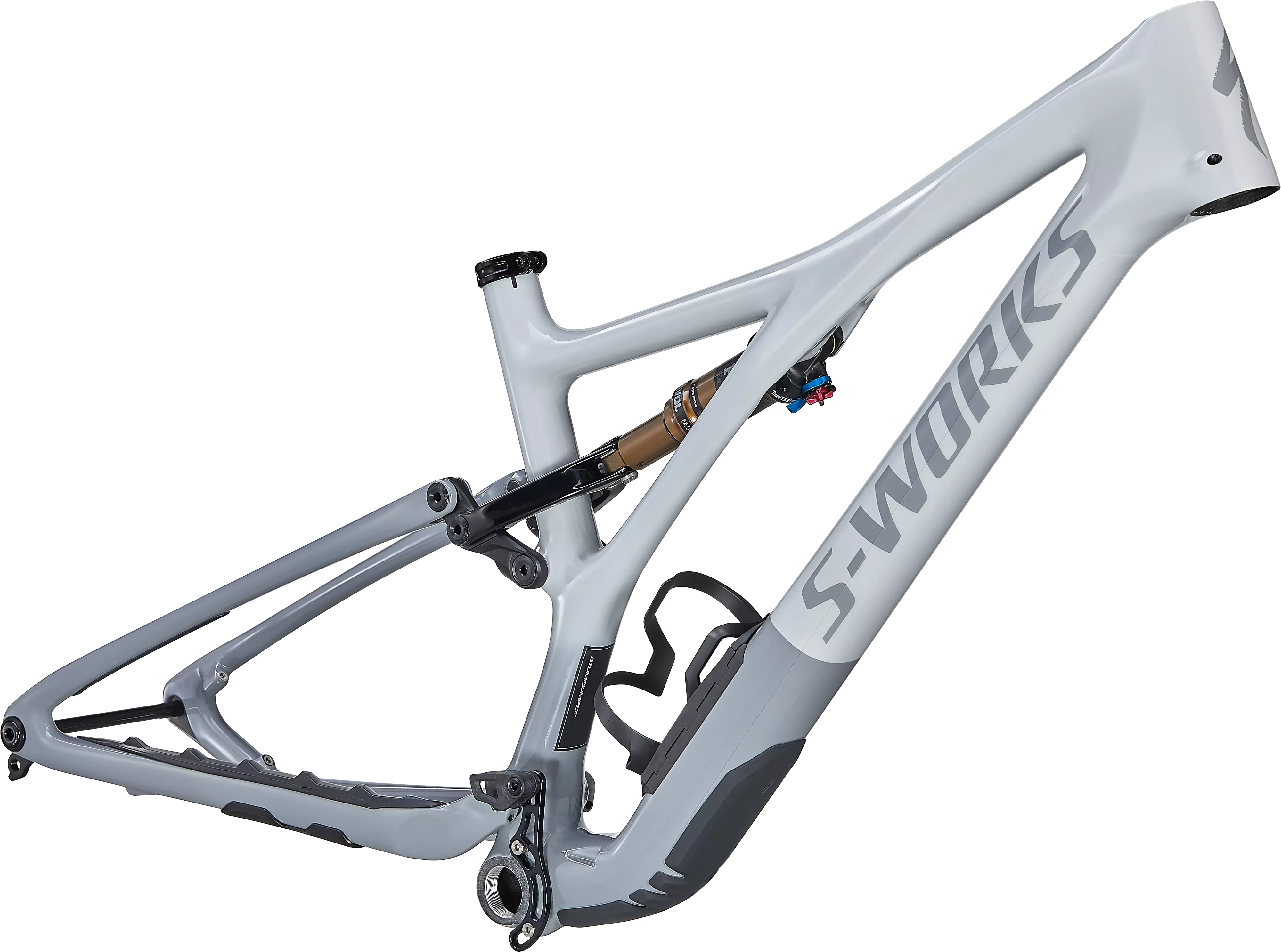

2021 S-Works Stumpjumper Frame

When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.

The S-Works Stumpjumper frame is the perfect starting point for you to envision your own interpretation of the Ultimate Trail Bike. Start with our supremely light, incredibly strong, FACT 11m carbon frame. Then dress it to suit your needs, whether those needs be singletrack soul surfing or death-grip mayhem.

Technical Specifications

Add Icon

Frameset

SWAT

SWAT™ Door integration

Frame

FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6

Suspension

Rear Shock

FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S1S2S3S4S5S6
Stack (Low BB)614mm613mm622mm632mm641mm650mm
Stack (High BB)610mm609mm618mm627mm636mm646mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)415mm435mm455mm480mm505mm535mm
Headtube Length95mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)328mm333mm333mm333mm333mm333mm
BB Height (High BB)335mm340mm340mm340mm340mm340mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)123mm123mm123mm123mm123mm123mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center724mm746mm770mm800mm829mm863mm
Chainstay Length432mm432mm432mm432mm442mm442mm
Wheelbase1152mm1175mm1200mm1228mm1268mm1302mm
Top-tube Length (horizontal)563mm583mm605mm632mm660mm692mm
Bike Standover Height730mm734mm744mm749mm757mm757mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)76°76°76°76°76°76°
Seat Tube Angle (High BB)76.5°76.5°76.5°76.5°76.5°76.5°
Max Seatpost Insertion220mm220mm240mm260mm280mm300mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
