S-Works Stumpjumper EVO

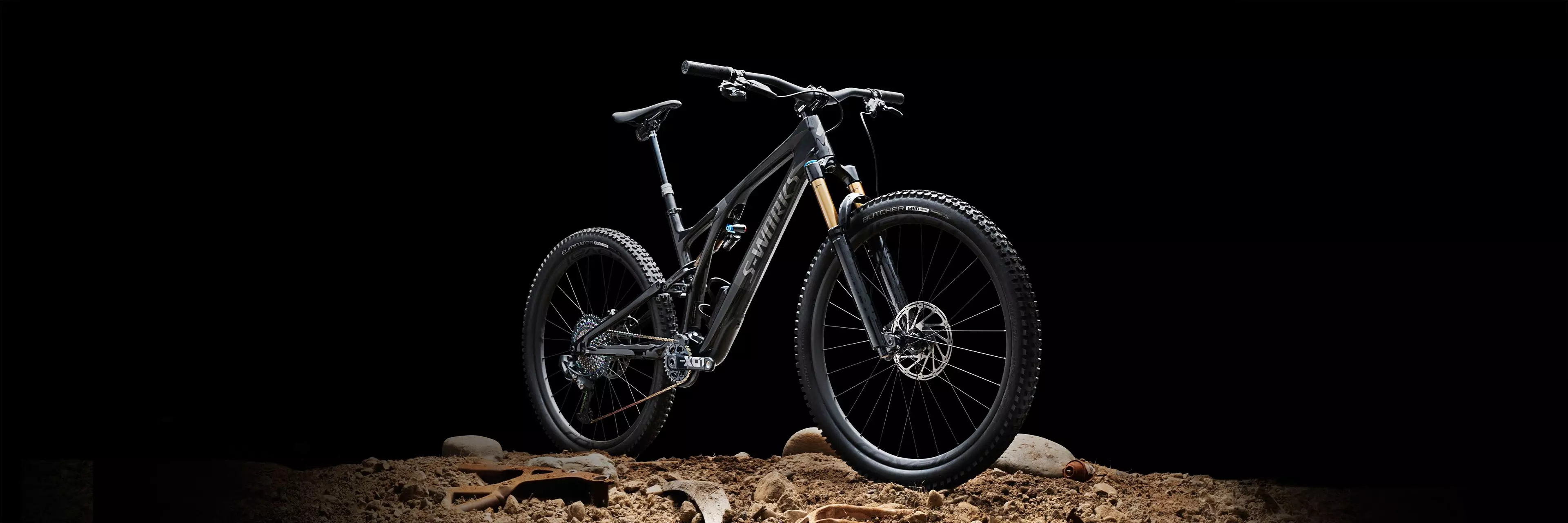

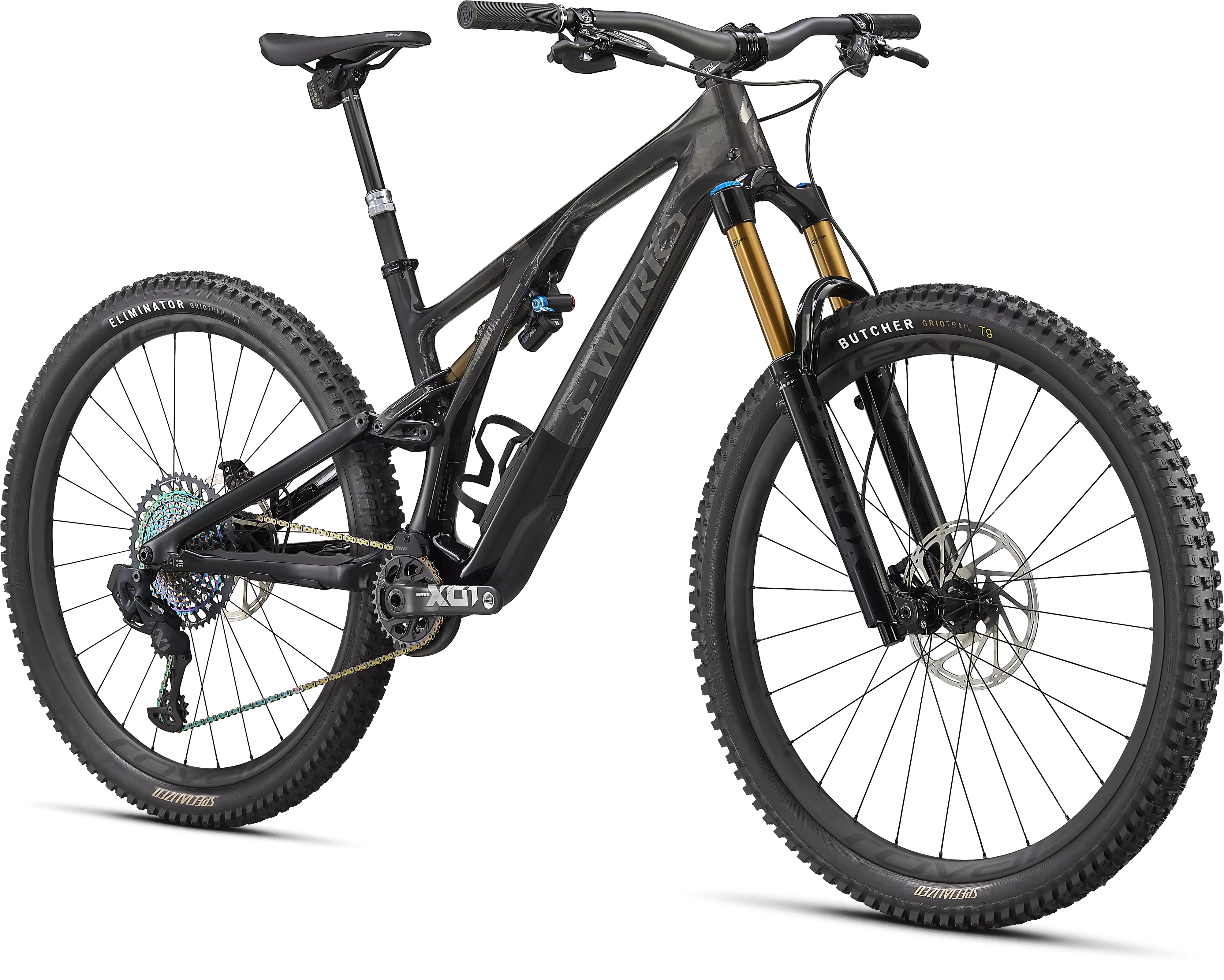

2021 S-Works Stumpjumper EVO
The S-Works Stumpjumper EVO is much more than just a trail bike, it’s a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptability of S-Sizing, this thing is an absolute ripper. The S-Works Stumpjumper EVO—get rowdy.
In true S-Works fashion, the S-Works Stumpjumper EVO is built to the hilt. A Fox Factory fork and rear shock handle suspension duties, while SRAM Code RSC four-piston brakes scrub speed, and a full SRAM AXS wireless groupset completes this lust-worthy build.
Technical Specifications
FRAMESET
SWAT
Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
Frame
FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Seat Binder
Alloy, 38.6
Suspension
Rear Shock
FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, S1:210x50mm, S2-S6:210x55mm
Fork
FOX FLOAT 36 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
DRIVETRAIN
Chainrings
30T
Crankset
SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Chain
SRAM XX1, 12 speed
Bottom Bracket
SRAM DUB, BSA 73mm, threaded
Shift Levers
SRAM XX1 Eagle AXS
Rear Derailleur
SRAM XX1 Eagle AXS
Cassette
SRAM XG-1299 Eagle, 10-52t
WHEELS
Rims
Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
Inner Tubes
Standard, Presta valve
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
Spokes
DT Competition Race
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Hub
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
BRAKES
Rear Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
COCKPIT

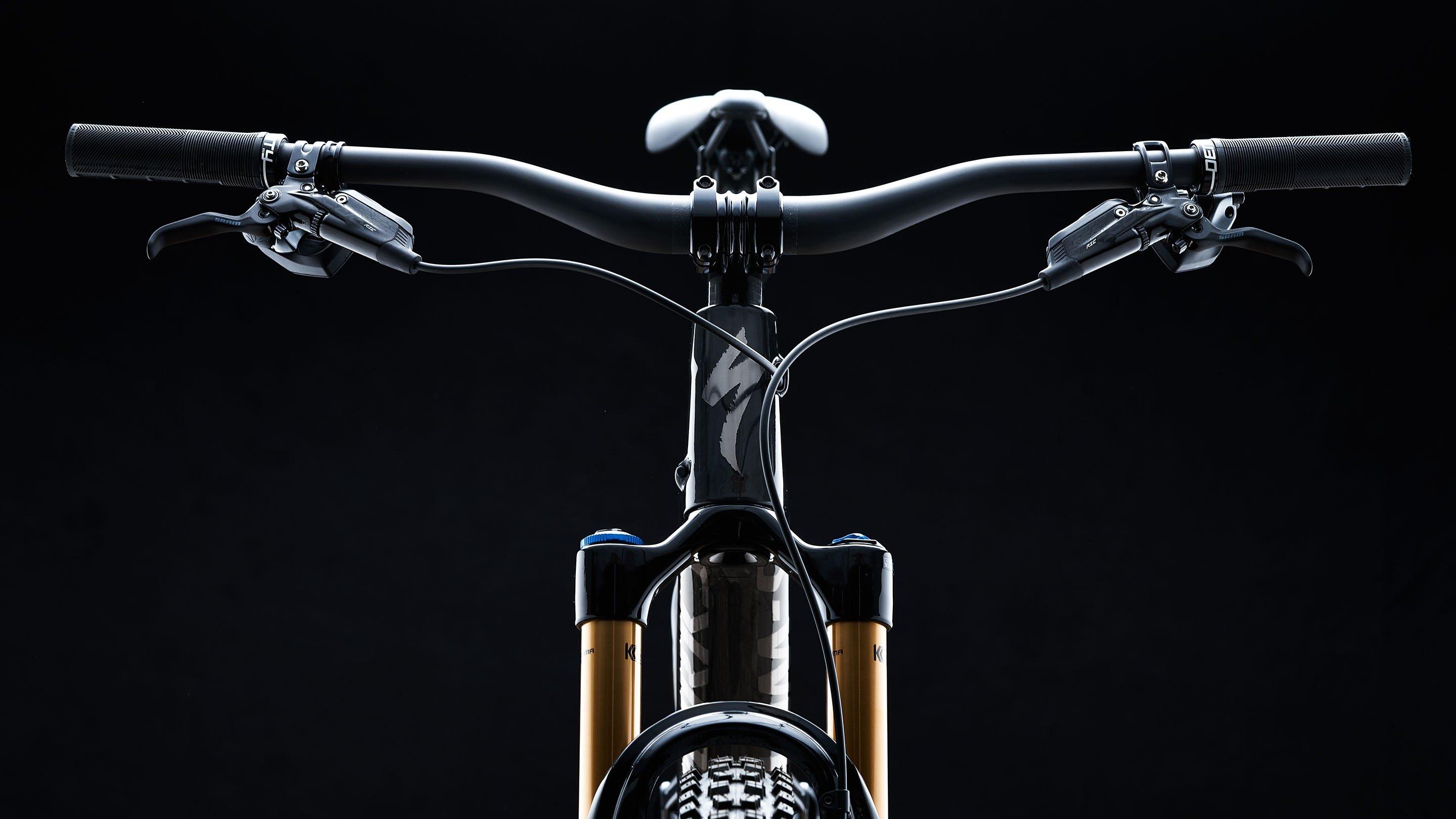

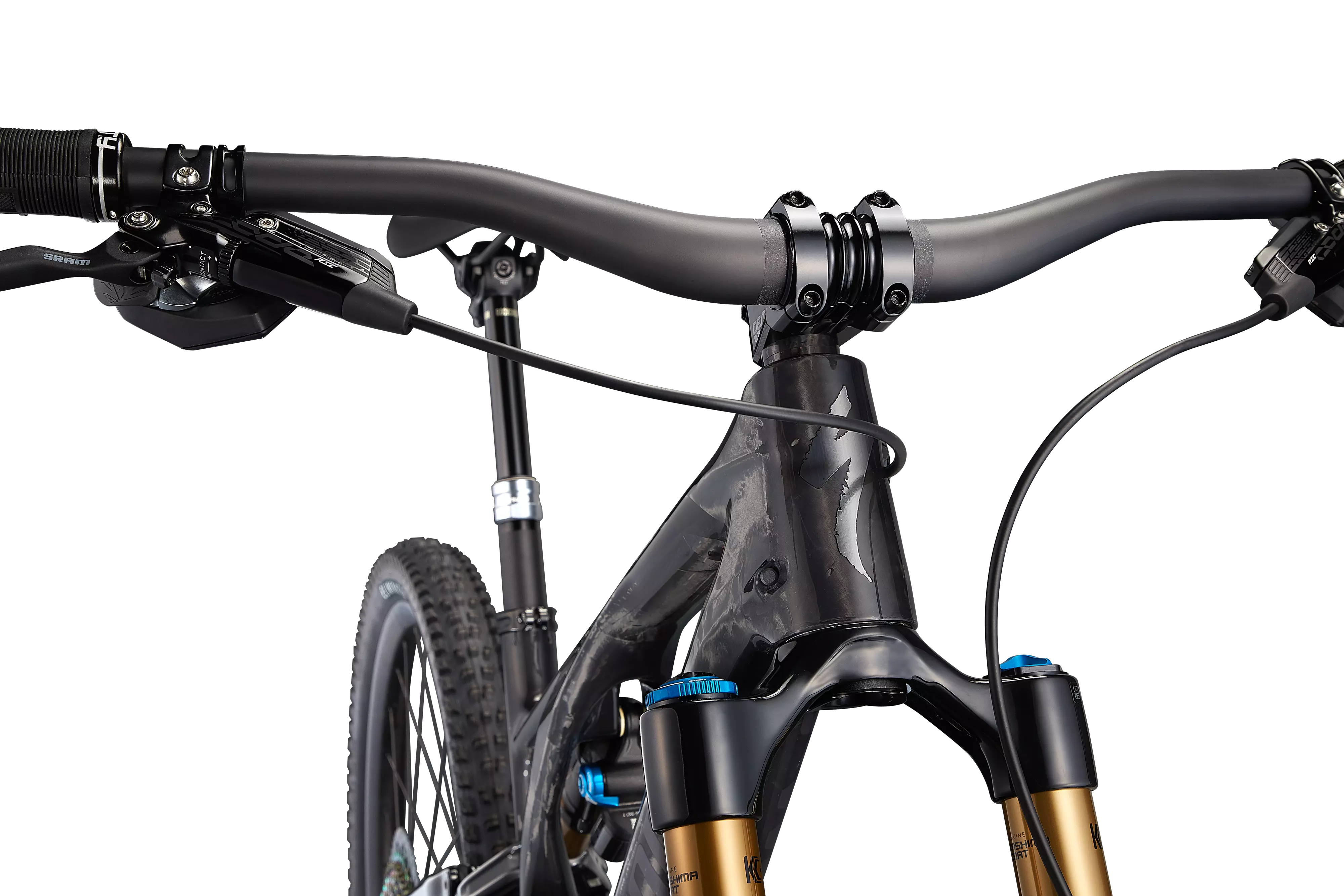

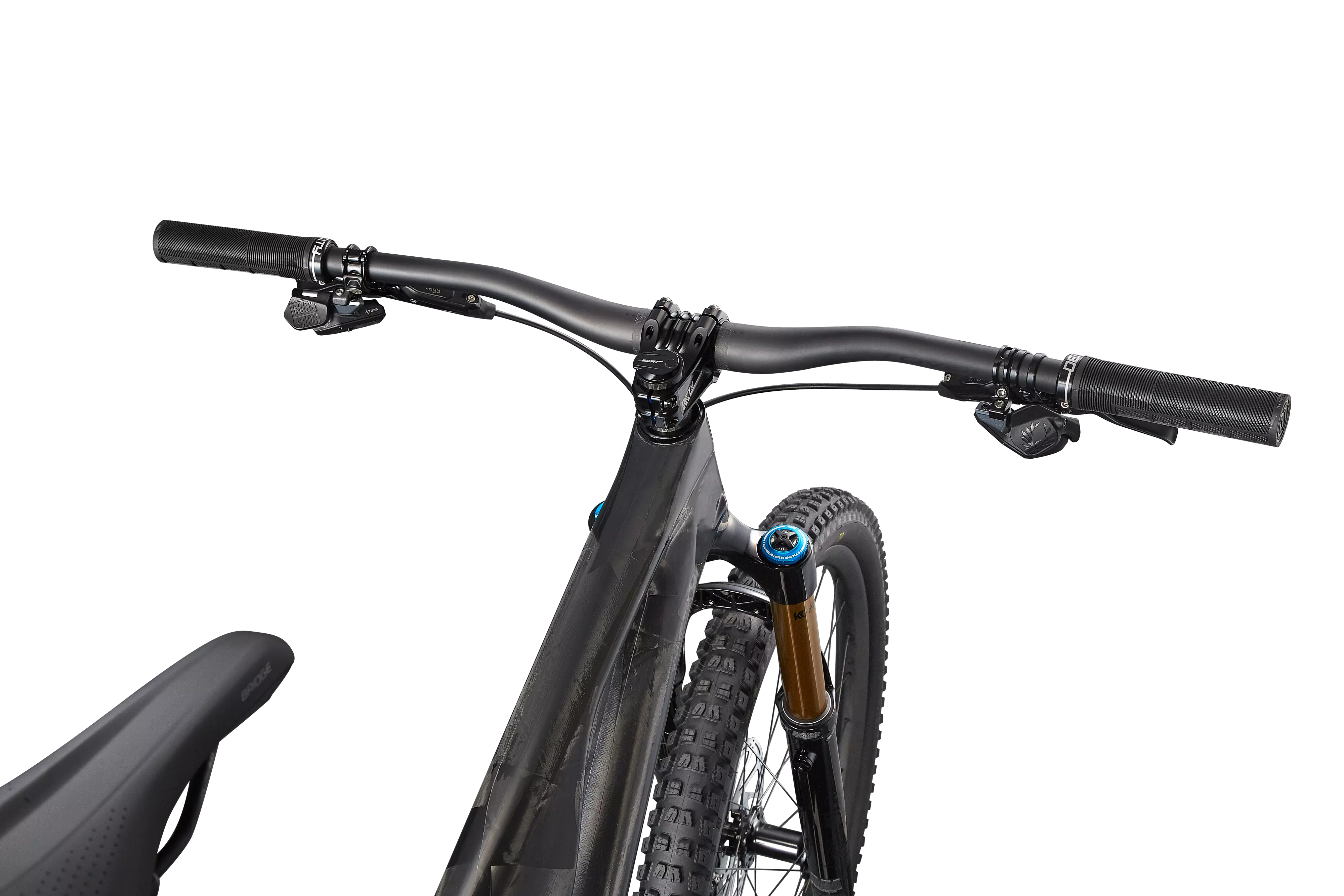

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Stem
Deity, 35.0mm
Grips
Deity, Knuckleduster, Black
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm | 175mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 35mm | 35mm | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100 mm | 125 mm | 150 mm | 170 mm | 170 mm | 170 mm |
| Stack | 613mm | 617mm | 626mm | 635mm | 644mm | 654mm |
| Reach | 408mm | 428mm | 448mm | 475mm | 498mm | 528mm |
| BB Height | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
| BB Drop | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Trail | 131mm | 131mm | 131mm | 131mm | 131mm | 131mm |
| Fork Length (full) | 561mm | 571mm | 571mm | 571mm | 571mm | 571mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 732mm | 756mm | 780mm | 809mm | 838mm | 873mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm | 448mm | 448mm |
| Wheelbase | 1167mm | 1191mm | 1216mm | 1247mm | 1285mm | 1319mm |
| Bike Standover Height | 733mm | 764mm | 763mm | 762mm | 767mm | 770mm |
| Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 78° | 77.6° | 77.2° | 76.9° | 77° | 77° |
