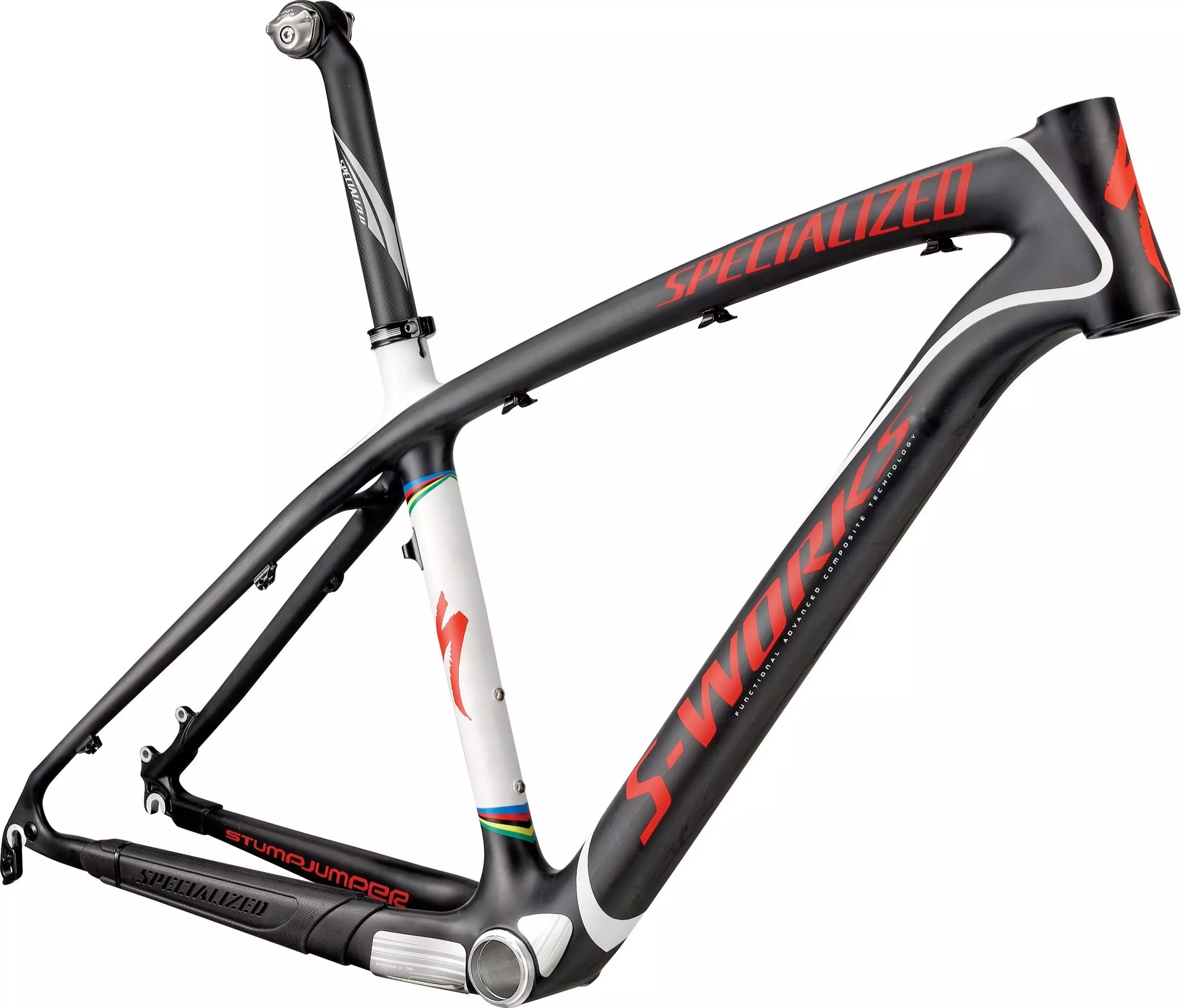

S-Works Stumpjumper Carbon HT Frame
Technical Specifications
With enough years of experience under its belt to merit a podium finish every time, the Stumpjumper Hardtail is second only to its S-Works sibling when it comes to cross-country speed. Like the riders who hammer it, the Stumpjumper HT is lean, strong and exceedingly efficient, with an incredibly lightweight, high performance frame and spec combination. Now available in dedicated singlespeed and multi-speed models, with a full range of 26" and 29" versions.
  • S-Works carbon single-bolt 30.9mm seatpost takes this already featherweight package to its absolute minimum
  • Light and lean S-Works Stumpjumper HT FACT 10m carbon frame brings its best to the mountain with a stiff, tapered head tube, carbon drive-side dropout and oversized bottom bracket for unsurpassed strength

Technical Specifications

BOTTOM BRACKET Custom Shimano BB-91, OS, press-in bearing
SEATPOST S-Works Carbon, 30.9mm, single-bolt head, 15.5/17/18: 350mm, others: 400mm
HEADSET 1-1/8 - 1 1/2"" Threadless, Campy style upper and lower cartridge bearing for tapered HT and steer
SEAT BINDER 36.9mm clamp, one bolt for carbon frame/post
FRAME FACT 10M carbon, 1.5 - 1 1/8"" tapered HT, alloy replaceable derailleur hanger, carbon drive-side dropout


Geometry Chart

- Geometry

  15.5 17 18 19 21
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 75mm 90mm 90mm 105mm 105mm
Seatpost Length 300mm 350mm 350mm 400mm 400mm
Handlebar Width 600mm 600mm 600mm 600mm 600mm
Reach 378mm 405mm 420mm 432mm 451mm
Stack 579mm 589mm 589mm 598mm 617mm
Chainstay Length 424mm 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 534mm 561mm 574mm 590mm 617mm
Ground-Top 880mm 890mm 890mm 899mm 918mm
Top Tube Length (Horizontal) 555mm 585mm 600mm 615mm 640mm
Head Tube Angle - Low Setting 71° 71° 71° 71° 71°
Standover Height 761mm 782mm 793mm 810mm 843mm
Head Tube Height 125mm 135mm 135mm 145mm 165mm
Wheel Base 1028mm 1058mm 1073mm 1089mm 1115mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73° 73°
Seat Tube Length - Center to Top 394mm 432mm 457mm 483mm 533mm
Bottom Bracket Height - Low Setting 301mm 301mm 301mm 301mm 301mm
