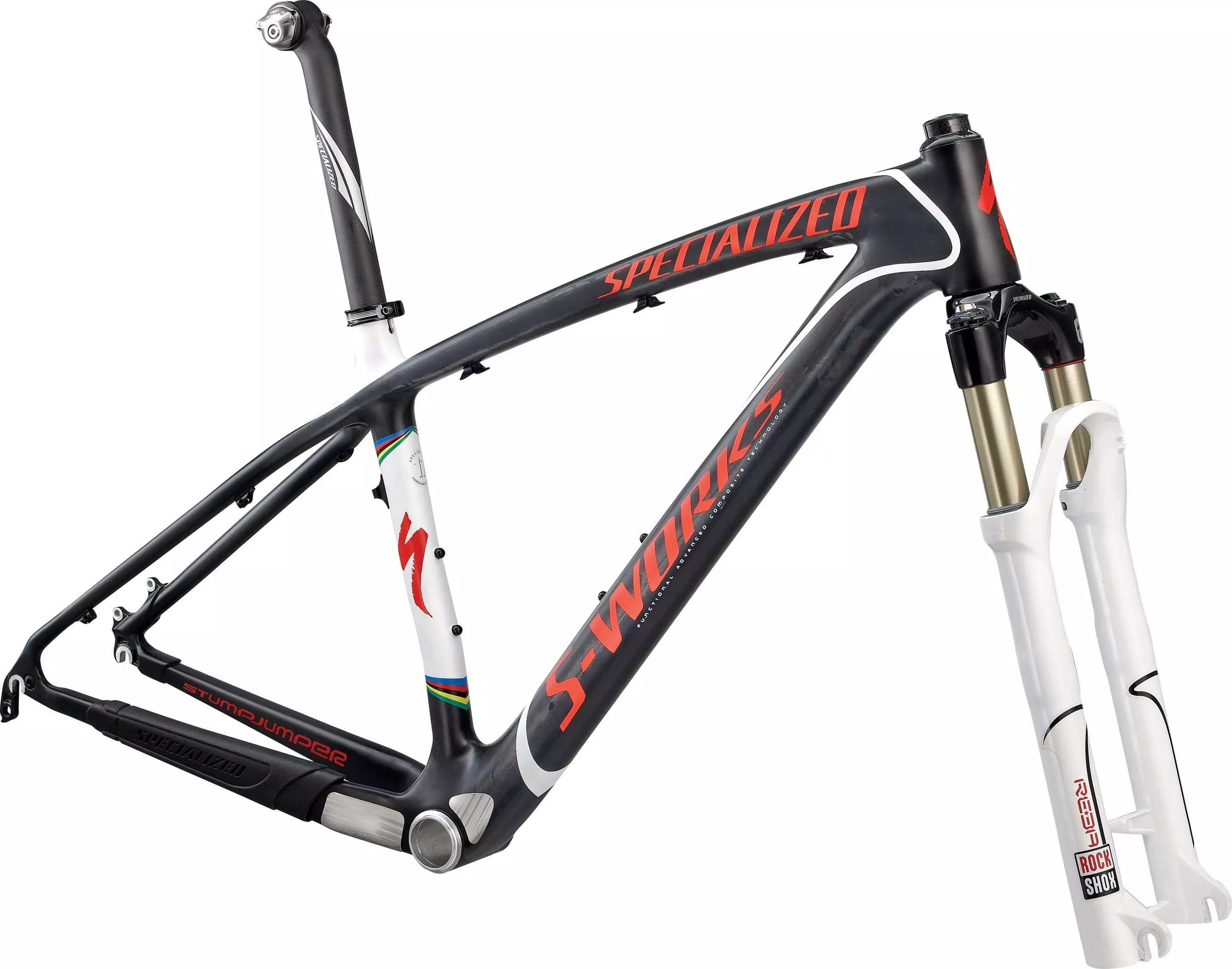

S-Works Stumpjumper Carbon HT 29er Frameset
2010 S-Works Stumpjumper Carbon HT 29er Frameset
Technical Specifications
FRAMESET
FRAME
FACT 10M carbon, 29"" geometry, 1.5 - 1/8"" tapered HT, alloy replaceable derailleur hanger, carbon drive-side dropout
HEADSET
1-1/8"" Threadless, 1 1/2"" lower, Campy style
SEAT BINDER
36.9mm clamp, one bolt for carbon frame/post
SUSPENSION
FORK
Custom SBC/RockShox Reba S29 Carbon, 90mm travel, One-piece tapered carbon crown/steeer tube, Rockshox Reba Team lower, titanium motion control damper, L/O w/floodgate adjust.
DRIVETRAIN
BOTTOM BRACKET
Custom Shimano BB-91, OS, press-in bearing
COCKPIT
SEATPOST
S-Works Carbon, 30.9mm, single-bolt head, 17.5: 350mm, others: 400mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 17.5 | 19 | 21 | |
|---|---|---|---|
| Ground-Top | 925mm | 935mm | 945mm |
| Bottom Bracket Height - Low Setting | 304mm | 304mm | 304mm |
| Top Tube Length (Horizontal) | 592mm | 615mm | 640mm |
| Head Tube Height | 110mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 71.5° | 71.5° | 71.5° |
| Seat Tube Angle (Actual) - Low Setting | 72° | 72° | 72° |
| Seat Tube Angle (Effective) - Low Setting | 73.5° | 73.5° | 73.5° |
| Top Tube Length (Actual) | 565mm | 590mm | 614mm |
| Seat Tube Length - Center to Top | 445mm | 483mm | 533mm |
| Wheel Base | 1074mm | 1106mm | 1132mm |
| Standover Height | 780mm | 818mm | 855mm |
| Stack | 621mm | 631mm | 641mm |
| Reach | 408mm | 433mm | 456mm |
| Chainstay Length | 436mm | 436mm | 436mm |
| Crank Length | 175mm | 175mm | 175mm |
| Handlebar Width | 600mm | 600mm | 600mm |
| Stem Length | 90mm | 105mm | 105mm |
